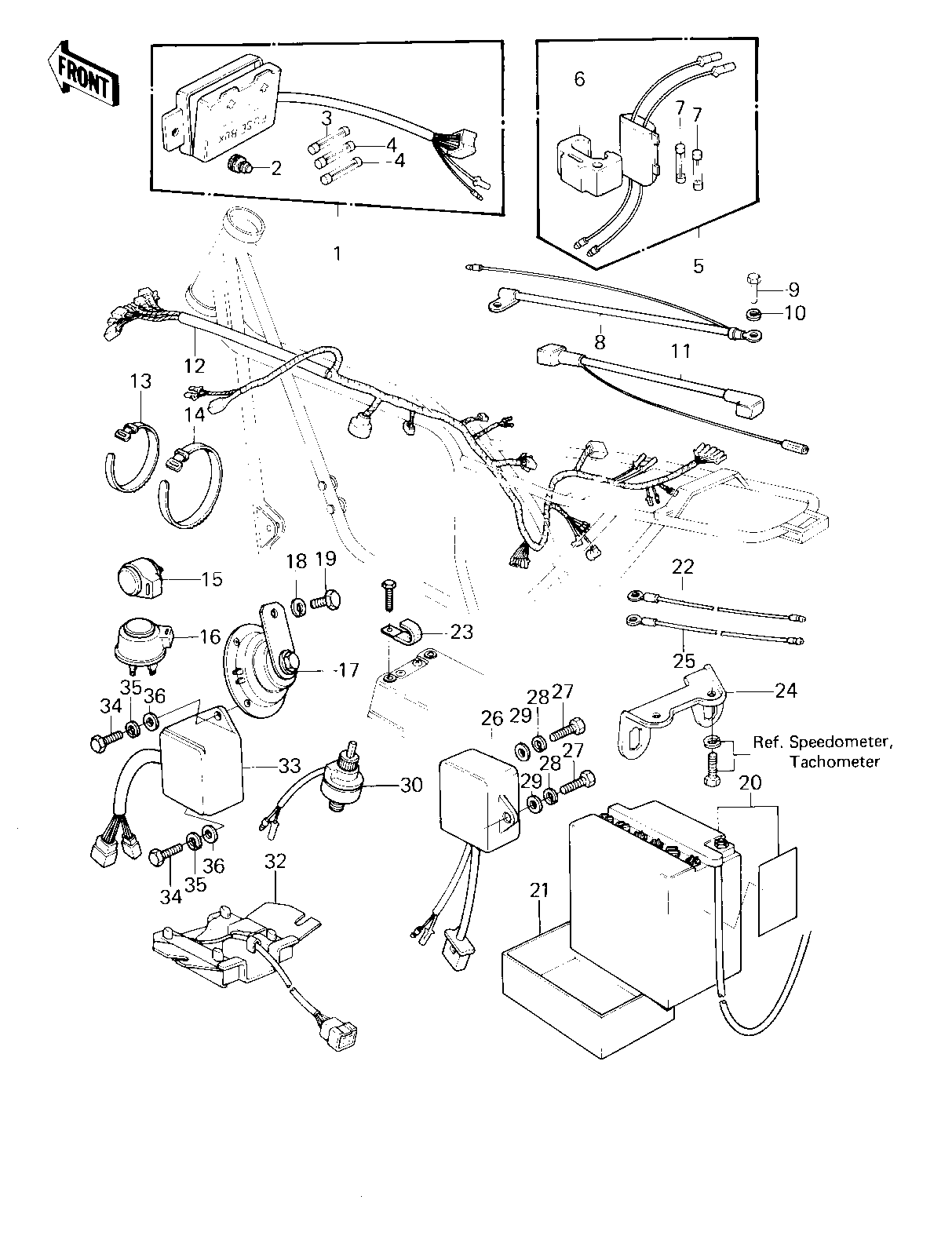

1980 Z1R - CHASSIS ELECTRICAL EQUIPMENT ('80 D3)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FUSE ASSY | 1 | 26004-1006 | 1 | ||
DAMPER RUBBER,FUSE | 2 | 92075-279 | 1 | ||
FUSE-20A | 3 | 26006-005 | 2 | L = 25 M/M | |
FUSE 10A | 4 | 26006-003 | 3 | L = 25 M/M | |
FUSE ASSY | 5 | 26004-1003 | 1 | ||
DAMPER RUBBER | 6 | 92075-1044 | 1 | ||
FUSE 2A, | 7 | 26006-1001 | 3 | L = 30 M/M | |
WIRE,BATTERY GROUND | 8 | 26010-054 | 1 | ||
BOLT,HEX HEAD,6MM | 9 | 92001-137 | 1 | ||
WASHER SPRING 6MM | 10 | 461F0600 | 1 | ||
WIRE,STARTER LEAD | 11 | 26011-1018 | 1 | ||
WIRING HARNESS,MAIN | 12 | 26001-1056 | 1 | ||
BAND,SHORT | 13 | 92072-030 | 4 | L = 123 M/M | |
BAND,WIRING HARNESS | 14 | 92072-056 | 7 | L = 186 M/M | |
RELAY-TURN SIGNAL | 15 | 27002-011 | 1 | ||
RELAY,TURN SIGNAL | 16 | 27002-016 | 1 | ||
HORN | 17 | 27003-1006 | 1 | ||
WASHER SPRING 8MM | 18 | 461F0800 | 1 | ||
BOLT-SMALL-UPSET,8X1 | 19 | 115G0816 | 1 | ||
YUA BAT YB14L-A2 | 20 | 26012-1008 | 1 | YB-14 | |
CASE,BATTERY | 21 | 32099-015 | 1 | ||
LEAD WIRE,SIGNAL LAM | 22 | 26011-063 | 2 | FRONT | |
CLAMP,WIRING HARNESS | 23 | 92037-1069 | 1 | ||
BRACKET | 24 | 11034-1149 | 1 | ||
WIRE,LEAD | 25 | 26011-095 | 2 | REAR | |
SWITCH,TURN SIGNAL O | 26 | 27010-1016 | 1 | ||
BOLT-UPSET,6X20 | 27 | 112G0620 | 2 | ||
WASHER SPRING 6MM | 28 | 461F0600 | 2 | ||
WASHER PLAIN 6MM | 29 | 411B0600 | 2 | ||
SWITCH,COMBINATION | 30 | 27010-1017 | 1 | ||
LABEL-WARNING,BATTER | 31 | 56040-1036 | 1 | ||
RESISTOR | 32 | 28018-1012 | 1 | ||
SWITCH,RESERVE LAMP | 33 | 27010-1007 | 2 | ||
BOLT-UPSET,6X16 | 34 | 112G0616 | 2 | ||
WASHER SPRING 6MM | 35 | 461F0600 | 2 | ||
WASHER PLAIN 6MM | 36 | 411B0600 | 2 |
