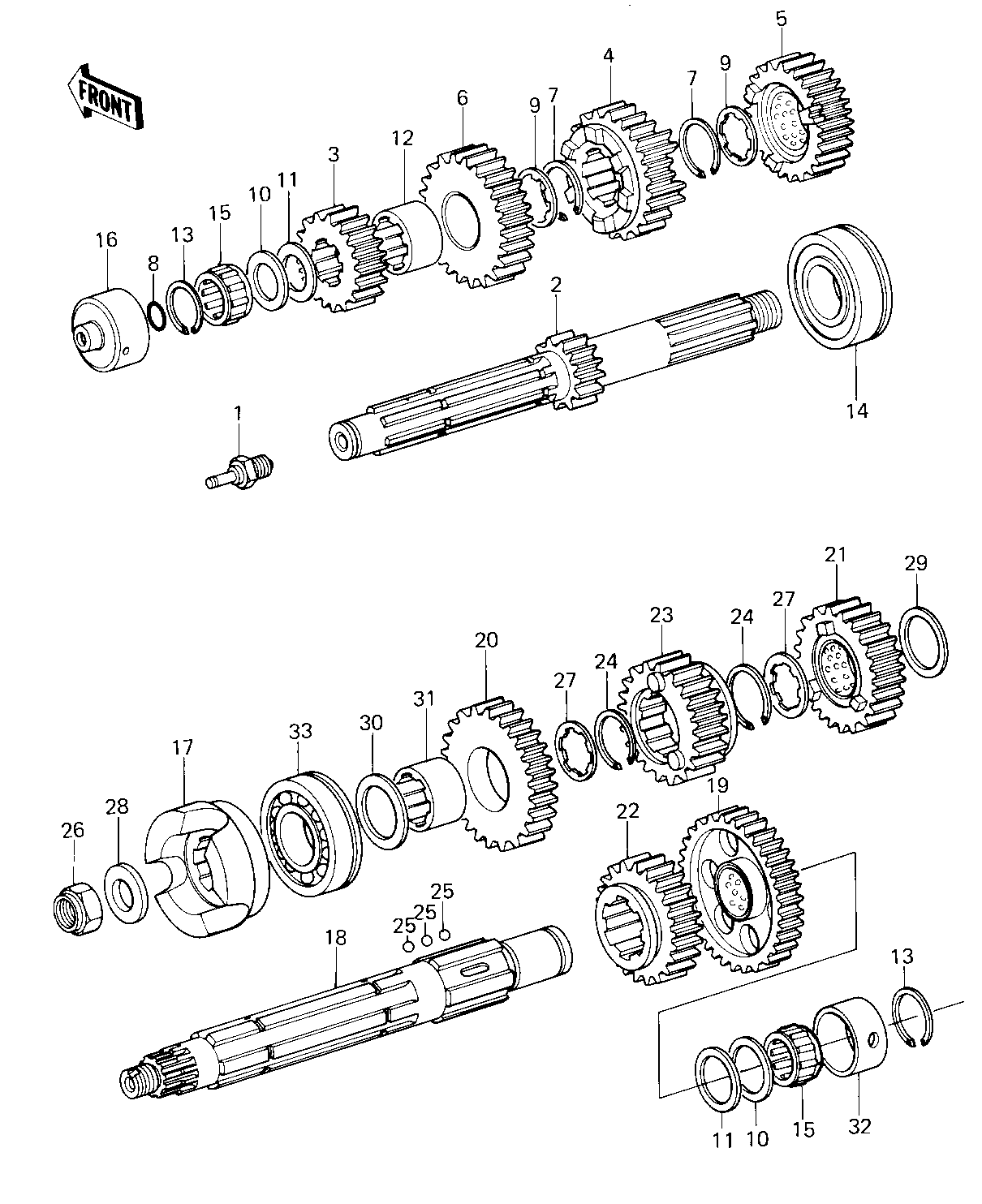

1979 Shaft - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH,NEUTRAL 1 13151-5002 1
SHAFT,DRIVE 2 13127-1012 1 12T
2ND GER,DRIVE SHAFT 3 13130-032 1 16T
3RD GEAR,DRIVE SHAFT 4 13132-030 1 21T
4TH GEAR,DRIVE SHAFT 5 13134-016 1 21T
TOP GEAR,DRIVE SHAFT 6 13136-042 1 23T
CIRCLIP 28MM 7 480J2800 2
"O" RING,8MM 8 670B1508 1
WASHER,LOCK (O.D=35) 9 92022-1077 2
WASHER,PLAIN,22MM 10 92022-212 2 1.6T
WASHER,PLAIN,22MM 10 92022-213 AR 1.2T
SPACER (I.D=22 O.D=35 11 92026-1020 2 1.0T
BUSHING,TOP GEAR 12 92028-1124 1
CIRCLIP,25MM 13 92033-025 2
BEARING,BALL,5305NSH2 14 92045-1028 1
BEARING,PK223013.8 15 92046-031 2
RACE,DRIVE SHAFT BRNG 16 92048-1012 1
DAMPER,OUTPUT SHAFT 17 13048-1004 1
SHAFT,OUTPUT 18 13128-1019 1
LOW GER,OUTPUT SHAFT 19 13129-046 1 38T
2ND GEAR,OUTPUT SHAFT 20 13131-038 1 35T
3RD GEAR,OUTPUT SHAFT 21 13133-031 1 35T
4TH GEAR,OUTPUT SHAFT 22 13135-020 1 29T
TOP GEAR,OUTPUT SHAFT 23 13129-1214 1 28T
CIRCLIP,30MM 24 480J3000 2
BALL STEEL 3/16' 25 600A0600 3
NUT,14M/M 26 92015-1067 1
WASHER,LOCK(O.D=40) 27 92022-1078 2
WASHER,PLAIN,5X14.1 28 92022-1115 1
WASHER,PLAIN,30MM 29 92022-209 1
WASHER,PLAIN,25MM 30 92022-210 1
BUSHING,2ND GEAR 31 92028-1005 1
BUSH,OUTPUT SHAFT 32 92028-123 1
BALL BEARING 6305N 33 92045-020 1
