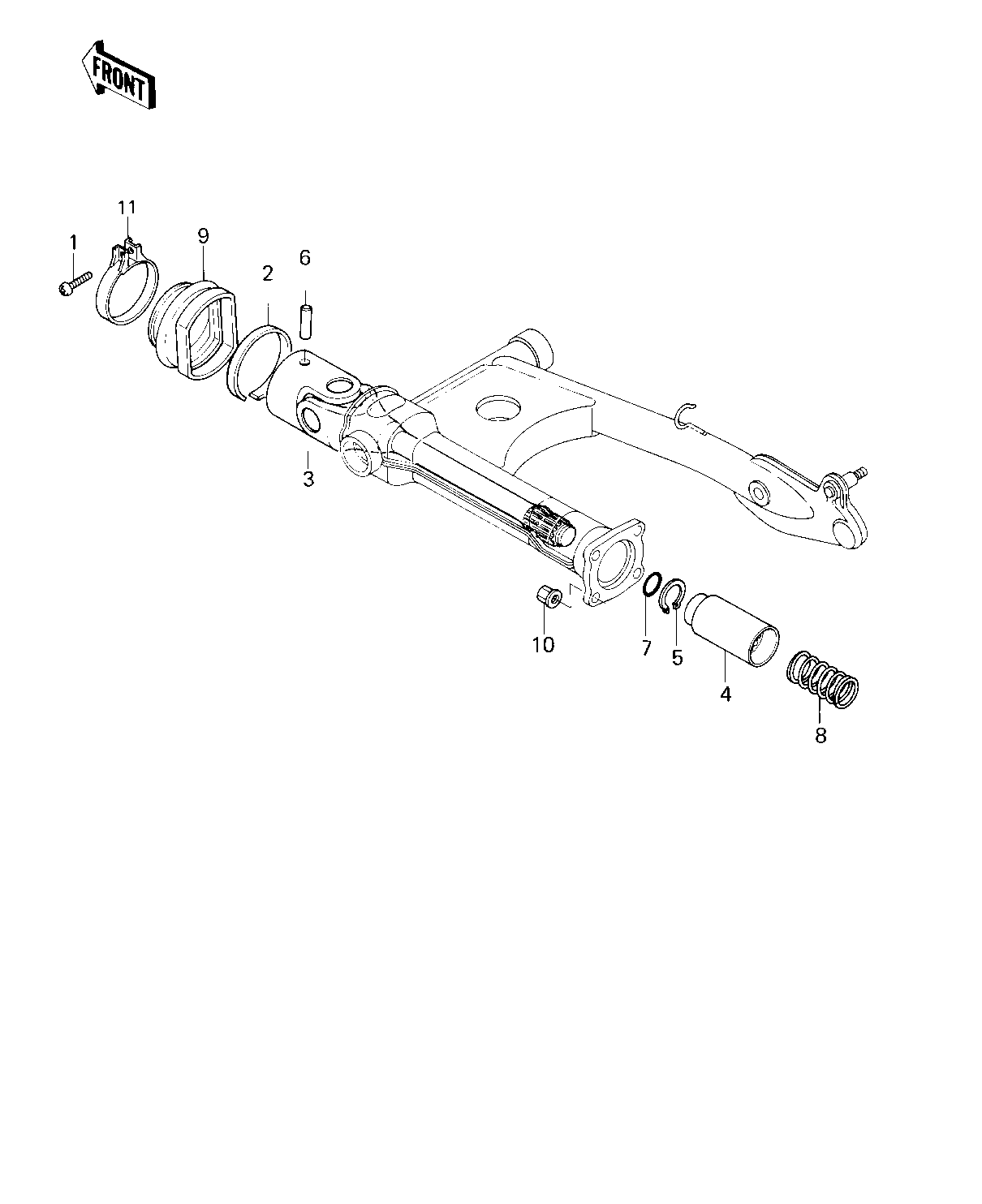

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 1 220B0430 1
SPRING,LEAF 2 39130-1002 1
SHAFT ASSY,PROPELLER 3 39158-1002 1
COUPLING,PROPELLER SF 4 42034-1012 1
CIRCLIP, 20MM 5 480J2000 1
PIN-DOWEL,4X6 6 610A0406 1
"0" RING,20.5MM 7 92055-1029 1
SPRING,PROPELLER SHAF 8 92081-1183 1
BOOT 9 49006-1026 1
NUT,10MM 10 92015-1415 4
CLAMP,BOOT FITTING 11 92037-1112 1
