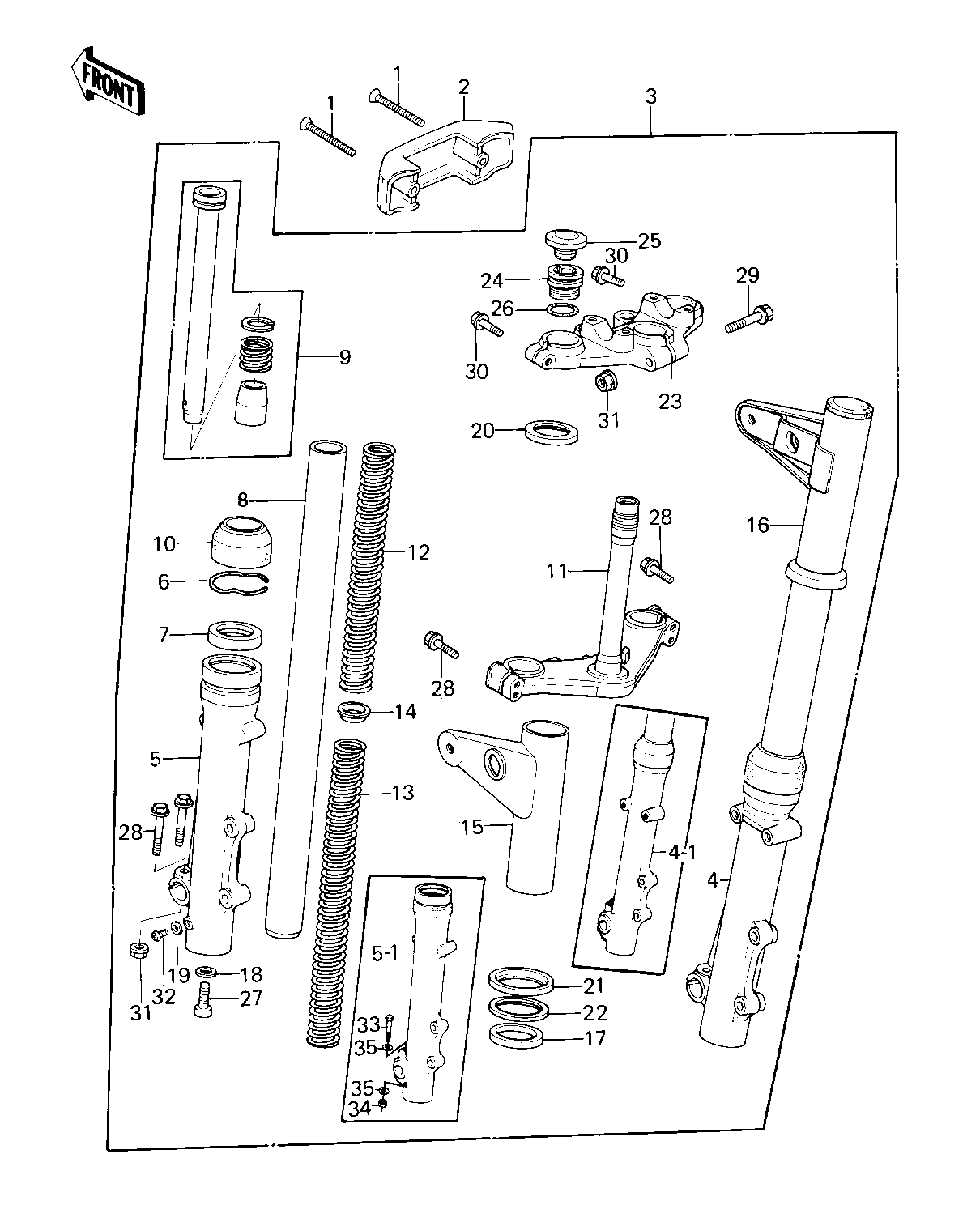

1979 Shaft - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW,OVL CNTSK,5X55 1 222E0555A 2
COVER,FORK 2 44033-1029 1
FORK-FRONT 3 44001-1222 1 KZ1000-E1
FORK-FRONT 3 44001-1100 1 KZ1000-E2
TUBE,RH,FORK OUTER 4 44006-1024 1 KZ1000-E1
TUBE,RH,FORK OUTER 4-1 44006-1044 1 KZ1000-E2
TUBE,LH,FORK OUTER 5 44005-1024 1 KZ1000-E1
TUBE,LH,FORK OUTER 5-1 44005-1044 1 KZ1000-E2
CIRCLIP 6 92033-1036 2
SEAL-OIL,FORK 7 92049-1251 2 KZ1000-E1
TUBE,FORK INNER 8 44013-1021 2 KZ1000-E1
TUBE,FORK INNER 8 44013-1036 2 KZ1000-E2
CYLINDER-FORK 9 44022-1023 2
DUST SHIELD,FORK 10 92093-1024 2
STEM,STEERING 11 44037-1019 1
SPRING,FORK,UPPER 12 44026-1031 2 L=208M/M
SPRING,FORK,LOWER 13 44026-1032 2 L=386.5M/M
GUIDE,FORK SPRING 14 44028-033 2
COVER,L.H,FORK 15 44033-1045 1 KZ1000-E1
COVER,L.H,FORK 15 44033-1045 1 KZ1000-E2
COVER,R.H,FORK 16 44033-1046 1 KZ1000-E1
COVER,R.H,FORK 16 44033-1046 1 KZ1000-E2
DAMPER,FORK COVER 17 92075-1156 2
GASKET,FORK CYLINDER 18 11009-1127 2
GASKET FORK DRAIN PLG 19 44045-002 2
GUIDE,FORK COVER,UPPE 20 13169-1152 2
GUIDE,FORK COVER,LOWE 21 13169-1153 2
GUIDE,FORK COVER,DMPE 22 13169-1155 2
HEAD,STEERING STEM 23 44039-1015 1
BOLT,FORK TOP 24 44029-1010 2
CAP,RUBBER 25 11012-1018 2
"0" RING,FORK TOP 26 92055-1052 2
BOLT,FORK CYLINDER 27 92001-1186 2 12 X 25
BOLT,8X40 28 92001-1188 8 KZ1000-E1
BOLT,8X40 28 92001-1188 4 KZ1000-E2
BOLT,HEX HEAD,8X53 29 92001-1060 1
BOLT,10X45 30 92001-1189 2
NUT,8M/M 31 44007-1002 5 KZ1000-E1
NUT,8M/M 31 44007-1002 1 KZ1000-E2
SCREW PAN HEAD 4X8 32 220B0408 2
BOLT,HEX HEAD,8X55 33 114G0855 2 KZ1000-E2
NUT,LOCK,8MM 34 92015-1124 2 KZ1000-E2
WASHER PLAIN 8MM 35 410B0800 4 KZ1000-E2
