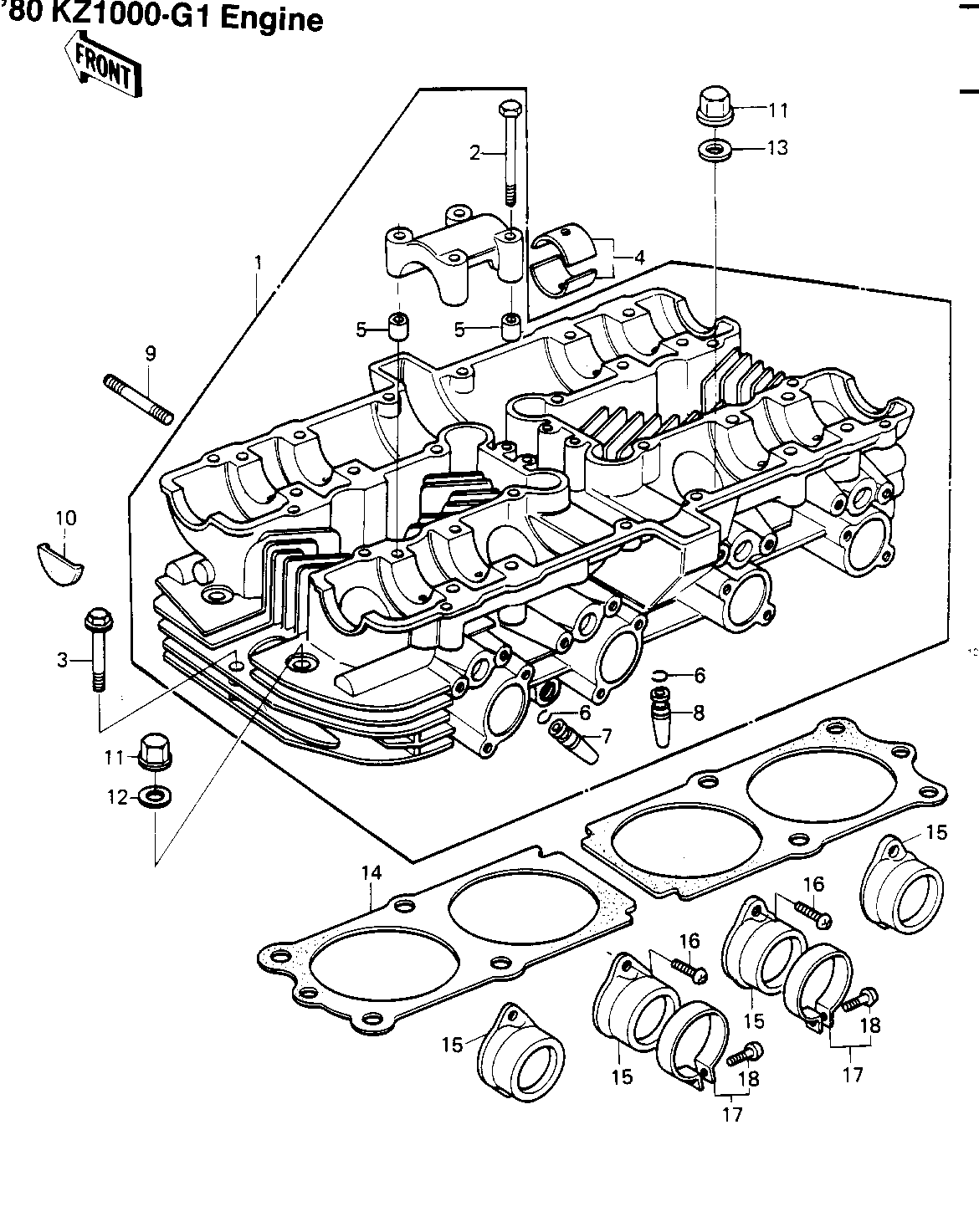

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD ASSY,CYLINDER 1 11002-1044 1
BOLT,6X43 2 92002-1881 16
BOLT,HEX HEAD,6X45 3 92003-092 2
BUSHING,CAMSHAFT 4 13034-030 16
PIN-DOWEL 5 92042-007 8
CIRCLIP-VALVE 6 92036-023 8
GUIDE,INLET VALVE 7 12013-009 4
GUIDE,EXHAUST VALVE 8 49002-1002 4
STUD,8X30 9 92004-1069 8
PLUG,CAM SHAFT 10 92066-017 4
NUT,CYLINDER HEAD 11 92015-076 12
WASHER,PLAIN,10MM 12 92022-215 4
WASHER PLAIN 10MM 13 411B1000 8
GASKET,CYLINDER HEAD 14 11004-076 2
HOLDER,THROTTLE 15 16065-1031 4
SCREW PAN HEAD 6X18 16 220B0618 8
CLAMP,HOLDER 17 92037-077 4
SCREW,PAN HEAD 18 92011-037 4
