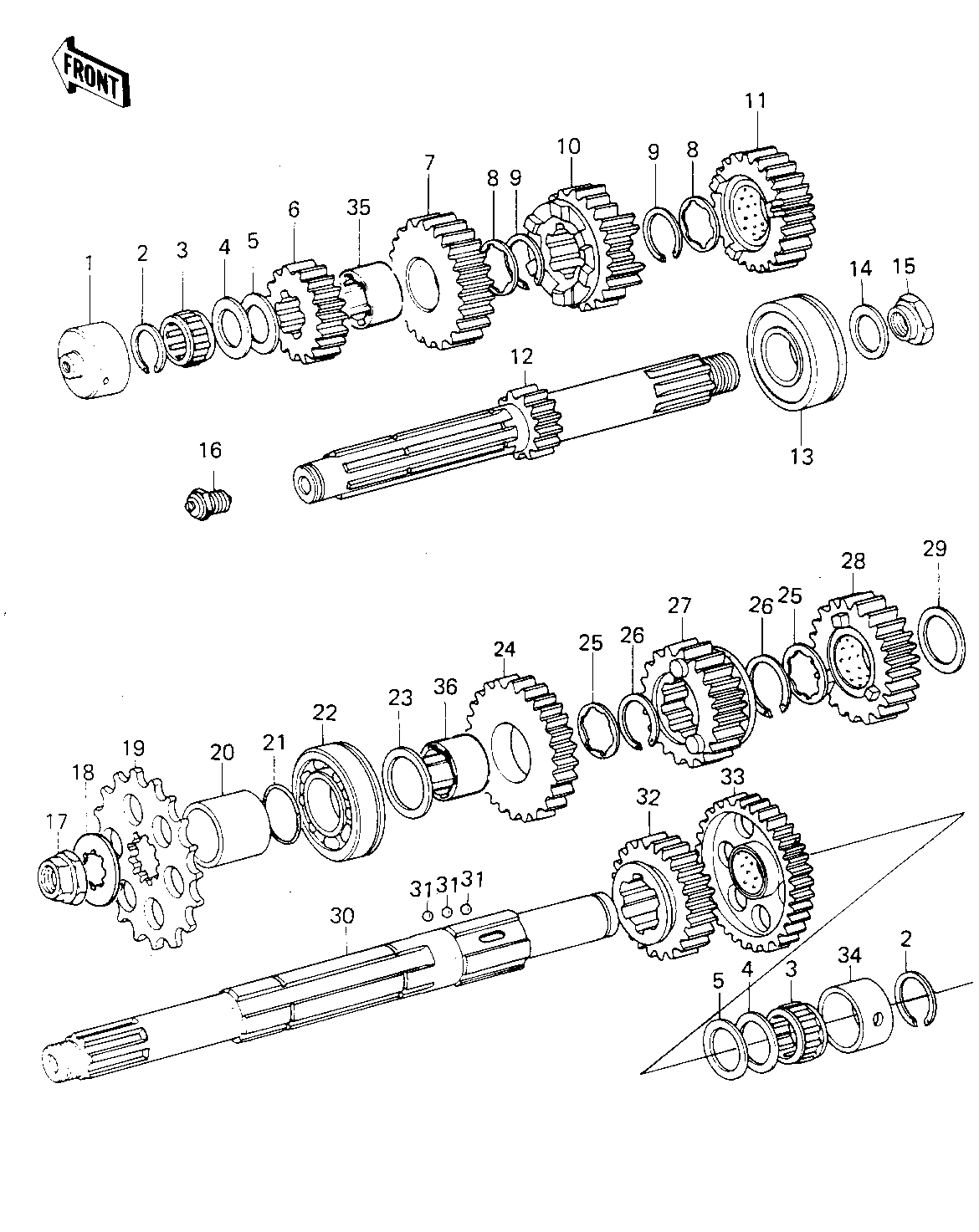

1980 Classic - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BUSH,DRIVE SHAFT 1 92028-122 1
CIRCLIP,25MM 2 92033-025 2
BEARING,PK223013.8 3 92046-031 2
WASHER,PLAIN,22MM 4 92022-212 2
WASHER,PLAIN,22MM 4 92022-213 2
SPACER (I.D=22 O.D=35 5 92026-1020 2
2ND GER,DRIVE SHAFT 6 13130-032 1
TOP GEAR,DRIVE SHAFT 7 13136-042 1
WASHER,LOCK (O.D=35) 8 92022-1077 2
CIRCLIP 28MM 9 480J2800 2
3RD GEAR,DRIVE SHAFT 10 13132-030 1
4TH GEAR,DRIVE SHAFT 11 13134-016 1
SHAFT,DRIVE 12T 12 13127-042 1
BEARING,BALL,5305NSH2 13 92045-1028 1
BEARING,BALL,5305NSH2 13 92045-1028 1
WASHER 14 92125-002 1
NUT,20MM 15 92015-1555 1
SWITCH,NEUTRAL 16 13151-5003 1
NUT,20MM 17 92015-1254 1
WASHER 18 92200-1065 1
ENGINE SPROCKET 15T 19 13144-062 1
COLLAR,ENG SPROCKET 20 92027-288 1
"O" RING 21 92055-035 1
BEARING,BL305 256217 22 92045-021 1
WASHER,PLAIN,25MM 23 92022-210 1
2ND GEAR,OUTPUT SHAFT 24 13131-038 1
WASHER,LOCK(O.D=40) 25 92022-1078 2
CIRCLIP,30MM 26 480J3000 2
TOP GEAR,OUTPUT SHAFT 27 13129-1214 1
3RD GEAR,OUTPUT SHAFT 28 13133-031 1
WASHER,PLAIN,30MM 29 92022-209 1
SHAFT,OUT PUT 30 13128-1013 1
BALL STEEL 3/16' 31 600A0600 3
4TH GEAR,OUTPUT SHAFT 32 13135-020 1
LOW GER,OUTPUT SHAFT 33 13129-046 1
BUSH,OUTPUT SHAFT 34 92028-123 1
BUSHING,TOP GEAR 35 92028-1124 1
BUSHING,2ND GEAR 36 92028-1005 1
