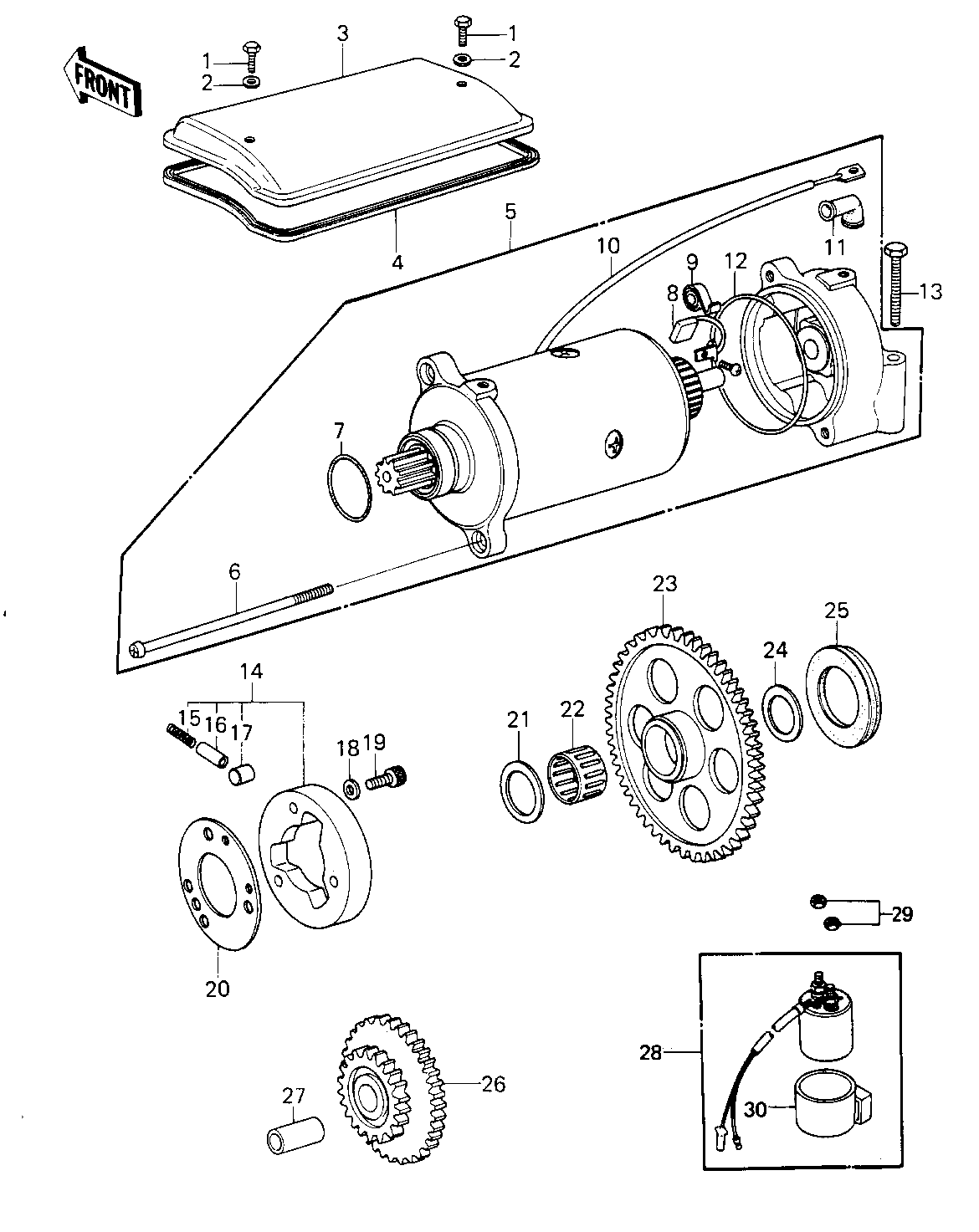

1980 Classic - STARTER MOTOR/STARTER CLUTCH
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT (6X10) | 1 | 110R0610 | 2 | ||
WASHER,PLAIN,6MM | 2 | 410D0600 | 2 | ||
COVER,STARTING MOTOR | 3 | 21165-001 | 1 | ||
GASKET,START MOTOR CV | 4 | 21166-001 | 1 | ||
STARTER-ELECTRIC | 5 | 21163-1019 | 1 | ||
SCREW,PAN HEAD,6X110 | 6 | 21015-005 | 2 | ||
"0" RING,STARTING MTR | 7 | 21027-004 | 1 | ||
CARBON BRUSH | 8 | 21039-003 | 2 | ||
SPRING,CARBON BRUSH | 9 | 21040-003 | 2 | ||
WIRE,STARTER MOTOR | 10 | 26010-055 | 1 | ||
GROMMET,CORD | 11 | 21017-017 | 1 | ||
COIL,FIELD | 12 | 21077-003 | 1 | ||
BOLT,EXCLUSIVE | 13 | 92001-1456 | 2 | ||
CLUTCH ASSY,STARTING | 14 | 13193-1006 | 1 | ||
SPRING | 15 | 92081-110 | 3 | ||
PIN | 16 | 92043-087 | 3 | ||
PIN | 17 | 92122-001 | 3 | ||
WASHER,PLAIN | 18 | 92022-1108 | 3 | ||
BOLT | 19 | 120P0816 | 3 | ||
PLATE,CLUTCH STARTER | 20 | 92026-112 | 1 | ||
SPACER | 21 | 92026-1031 | 1 | ||
BEARING,NEEDLE,K25302 | 22 | 92046-1022 | 1 | ||
GEAR,STARTING CLUTCH | 23 | 16085-1012 | 1 | ||
SPACER | 24 | 92026-1033 | 1 | ||
DAMPER RUBBER,6.3T | 25 | 92075-1129 | AR | ||
DAMPER RUBBER,7.3T | 25 | 92075-1130 | AR | ||
DAMPER RUBBER,8.3T | 25 | 92075-1131 | AR | ||
GEAR,STARTING MOTOR | 26 | 21167-002 | 1 | ||
PIN-PISTON | 27 | 13002-007 | 1 | ||
SWITCH ASSY,MAGNETIC | 28 | 21164-005 | 1 | ||
NUT,LOCK 6MM | 29 | 92017-014 | 2 | ||
DAMPER MAG SWITCH SHK | 30 | 21064-002 | 1 |
