Parts Diagrams |

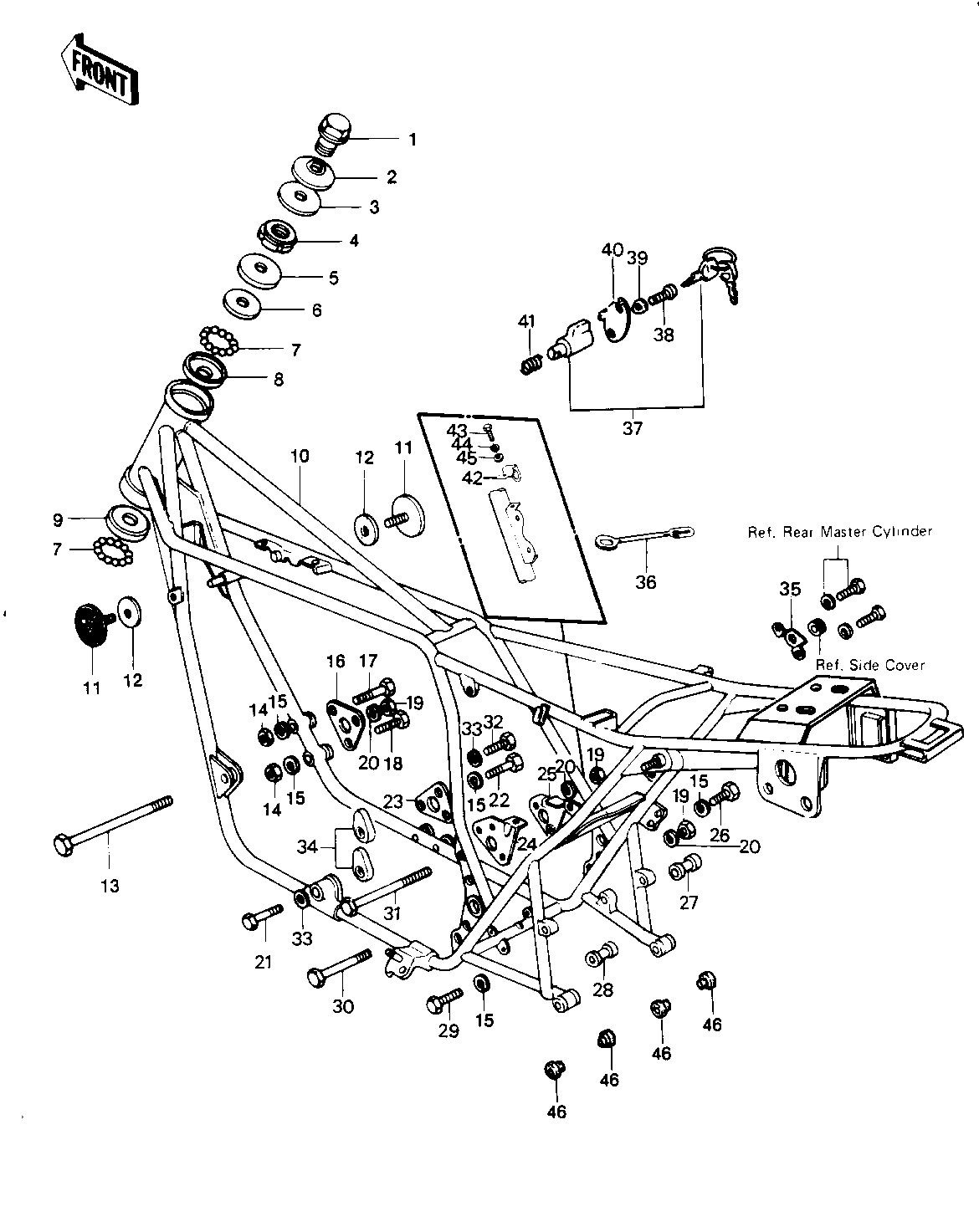

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,STEERG STEM HEAD | 1 | 92007-031 | 1 | ||
WASHER,STEERG STM HD | 2 | 92022-230 | 1 | ||
WASHER,WAVE | 3 | 46100-003 | 1 | ||
NUT STEERING STEM LCK | 4 | 92090-007 | 1 | ||
CAP, STEERING STEM | 5 | 46098-016 | 1 | ||
CONE,STRNG STM BRNG | 6 | 92047-011 | 1 | ||
BALL STEEL 1/4' | 7 | 600A0800 | 39 | ||
RACE STRNG STEM BERNG | 8 | 92048-006 | 1 | ||
RACE,STRNG STM BRNG | 9 | 92048-008 | 1 | ||
FRAME | 10 | 32002-1141 | 1 | ||
REFLECTOR,REFLEX | 11 | 28012-016 | 2 | ||
DAMPER RUBBER,REFLECT | 12 | 92094-011 | 2 | ||
BOLT,ENGINE MOUNTING | 13 | 92091-022 | 1 | L = 310 MM | |
NUT,8MM | 14 | 311B0800 | 2 | ||
WASHER SPRING 8MM | 15 | 461F0800 | 8 | ||
PLATE,ENG MOUNT FRONT | 16 | 32030-025 | 1 | ||
BOLT-FLANGE | 17 | 92001-1582 | 1 | ||
BOLT,FLANGED,8X60 | 18 | 92001-1581 | 1 | ||
NUT,LOCK,10MM | 19 | 92019-021 | 3 | ||
WASHER SPRING 10MM | 20 | 461F1000 | 3 | ||
BOLT,HEX HEAD,12X55 | 21 | 92001-1262 | 1 | ||
BOLT-SMALL-UPSET,8X18 | 22 | 115G0818 | 2 | ||
PLATE,ENG MOUNT LOWER | 23 | 32030-026 | 1 | ||
PLATE,REAR ENGINE,L.H | 24 | 32030-066 | 1 | ||
BRACKET,REAR ENGINE | 25 | 32029-1024 | 1 | ||
BOLT | 26 | 92001-1578 | 3 | ||
COLLAR,ENG MOUNTING | 27 | 92027-160 | 1 | ||
COLLAR,ENG MOUNTING | 28 | 92027-159 | 1 | ||
BOLT,FLANGED,8X35 | 29 | 92001-1577 | 1 | ||
BOLT,ENGINE MOUNTING | 30 | 92003-099 | 1 | L = 165 MM | |
BOLT,ENGINE MOUNTING | 31 | 92091-023 | 1 | L = 250 MM | |
BOLT,HEX HEAD,12X70 | 32 | 92001-1265 | 1 | ||
WASHER SPRING 12MM | 33 | 461F1200 | 2 | ||
NUT,12MM | 34 | 92016-045 | 2 | ||
BRACKET,SIDE COV,R.H | 35 | 32049-101 | 1 | ||
CLAMP,OVER FLOW PIPE | 36 | 92037-134 | 1 | ||
LOCK,ASSY,STEERING | 37 | 27016-5016 | 1 | ||
SCREW-TAPPING | 38 | 92008-007 | 1 | ||
WASHER | 39 | 92097-003 | 1 | ||
CAP,STEERING LOCK | 40 | 11012-1134 | 1 | ||
SPRING-STEERING LOCK | 41 | 27032-001 | 1 | ||
BRACKET,SIDE STAND | 42 | 11034-1684 | 1 | ||
BOLT-UPSET,6X12 | 43 | 112G0612 | 1 | ||
WASHER SPRING 6MM | 44 | 461F0600 | 1 | ||
WASHER PLAIN 6MM | 45 | 410B0600 | 1 | ||
BUSHING,MUFFLER FITT | 46 | 92092-010 | 4 |
