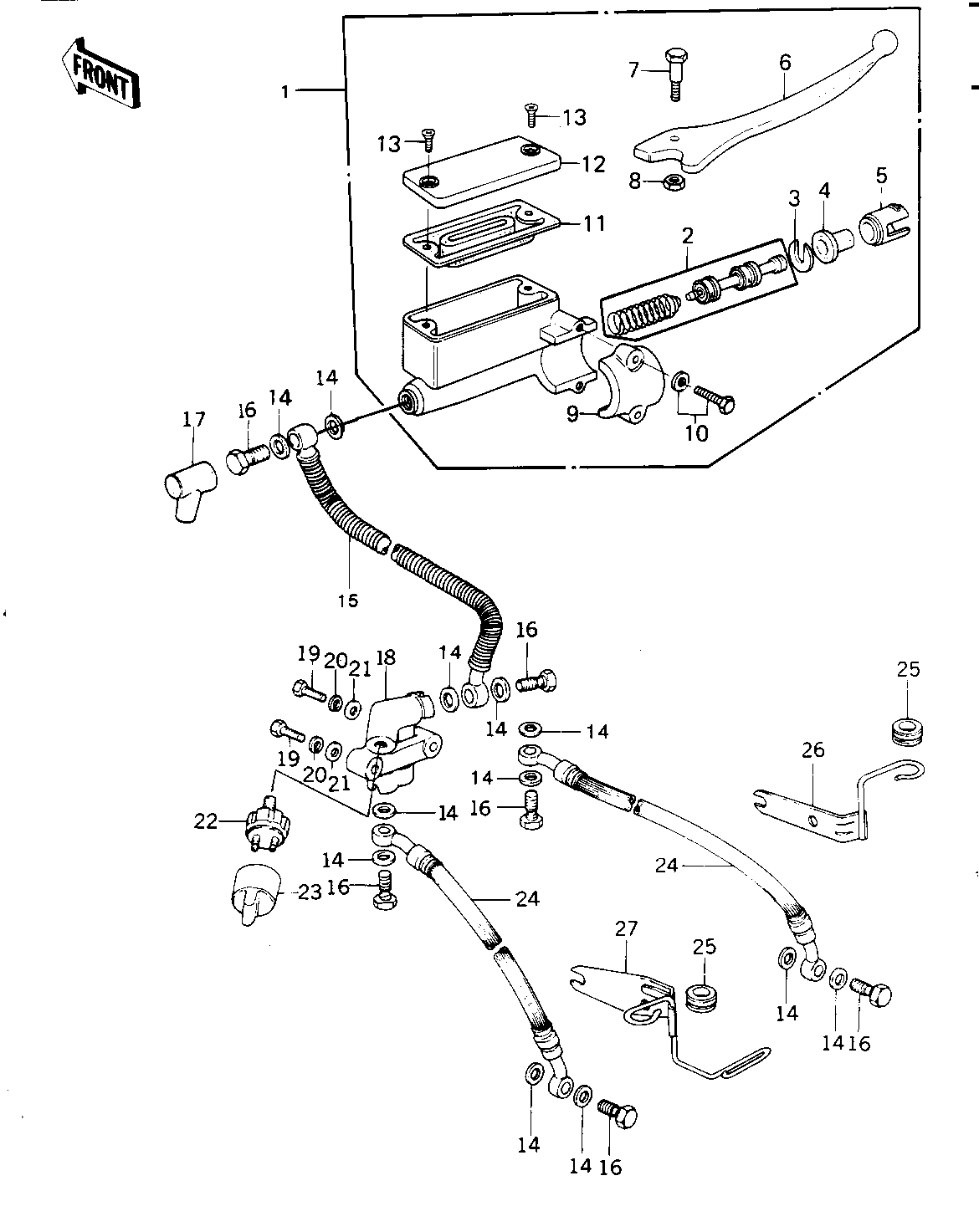

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER ASSY,MASTER 1 43015-1059 1
PISTON-COMP-BRAKE 2 43020-1023 1
STOPER,PISTON 3 43022-1001 1
DUST COVER 4 49016-1010 1
LINER,PISTON 5 14008-1007 1
LEVER,FRONT BRAKE 6 46092-1012 1
BOLT,CLUTCH LEV FITT 7 92001-1056 1
NUT 6MM 8 312B0600 1
HOLDER,MASTER CYLINDR 9 43034-1001 1
BOLT,HEX HEAD,6X25 10 43033-003 2
DIAPHRAGM 11 43028-1008 1
CAP,OIL CUP 12 43026-1006 1
SCREW,COUNTERSUNK HED 13 92001-1055 2
WASHER-OIL BOLT 14 43067-001 12
HOSE,MASTER CYL BRAKE 15 43059-1062 1
BOLT,OIL,L=23 16 92002-1888 6
BOOT,DUST 17 49006-1041 1
JOINT,FOUR WAY 18 43075-002 1
BOLT,FLANGED,6X65 19 130G0665 2
WASHER SPRING 6MM 20 461F0600 2
WASHER PLAIN 6MM 21 411B0600 2
SWITCH-FRONT BRAKE 22 43065-001 1
CAP,FRONT BRK SWITCH 23 11012-1037 1
HOSE,CALIPER BRAKE 24 43059-033 2
DAMPER RUBBER,CYL HSE 25 43064-006 2
BRACKET,BRAKE HOSE 26 43063-008 1
BRACKET 27 11034-1041 1
