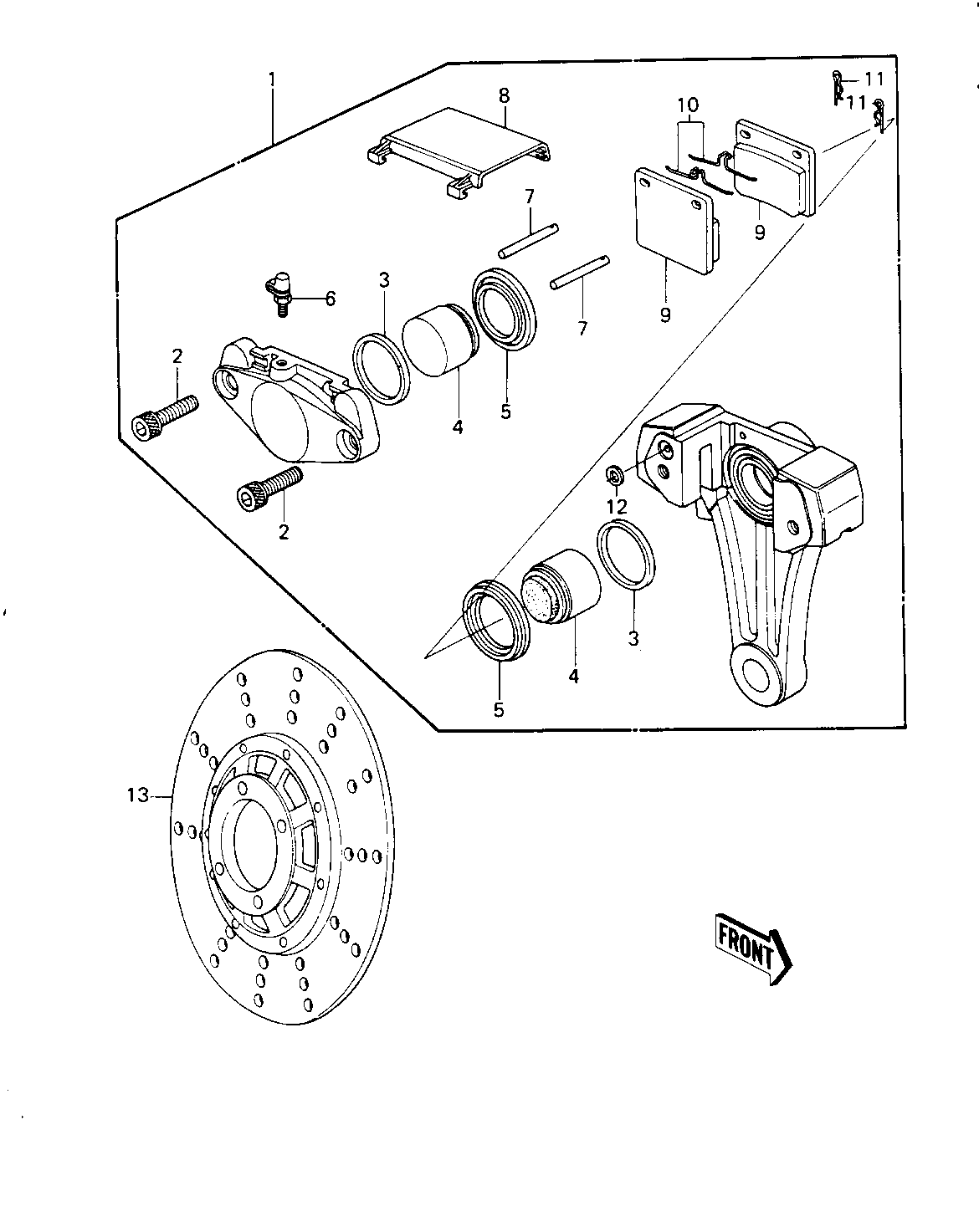

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CALIPER ASSY,REAR 1 43041-1027 1
BOLT,TIE,10X45 2 92001-1071 2
RING,PISTON SEAL 3 43049-002 2
PISTON,BRAKE 4 43020-1011 2
DUST SEAL,PISTON 5 43054-004 2
BLEEDER SET 6 43085-001 1
PIN 7 43045-007 2
CAP 8 43024-004 1
PAD SET 9 43082-1002 1
SPRING 10 43086-002 2
CLIP 11 43084-003 2
RING,SEAL6.5X11.5X2.2 12 43049-1004 1
DISC PLATE,REAR 13 41080-1020 1
