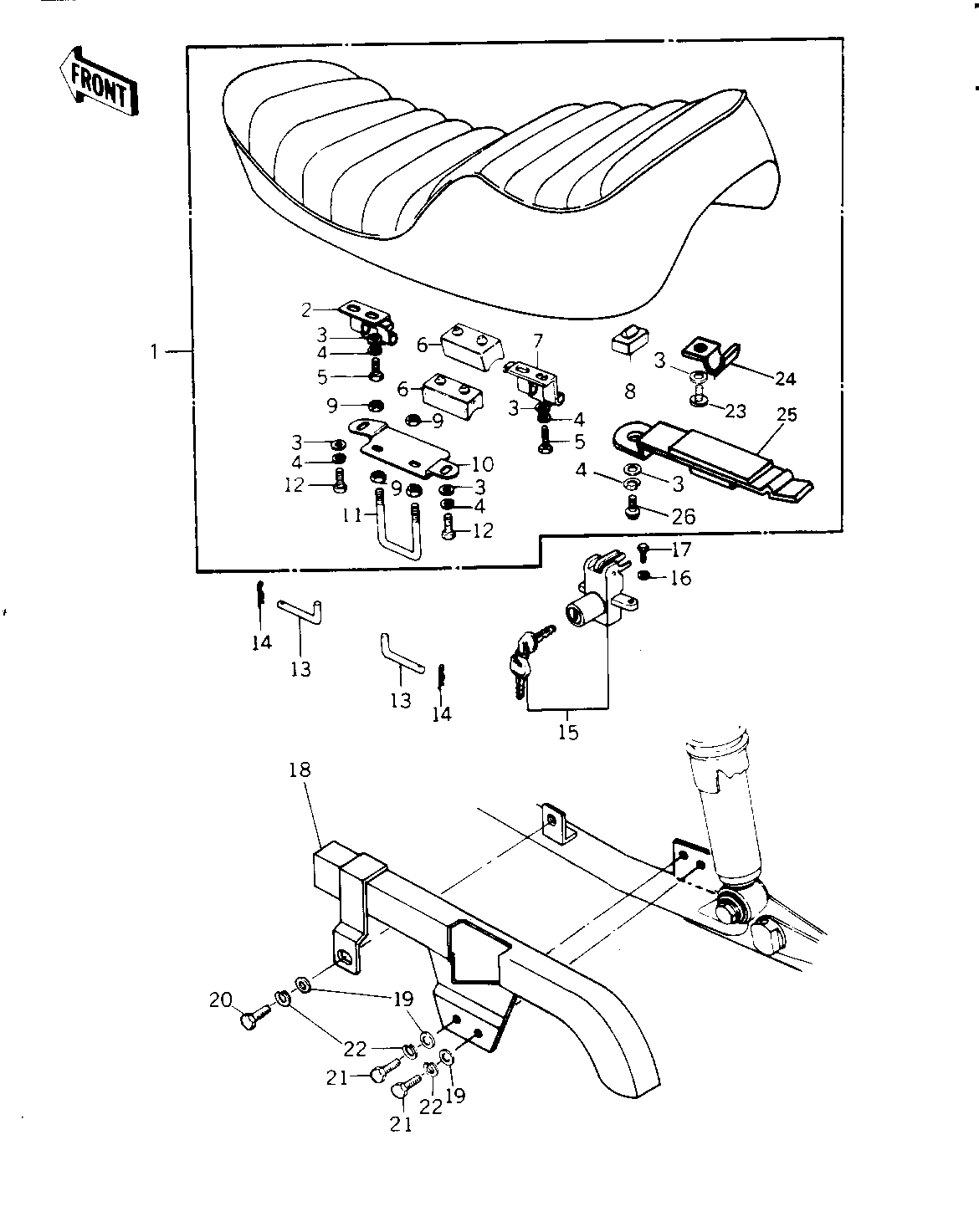

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SEAT-ASSY | 1 | 53001-1084 | 1 | ||
HINGE,REAR | 2 | 53009-030 | 1 | ||
WASHER PLAIN 6MM | 3 | 411B0600 | 9 | ||
WASHER SPRING 6MM | 4 | 461F0600 | 7 | ||
BOLT-UPSET,6X16 | 5 | 112G0616 | 4 | ||
DAMPER RUBBER,SEAT | 6 | 92075-139 | 6 | ||
HINGE,REAR | 7 | 53009-032 | 1 | ||
DAMPER RUBBER | 8 | 92075-099 | 1 | ||
NUT 6MM | 9 | 311B0600 | 4 | ||
BRACKET,SEAT CATCH | 10 | 53058-003 | 1 | ||
CATCH, SEAT | 11 | 53056-002 | 1 | ||
BOLT-UPSET 6X14 | 12 | 112B0614 | 2 | ||
PIN,DUAL SEAT PIVOT | 13 | 53011-008 | 2 | ||
PIN,SNAP | 14 | 554A0600 | 2 | ||
LOCK-ASSY,SEAT | 15 | 27016-5010 | 1 | ||
WASHER SPRING 6MM | 16 | 461F0600 | 2 | ||
BOLT-UPSET,6X12 | 17 | 112G0612 | 1 | ||
CASE-CHAIN | 18 | 36014-069 | 1 | ||
WASHER-PLAIN,6MM | 19 | 411D0600 | 3 | ||
BOLT-HEX HEAD,6X16 | 20 | 110N0616 | 1 | ||
BOLT-UPSET | 21 | 112G0614 | 2 | ||
WASHER SPRING 6MM | 22 | 461F0600 | 3 | ||
SCREW PAN HEAD 6X10 | 23 | 220B0610 | 1 | ||
GUIDE,HARNESS | 24 | 13070-1027 | 1 | ||
BRACKET | 25 | 11034-1757 | 1 | ||
BOLT-UPSET,6X16 | 26 | 112G0616 | 1 |
SEAT-ASSY | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HINGE,REAR | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X16 | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,SEAT | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
HINGE,REAR | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT 6MM | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BRACKET,SEAT CATCH | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CATCH, SEAT | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,DUAL SEAT PIVOT | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,SNAP | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LOCK-ASSY,SEAT | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X12 | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-CHAIN | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,6MM | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-HEX HEAD,6X16 | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X10 | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,HARNESS | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 25 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X16 | |
REF # | 26 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
