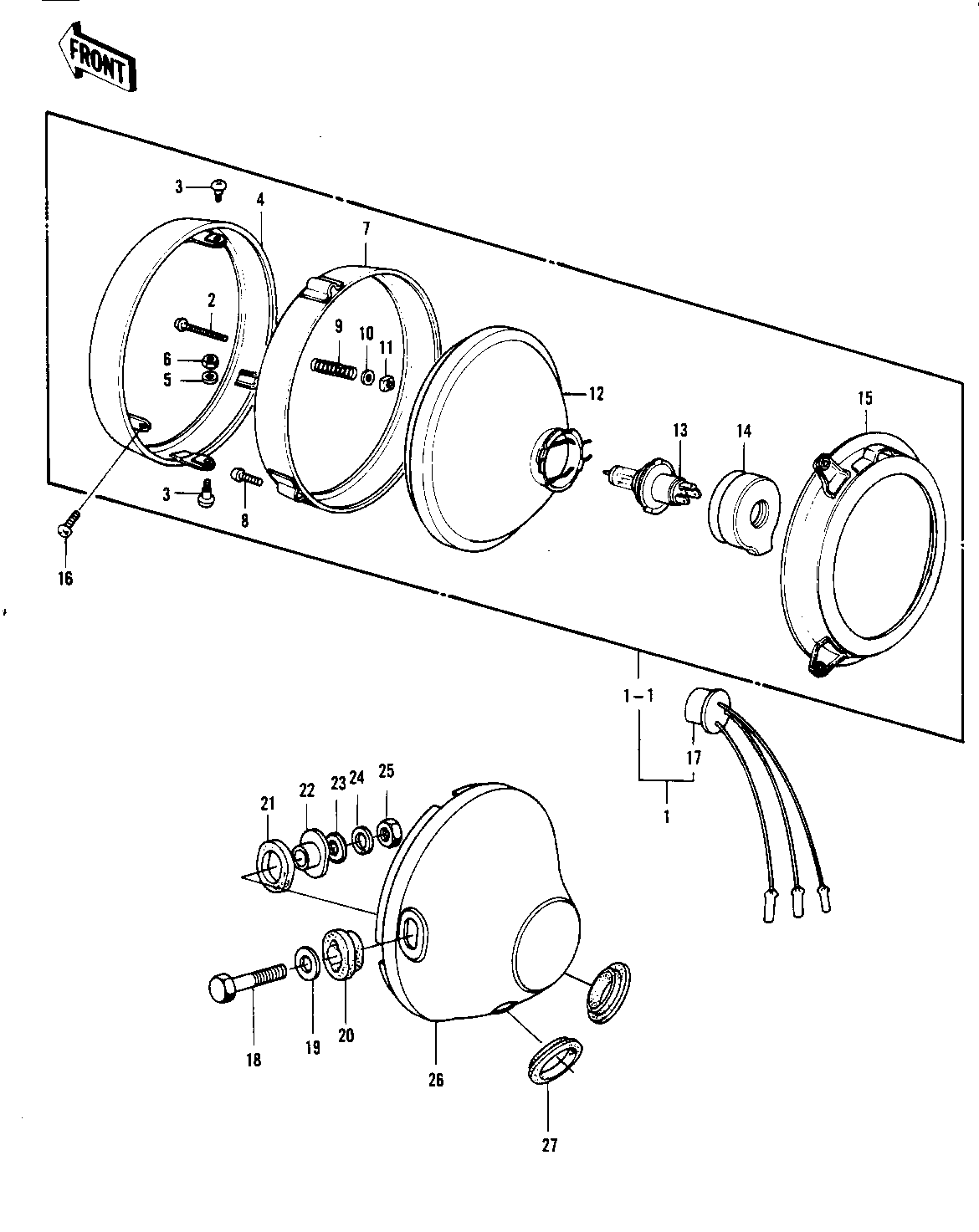

1980 Classic - HEADLIGHT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
23004-1040 (Canada) 1 23004-1035 1 INCL. REF. 17
LAMP-HEAD 1-1 23004-1040 AL ORDER REF. 17 SEPARATE
SCREW FORCUS ADJUST 2 23019-021 1
SCREW-PAN HEAD,5X12 3 23019-023 2
RIM,HEAD LAMP 4 23006-038 1
WASHER-PLAIN,5MM 5 23021-012 2
NUT,HEAD LAMP RIM FIT 6 23020-023 2
RING,HEAD LAMP MOUNT 7 23072-001 1
SCREW PAN HEAD 3X12 8 220B0312 2
SPRING FOCUS ADJUST 9 23014-005 1
WASHER 10 23021-004 1
NUT,4MM 11 23020-018 1
LENS UNIT,HEAD LAMP 12 23007-1009 1
BULB,12V-60/55W 13 92069-1002 1 PHILIPS (H4 12342)
DUST COVER 14 49016-1016 1
RING,HEAD LAMP MOUNT 15 23074-001 1
SCREW,PAN HEAD,5X14 16 23019-022 2
SOCKET ASSY,HEAD LAMP 17 23008-037 1
BOLT,10MM 18 92007-024 2
WASHER-PLAIN,10MM 19 411D1000 2
DAMPER RUBBER 20 23066-022 2
DAMPER RUBBER 21 23066-021 2
COLLAR 22 23052-010 2
WASHER PLAIN 10MM 23 410B1000 2
WASHER SPRING 10MM 24 461F1000 2
NUT 10MM 25 315B1000 2
BODY-COMP-HEAD LAMP 26 23005-1016 1 1 WIRING HOLE
BODY-COMP-HEAD LAMP 26 23005-1016 AL 2 WIRING HOLES
GROMMET 27 92071-1008 1 FOR 23005-1012
GROMMET 27 92071-1008 2 FOR 23005-1016
