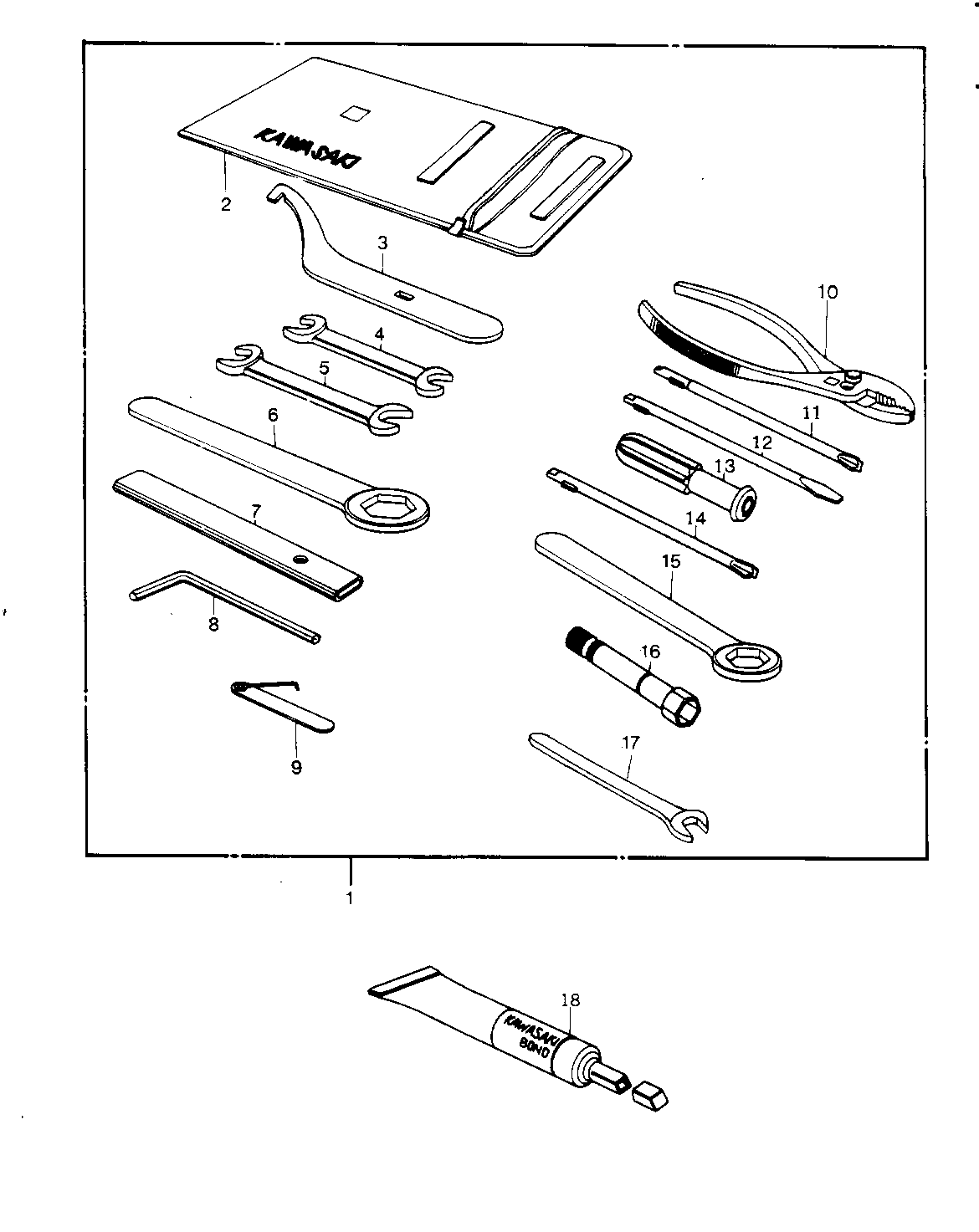

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOL KIT 1 56007-1052 1
BAG,TOOL 2 56008-006 1
WRENCH,HOOK 3 92110-1014 1
WRENCH,OPEN END,12X13 4 92126-002 1
TOOL-WRENCH,OPEN END, 5 92110-1153 1
TOOL-WRENCH,BOX END,2 6 92110-1147 1
TOOL-WRENCH,BOX END,2 7 92111-004 1
WRENCH,ALLEN 8 92110-1015 1
GAUGE,THICKENSS 9 92128-001 1
PLIERS,160MM 10 92112-003 1
TOOL-DRIVER 11 92107-1052 1
92107-1052 (Canada) 12 92107-007 1
GRIP,SCREW DRIVER 13 92106-1001 1
92107-1002 (Canada) 14 92107-008 1
TOOL-WRENCH,BOX END,2 15 92110-1148 1
WRENCH,SPARK PLUG 16 92108-008 1
WRENCH,OPEN END,10M/M 17 92110-1031 1
LIQUID GASKET 18 92104-002 AR
