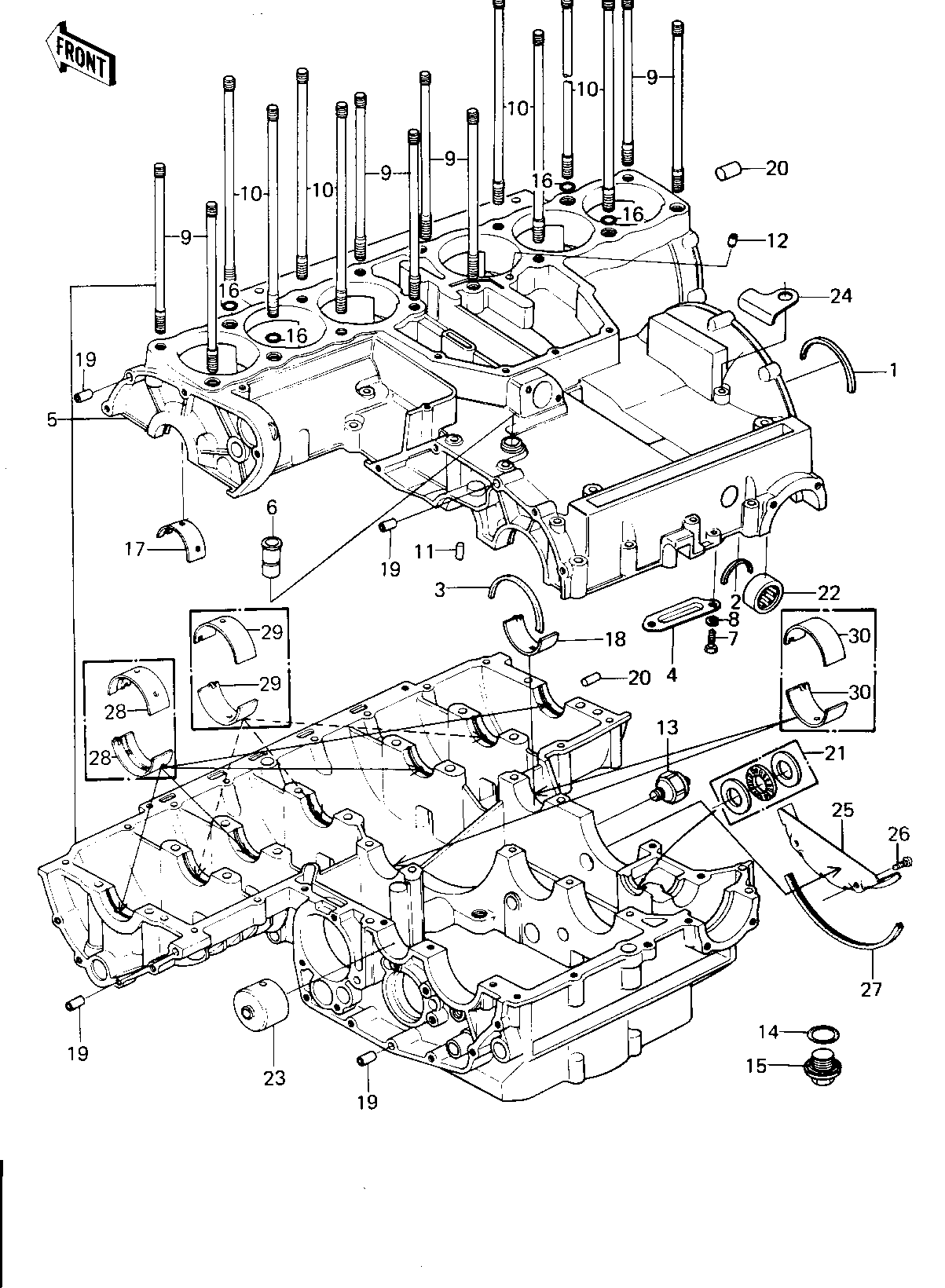

1980 KZ1300-B2 - CRANKCASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RING-BEARING SET 1 14013-013 AR
RING,POSITION 1 14013-1004 AR
RING,POSITION 2 14013-1002 1
RING,POSITION 3 14013-1004 1
RECEIVER,OIL 4 13045-1002 1
CRANKCASE SET 5 14001-5058 1
CRANKCASE SET 5 14001-5058 1 E/NO. 011196~
BREATHER JOINT 6 14067-006 1
BOLT-UPSET,6X16 7 112G0616 2
WASHER SPRING 6MM 8 461F0600 2
STUD,10X153 9 92004-062 8
STUD,10X195 10 92004-1019 8
PIN DOWEL 6MM 11 92042-016 1
NOZZLE,OIL BIAS 12 92062-011 1
SWITCH ASY,OIL PRSSUR 13 16144-006 1
"O" RING,22MM 14 670B2022 1
PLUG,OIL DRAIN 15 92001-1183 1
"O" RING,12MM 16 670B2012 4
BUSHING,MAIN JOURNAL 17 92028-1105 8 E/NO. 005801~010637
BUSHING,MAIN JOURNAL 18 92028-1108 10 E/NO. 005801~010637
PIN-DOWEL 19 92042-007 4
PIN DOWEL 6MM 20 92042-016 2
BEARING,N,NTBGW1528 21 92046-1017 1
BEARING,N,TR-22301302 22 92046-1018 1
RACE,DRIVE SHAFT,L.H: 23 92048-1008 1
CLAMP,CABLE 24 92037-1152 1 E/NO. 005801~
BAFFLE 25 18020-1022 1 E/NO. 011196~
SCREW PAN HEAD 6X10 26 220B0610 2 E/NO. 011196~
SEAL 27 92093-1040 1 E/NO. 011196~
BUSHING,MAIN JOURNAL 28 92028-1103 AR E/NO. 010638~
BUSHING,MAIN JOURNAL 28 92028-1104 AR E/NO. 010638~
BUSHING,MAIN JOURNAL 28 92028-1105 AR E/NO. 010638~
BUSHING,MAIN JOURNAL 29 92028-1106 AR E/NO. 010638~
BUSHING,MAIN JOURNAL 29 92028-1107 AR E/NO. 010638~
BUSHING,MAIN JOURNAL 29 92028-1108 AR E/NO. 010638~
BUSHING,MAIN JOURNAL 30 92028-1108 4 E/NO. 010638~
