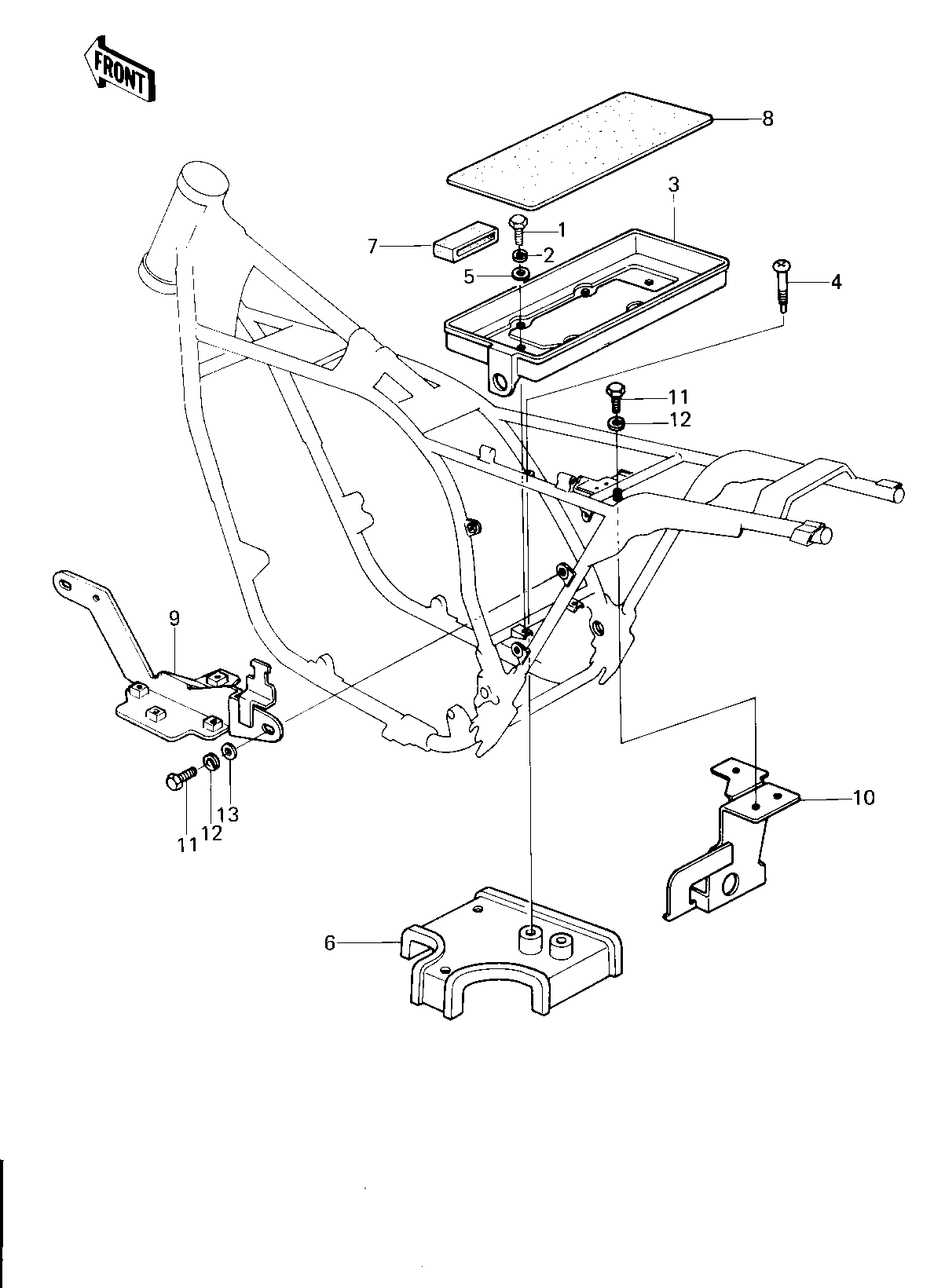

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X16 1 112G0616 2
WASHER SPRING 6MM 2 461F0600 2
CASE,BATTERY 3 32097-1015 1
SCREW,6X38 4 92009-1042 1
WASHER 6.5X20X1.6T 5 92022-125 2
BAND,BATTERY 6 92072-1021 1
DAMPER,BATTERY 7 92075-1099 1 FRONT
DAMPER,BATTERY 8 92075-1105 1 UNDER
BRACKET,ELECTRO BASE 9 11034-1843 1
BRACKET,BASE 10 11034-1316 1
BOLT-UPSET,6X12 11 112G0612 4
WASHER SPRING 6MM 12 461F0600 4
WASHER PLAIN 6MM 13 411B0600 2
