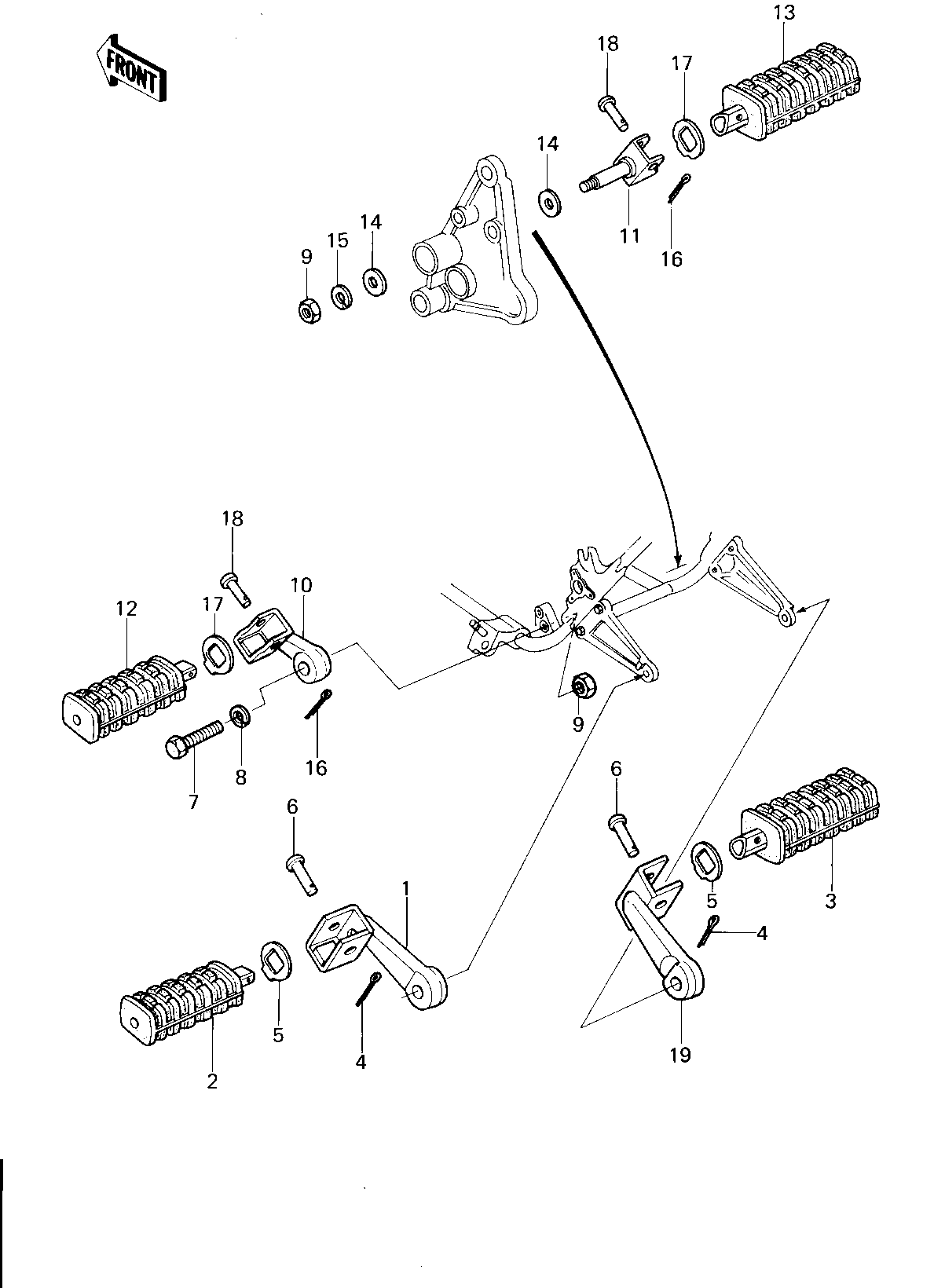

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,RR.FOOTREST,LH 1 34003-1060 1
STEP,FRONT FOOTREST 2 34028-1015 1
STEP,FRONT FOOTREST 3 34028-1016 1
PIN COTTER 2.5X16 4 550D2516 2
WASHER,LOCK 5 92022-1096 2
PIN-FOOTREST BAR FIT 6 92043-080 2
BOLT-HEX HEAD,12X36 7 113B1236A 1
WASHER SPRING 12MM 8 461F1200 1
NUT-HEX-FINE,12MM 9 315B1200 2
HOLDER,L.H,FOOTREST 10 34003-1029 1
HOLDER,R.H,FOOTREST 11 34003-1030 1
STEP,FRONT FOOTREST 12 34028-1015 1
STEP,FRONT FOOTREST 13 34028-1016 1
WASHER PLAIN 12MM 14 410B1200 2
WASHER SPRING 12MM 15 461F1200 1
PIN COTTER 2.5X16 16 550D2516 2
WASHER,LOCK 17 92022-1096 2
PIN-FOOTREST BAR FIT 18 92043-080 2
HOLDER,RR FOOTREST,RH 19 34003-1061 1
