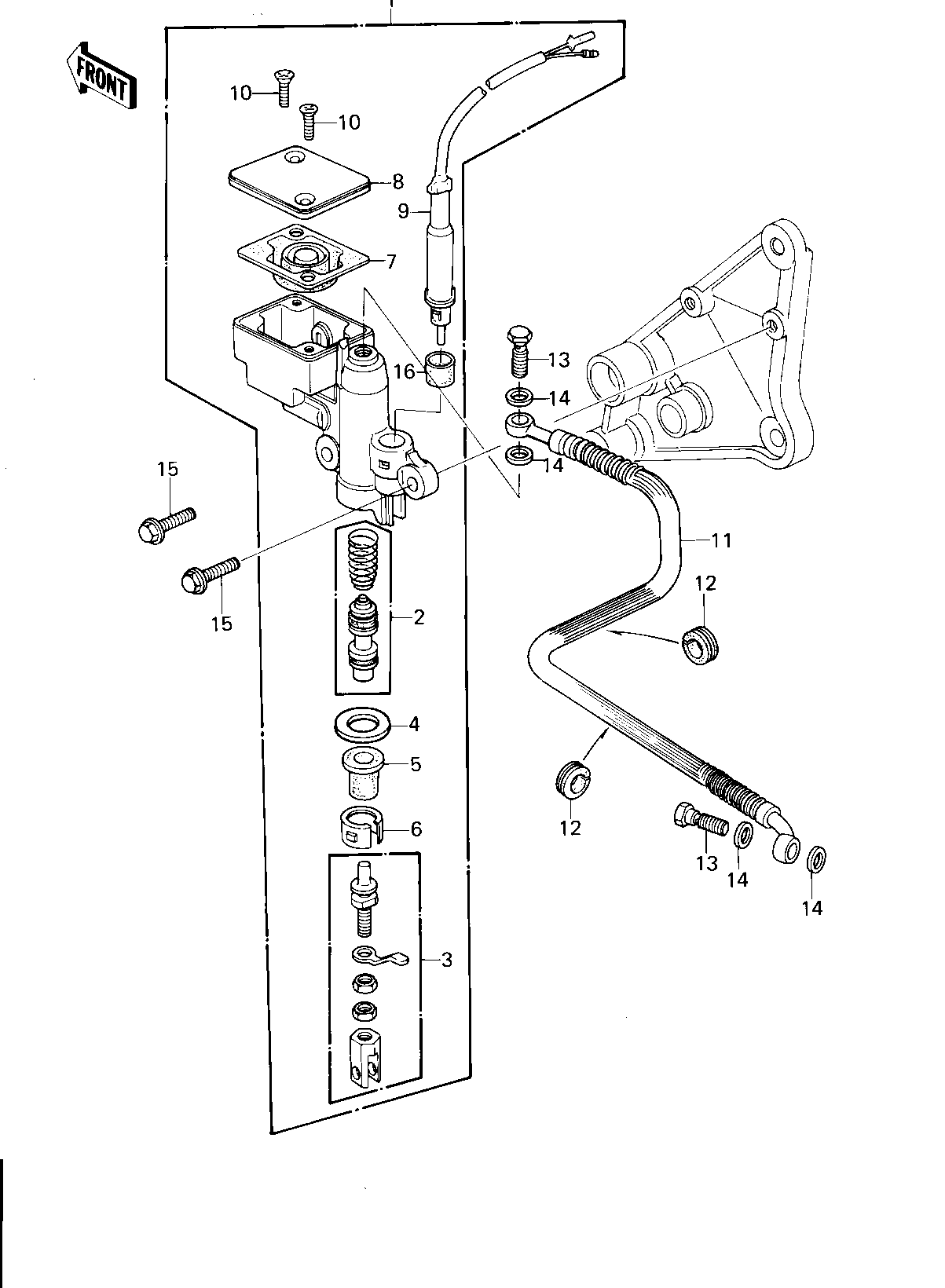

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER ASSY,RR MAST 1 43015-1055 1
PISTON ASSY 2 43020-1018 1
ROD ASSY,BRAKE 3 43010-1001 1
STOPPER,PISTON 4 43022-1002 1
DUST COVER 5 49016-1026 1
STOPPER,DUST COVER 6 43022-1003 1
DIAPHRAGM 7 43028-1007 1
CAP,OIL CUP 8 43026-1013 1
SWITCH,REAR BRAKE 9 27010-1027 1
SCREW,COUNTERSUNK HED 10 92001-1055 2
HOSE-BRAKE,L=620 11 43059-1177 1
DAMPER RUBBER 12 43064-007 2
BOLT,OIL,L=23 13 92002-1888 2
WASHER-OIL BOLT 14 43067-001 4
BOLT,8X28 15 92001-1095 2
BUSHING 16 92092-1007 1
