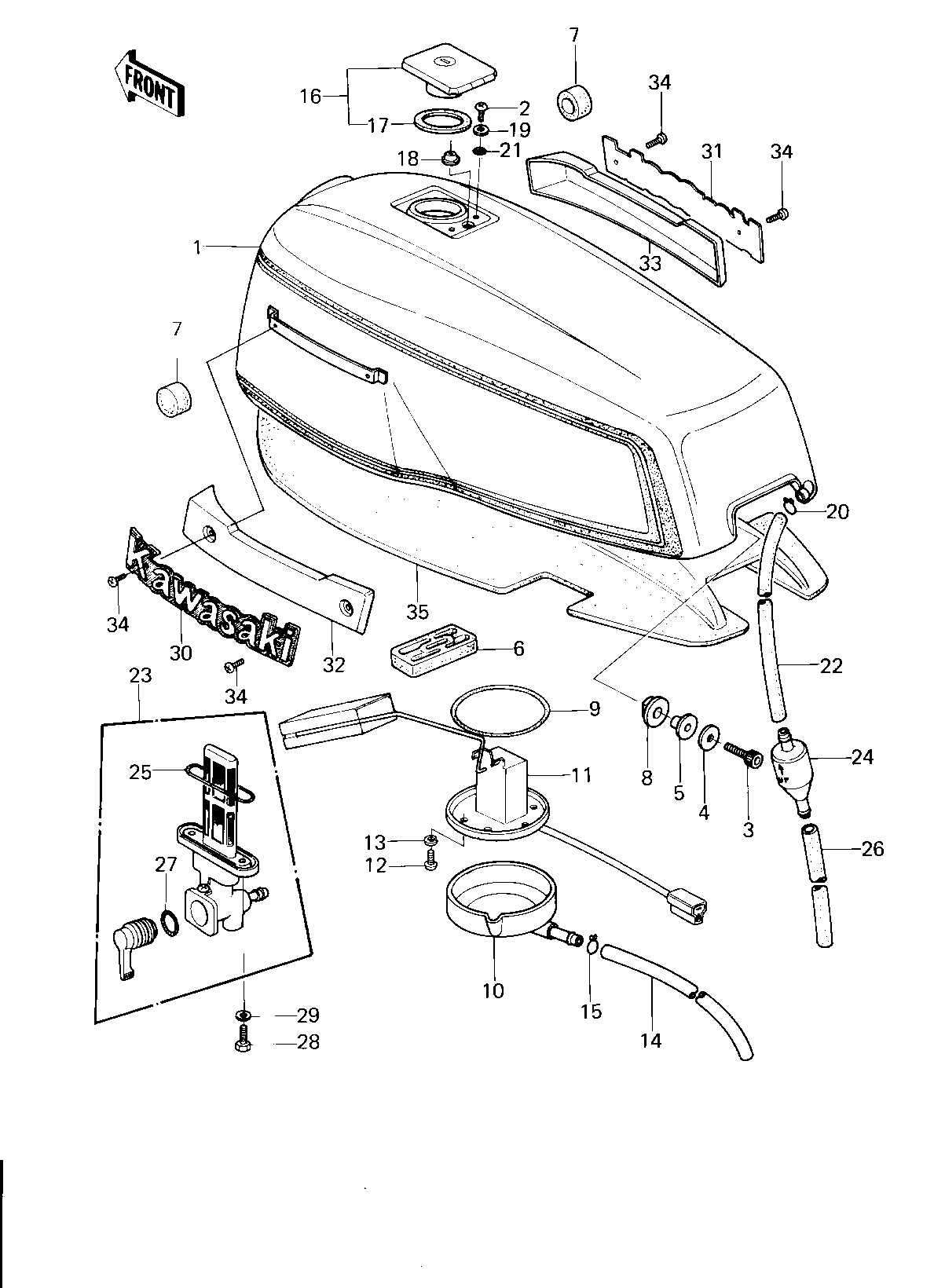

1980 KZ1300-B2 - FUEL TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TANK-FUEL,R.D.RED 1 51001-1025-D6 1
SCREW PAN HEAD 5X10 2 220B0510 2
BOLT,SOCKET,8X30 3 120P0830 1
92022-101 (Canada) 4 92022-092 1
COLLAR,FUEL TANK FITT 5 92027-1134 1
DAMPER,FUEL TANK,REAR 6 92075-1114 1
DAMPER,FUEL TANK,FRON 7 92075-1115 2
DAMPER,FUEL TANK,FITT 8 92075-1116 1
"0" RING 9 92055-1067 1
COVER,FUEL GAGE 10 14025-1091 1
GAUGE,FUEL 11 52005-1014 1
SCREW PAN HEAD 5X8 12 220B0508 5
WASHER SPRING 5MM 13 461F0500 5
TUBE-BREATHER (BULK) 14 702A071000 1
CLAMP,CHAIN OILER 15 92037-147 1
CAP ASSY,FUEL TANK 16 51048-1019 1
GASKET,FUEL TANK CAP 17 11009-1051 1
OIL SEAL,FUEL TANK 18 92093-1030 1
WASHER,PLAIN 19 92022-1038 2
CLAMP FUEL PIPE 20 92037-010 1
"0" RING 21 92055-1023 2
TUBE,RUBBER,7X10X280 22 702A07280 1
TAP ASSY,FUEL 23 51023-1028 1
BREATER,FUEL TANK 24 14069-1004 1
"0" RING 25 51039-010 1
TUBE,RUBBER,7X10X400 26 702A07400 1
"0" RING 27 92055-1036 1
BOLT,6X20,FUEL TAP 28 92001-1091 2
WASHER-PLAIN 29 92022-183 2
EMBLEM,FUEL TANK,L.H 30 56014-1029 1
EMBLEM,FUEL TANK,R.H 31 56014-1030 1
EMBLEM BASE,FUEL TANK 32 56014-1031 1
EMBLEM BASE,FUEL TANK 33 56014-1032 1
SCREW-PAN-CROS 34 220C0308 4
COVER,FUEL TANK 35 14025-1238 1
