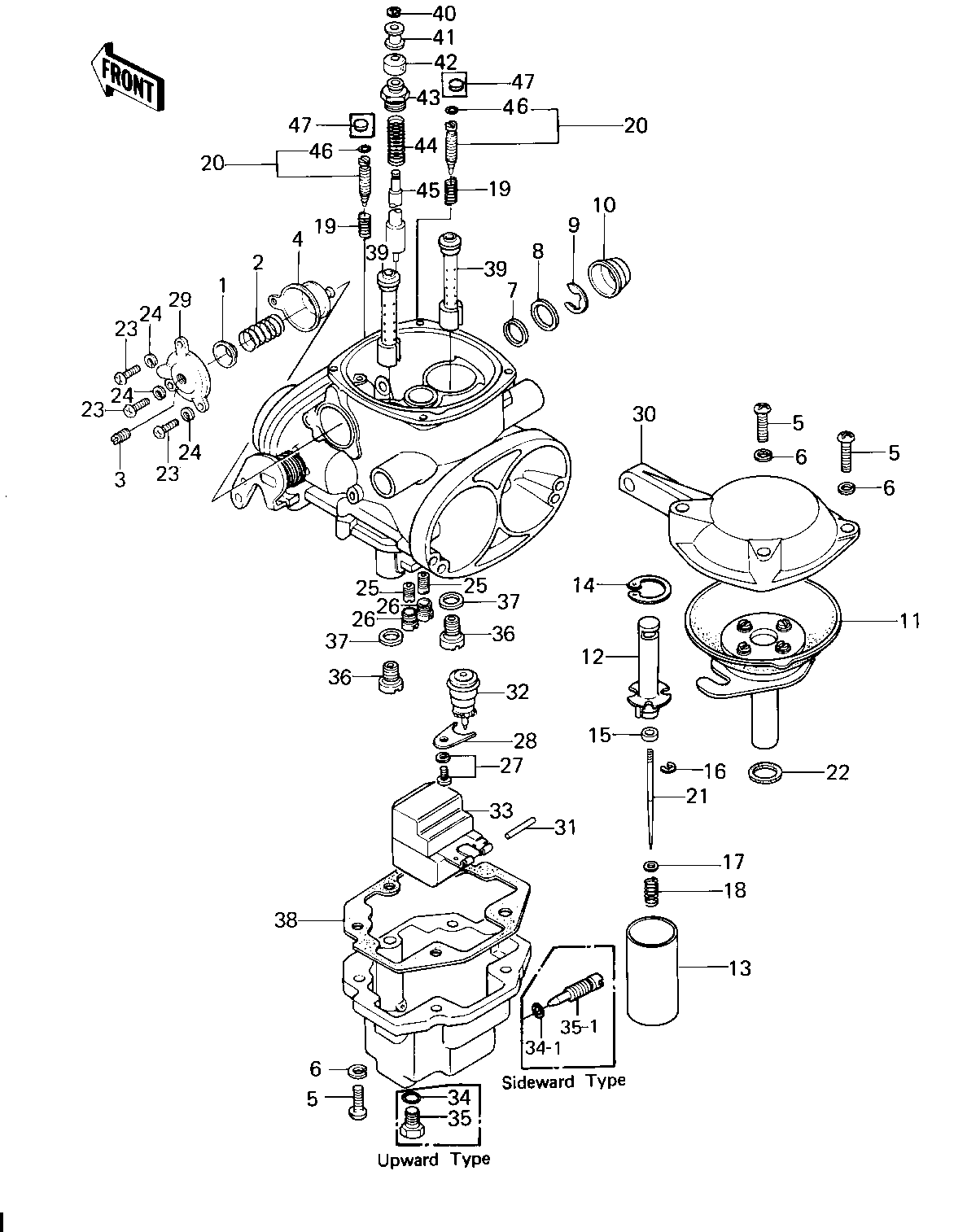

1979 KZ1300-A1 - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RETAINER,DPHRGM SPRNG 1 43027-1004 3
SPRING,RICHER DPHRGM 2 92081-1156 3
SCREW,SLOTTED 3 45007-1001 3
DIAPHRAGM,RICHER 4 43028-1017 3 KZ1300-A1
DIAPHRAGM,RICHER 4 43028-1017 3 KZ1300-A2
SCREW, PAN HEAD, 5 X 16 5 220B0516A 14
WASHER SPRING 5MM 6 461F0500 14
OIL SEAL 7 92093-1027 3
WASHER,PLAIN 8 92022-1150 3
CIRCLIP 9 92037-1140 3
CAP,STEEL 10 39031-1002 2
DIAPHRAGM ASSY,VACUUM 11 43028-1014 3
HOLDER,PISTON VALVE 12 13091-1056 6
VALVE,PISTON 13 16025-1029 6
CIRCLIP 14 92033-1009 6
RING,JET NEEDLE 15 92027-1115 6
CIRCLIP 16 16008-014 6
WASHER,JET NEEDLE 17 92022-1123 6
SPRING,JET NEEDLE 18 92081-1126 6
SPRING,PILOT SCREW 19 16022-016 6
SCREW,PILOT ADJUSTING 20 16014-1016 6
JET NEEDLE,5P2 21 16009-1035 6 KZ1300-A1
JET NEEDLE,5P4 21 16009-1050 6 KZ1300-A2
WASHER,PLAIN,DURACON 22 92022-1155 3
SCREW PAN HEAD 4X10 23 220B0410 9
WASHER SPRING 4MM 24 461F0400 9
PILOT JET,#42.5 25 92064-1024 6
SCREW,HOLE PLUG 26 92066-1044 6
SCREW-CLAMP 27 16033-014 3
PLATE, LOCK 28 13169-1190 3
COVER,COASTING RICHER 29 14025-1158 3
TOP,MXNG CHAMBER,L.H. 30 14025-1159 1
TOP,MXNG CHAMBER,CENT 30 14025-1160 1
TOP,MXNG CHAMBER,R.H. 30 14025-1161 1
FLOAT PIN 31 16032-003 3
FLOAT VALVE ASSY 32 16030-1005 3
FLOAT 33 16031-1006 3
"0" RING,MAIN JET COV 34 16038-016 3
"0" RING 34-1 92055-044 3
BOLT,HEX HEAD,DRAIN 35 92066-1045 3
SCREW,DRAIN 35-1 92066-1064 3
MAIN JET,#110R 36 92063-1038 6
MAIN JET,#A105R 36 92063-1042 6 RACING USE ONLY
JET-MAIN NO 107.5R 36 92063-073 6 RACING USE ONLY
JET-MAIN NO 115R 36 92063-076 6 RACING USE ONLY
WASHER MAIN JET 37 16034-001 6
GASKET,FLOAT CHAMBER 38 11009-1148 3
NEEDLE JET,Y-8 39 16017-1038 6
CIRCLIP 40 16076-003 3
COLLAR 41 16073-014 3
RUBBER CAP,STARTER PL 42 16036-017 3
CAP,STARTER PLUNGER 43 16012-1005 3
SPRING,STARTER PLUNGR 44 92081-1163 3
PLUNGER,STARTER 45 16016-1005 3
"O" RING 46 16038-022 6
PLUG,PILOT SCREW 47 92066-1051 6 KZ1300-A2
