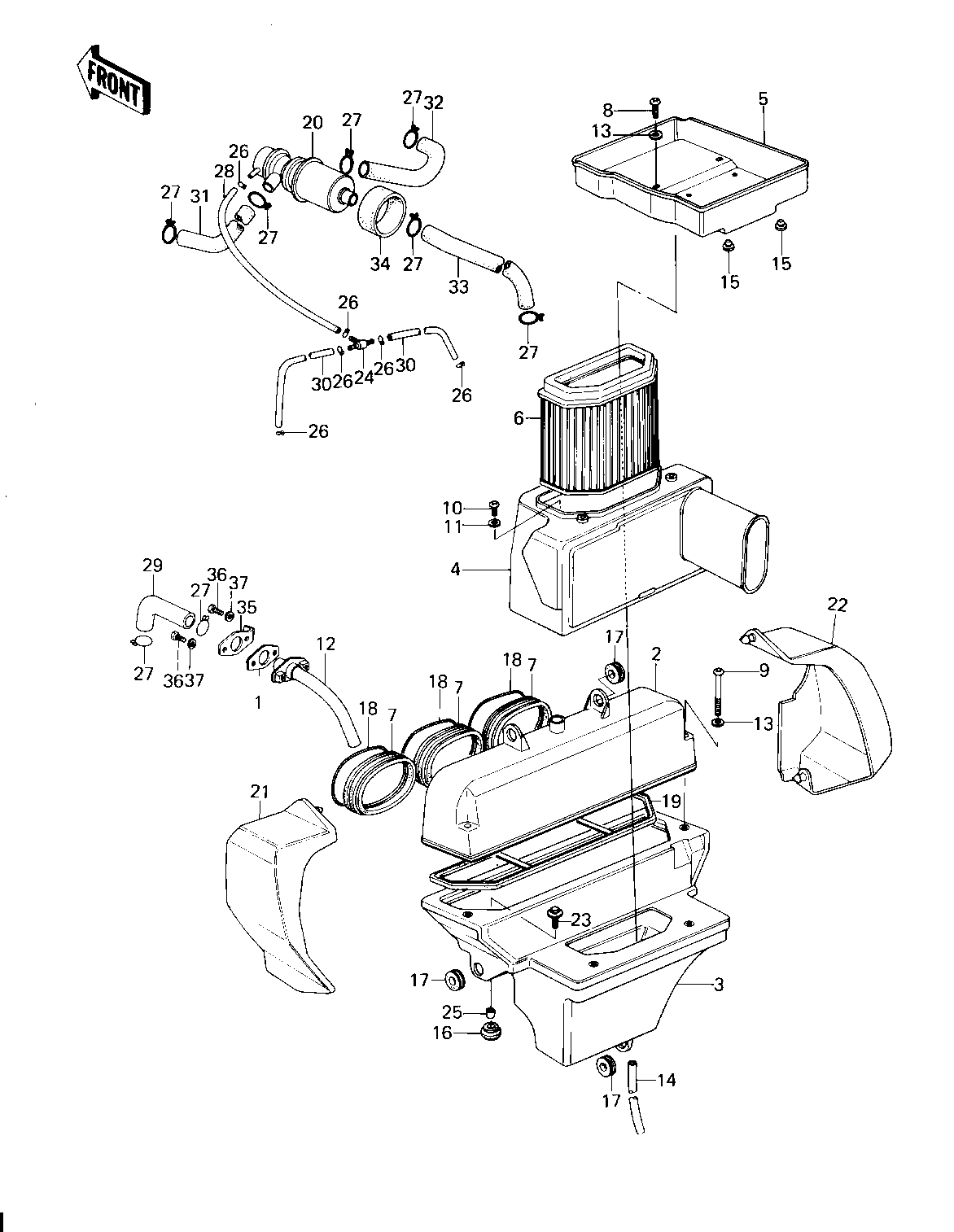

1979 KZ1300-A1 - AIR CLEANER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,BREATHER PIPE 1 11009-1097 1
CASE,AIR CLEANER,FRNT 2 11011-1021 1
CASE,AIR CLEANER LOWR 3 11011-1022 1
CASE,AIR CLEANER,REAR 4 11011-1023 1
CAP,AIR CLEANER 5 11012-1062 1
ELEMENT,AIR CLNR 6 11013-1014 1
DUCT,AIR CLEANER 7 14073-1015 3
SCREW PAN HEAD 6X20 8 220B0620 2
SCREW PAN HEAD 6X55 9 220B0655 2
SCREW PAN HEAD 6X12 10 220B0612 2
WASHER PLAIN 6MM 11 410B0600 2
PIPE,BREATHER 12 32032-1199 1
WASHER PLAIN 6MM 13 411B0600 4
TUBE, CLEANER DRAIN, ACTUAL L = 150 14 700Q06200 1 KZ1300-A1/A2
TUBE-RUBBER,6X110 14 702A06110 1 KZ1300-A3
PLUG,RUBBER 15 92074-028 2
DAMPER,AIR CLEANER 16 92075-1124 2
DAMPER,CLEANER COVER 17 92075-1126 3
SPRING,CLEANER DUCT 18 92081-1150 3
SEAL,CLEANER LWR CASE 19 92093-1025 1
VALVE ASSY,AIR SWITNG 20 16126-1015 1
COVER-SIDE-SUB,AIR CL 21 36002-5499 1 KZ1300A1/A2
COVER-SIDE AR FLTR,LH 21 36001-1121 1 KZ1300-A3
COVER-SIDE-SUB,AIR CL 22 36002-5499 1 KZ1300-A1/A2
COVER SIDE AR FLTR RH 22 36001-1122 1 KZ1300-A3
BOLT,6X25,W/WASHER 23 92001-1140 2
FITTING,TUBE 24 92005-1017 1
COLLAR 6.8X10X10.5 25 92027-120 2
CLAMP-PIPE 26 92037-072 6
CLAMP,BREATHER TUBE 27 92037-213 8
TUBE,VACUUM,LONG 28 92059-1162 1
TUBE,BREATHER PIPE 29 92059-1053 1
TUBE,4X5X100,VACUUM 30 92059-1058 2
TUBE,SWITCH VALVE,L.H 31 92059-1076 1
TUBE,SWITCH VALVE,R.H 32 92059-1077 1
TUBE,SWITH VALVE,CLNR 33 92059-1078 1
DAMPER,AIR SWITCHNG,V 34 92075-1195 1
BRACKET,FUEL VALVE 35 11034-1561 1
BOLT-UPSET,6X16 36 112G0616 2
WASHER SPRING 6MM 37 461F0600 2
