Parts Diagrams |

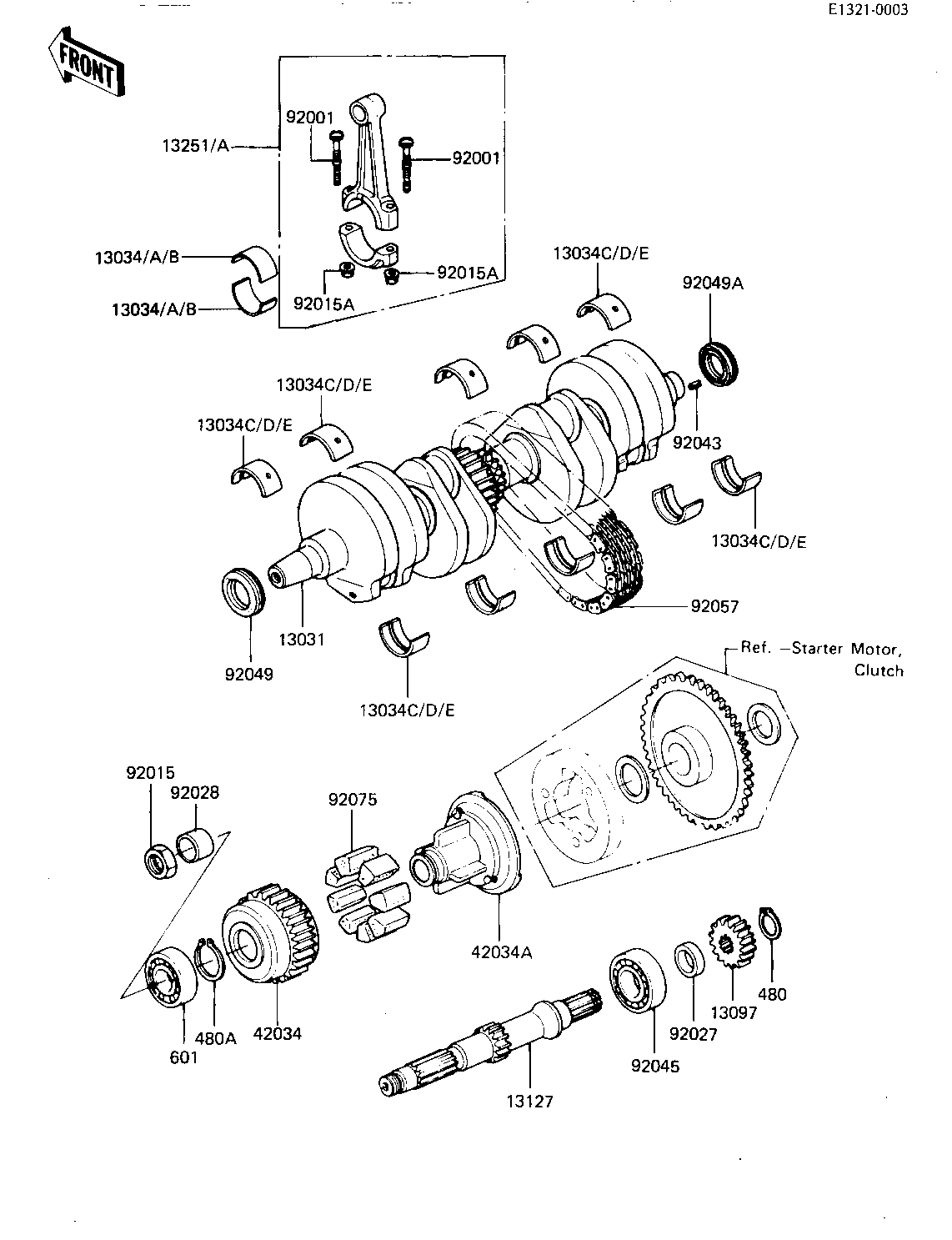

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANK SHAFT ASSY | 13031 | 13031-1014 | 1 | ||
| BUSHING,CONNECTING RO | 13034 | 13034-1067 | AR | ||
| BUSHING,CONNECTING RO | 13034A | 13034-1068 | AR | ||
| BUSHING,CONNECTING RO | 13034B | 13034-1069 | AR | ||
| METAL,BRG,"BROWN"MARK | 13034C | 13034-1016 | AR | ||
| METAL,BRG"BLACK"MARK | 13034D | 13034-1017 | AR | ||
| METAL,BRG,"BLUE"MARK | 13034E | 13034-1018 | AR | ||
| GEAR,PRIMARY,26T | 13097 | 13097-1008 | 1 | ||
| SHAFT,SECONDARY | 13127 | 13127-1007 | 1 | ||
| ROD-ASSY-CONNECTING | 13251 | 13251-1004-JJ | 4 | ||
| ROD-ASSY-CONNECTING | 13251A | 13251-1004-JJ | 4 | ||
| COUPLING,OUTER | 42034 | 42034-1004 | 1 | ||
| COUPLING,INNER | 42034A | 42034-1005 | 1 | ||
| BOLT,CONNECTING ROD | 92001 | 92001-1793 | 8 | ||
| NUT 18MM | 92015 | 92015-019 | 1 | ||
| NUT,CONNECTING ROD | 92015A | 92016-060 | 8 | ||
| COLLAR | 92027 | 92027-1438 | 1 | ||
| BUSHING,SECONDARY | 92028 | 92028-1037 | 1 | ||
| PIN-SPRING,4X8 | 92043 | 555A0408 | 1 | ||
| BEARING,BALL,#63/22X | 92045 | 92045-1017 | 1 | ||
| OIL SEAL,HSCY 25X36X7 | 92049 | 92049-1013 | 1 | ||
| OIL SEAL,HSCY25397 | 92049A | 92050-081 | 1 | ||
| CHAIN,#63-139X50L | 92057 | 92057-1011 | 1 | ||
| DAMPER RUBBER,COUPLNG | 92075 | 92075-1070 | 8 | ||
| CIRCLIP,22MM | 480 | 480J2200 | 1 | ||
| CIRCLIP 28MM | 480A | 480J2800 | 1 | ||
| BEARING BALL #6205 | 601 | 601B6205 | 1 |
