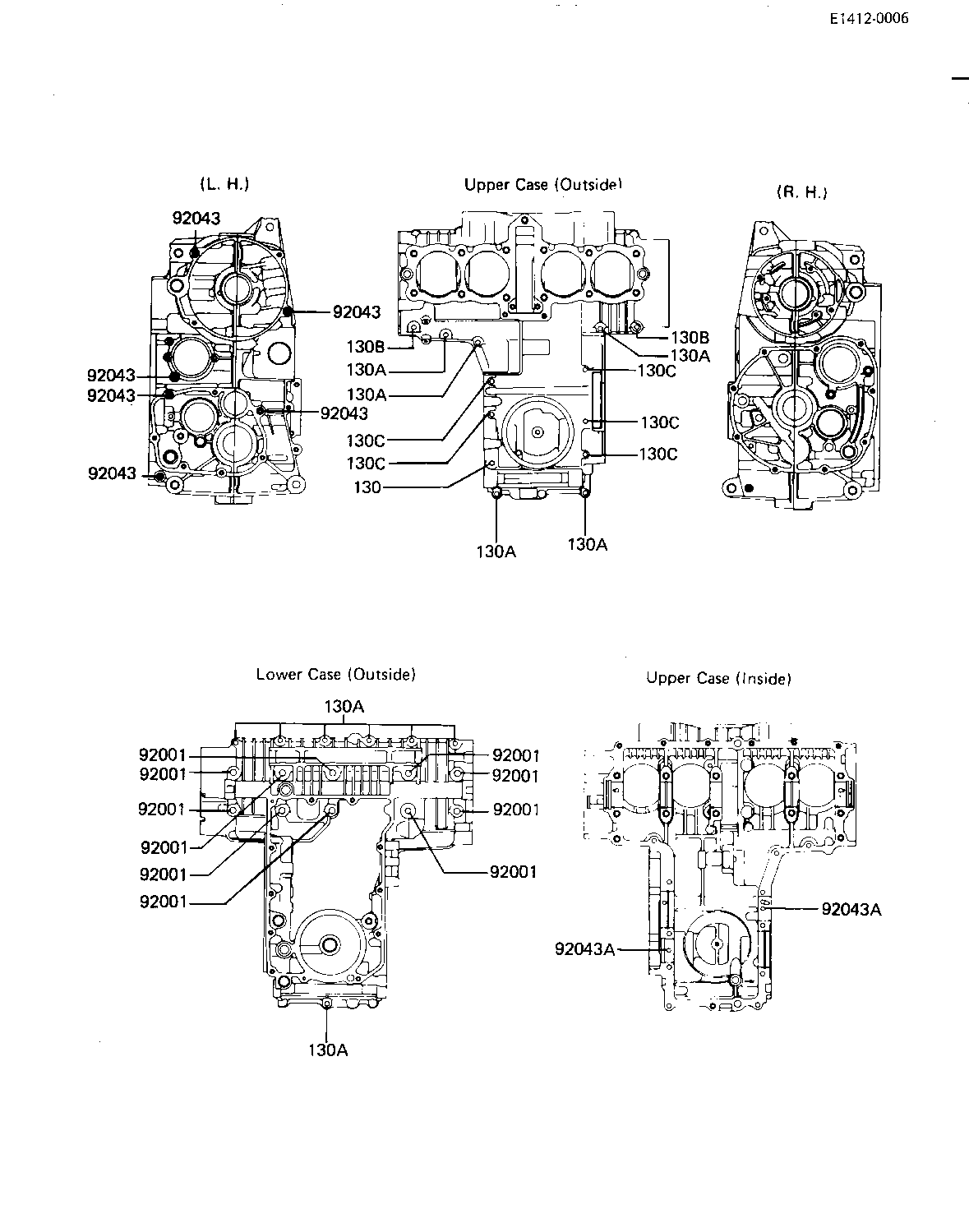

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X95 92001 130P0895 10
PIN-DOWEL 92043 92042-007 6
PIN DOWEL 6MM 92043A 92042-016 2
BOLT-FLANGED,6X105 130 130G06105 1
BOLT,FLANGED,6X40 130A 130G0640 12
BOLT,FLANGED,6X55 130B 130G0655 2
BOLT-FLANGED,6X95 130C 130G0695 5
