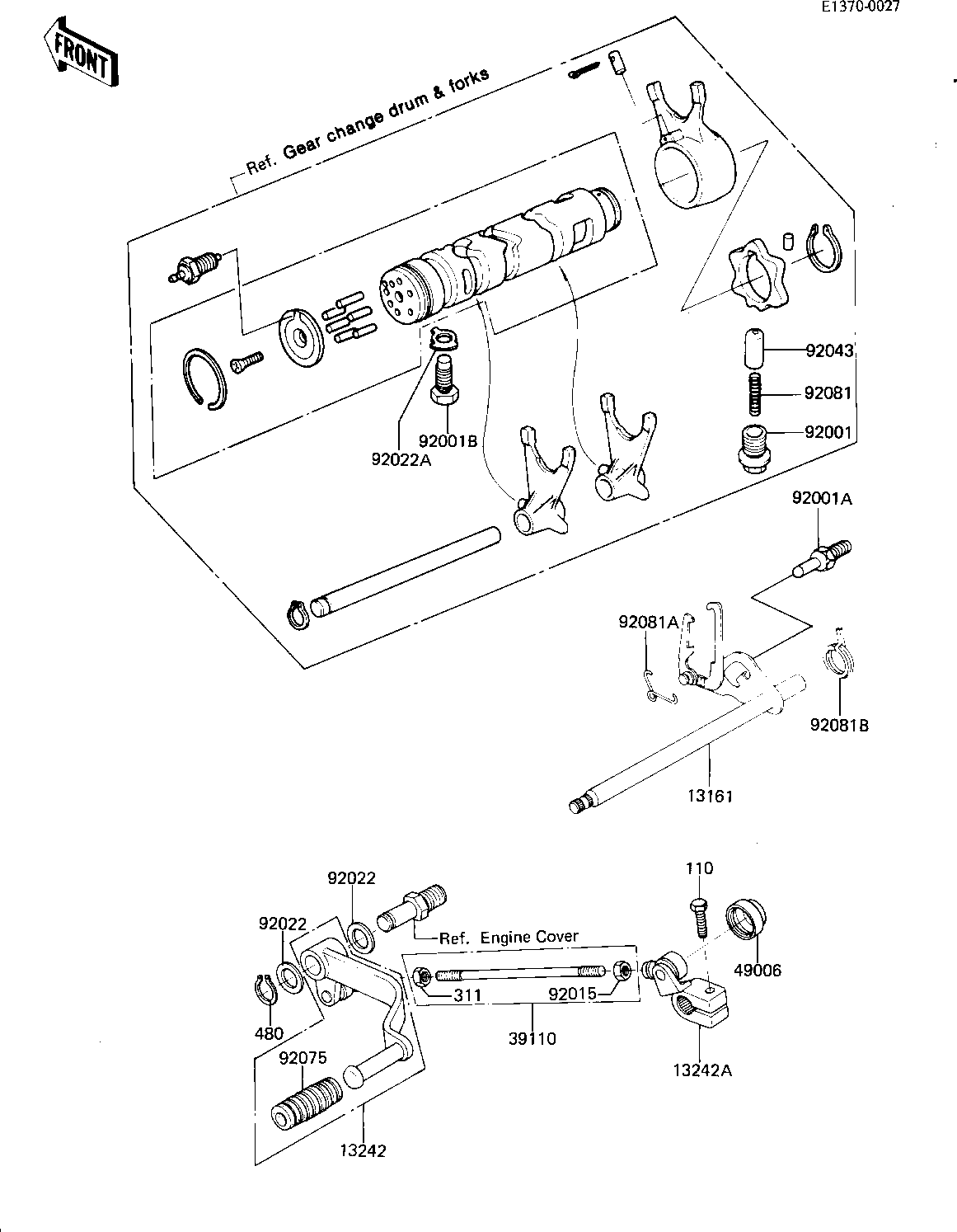

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER ASSY,GEAR SFT | 13161 | 13161-042 | 1 | ||
LEVER-ASSY-CHANGE PED | 13242 | 13242-1045 | 1 | ||
LEVER-ASSY-CHANGE,ROD | 13242A | 13242-1057 | 1 | ||
ROD-ASSY-TIE,CHANGE | 39110 | 39110-1004 | 1 | ||
BOOT,CHANGE LEVER | 49006 | 49006-1061 | 1 | ||
BOLT,NEUTRAL POSITION | 92001 | 92001-1037 | 1 | ||
BOLT,RETURN SPRING | 92001A | 92001-1401 | 1 | ||
BOLT,HEX HEAD,10X26 | 92001B | 92001-174 | 1 | ||
NUT,6MM | 92015 | 92015-1125 | 1 | ||
WASHER PLAIN 12MM | 92022 | 92022-072 | 2 | ||
WASHER,LOCK,10MM | 92022A | 92024-074 | 1 | ||
PIN-NEUTRAL POSITION | 92043 | 92043-076 | 1 | ||
DAMPER,CHANGE PEDAL | 92075 | 92160-1036 | 1 | ||
SPRING | 92081 | 92081-112 | 1 | ||
SPRING,KICK PAWL | 92081A | 92083-018 | 1 | ||
SPRING,CHG PEDL RTRN | 92081B | 92083-028 | 1 | ||
BOLT-UPSET,6X20 | 110 | 112G0620 | 1 | ||
NUT,6M/M | 311 | 311G0600 | 1 | ||
CIRCLIP 12MM | 480 | 480J1200 | 1 |
LEVER ASSY,GEAR SFT | |
REF # | 13161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE PED | |
REF # | 13242 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE,ROD | |
REF # | 13242A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-TIE,CHANGE | |
REF # | 39110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CHANGE LEVER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,NEUTRAL POSITION | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,10X26 | |
REF # | 92001B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 12MM | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,LOCK,10MM | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-NEUTRAL POSITION | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,CHANGE PEDAL | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICK PAWL | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHG PEDL RTRN | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X20 | |
REF # | 110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,6M/M | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP 12MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
