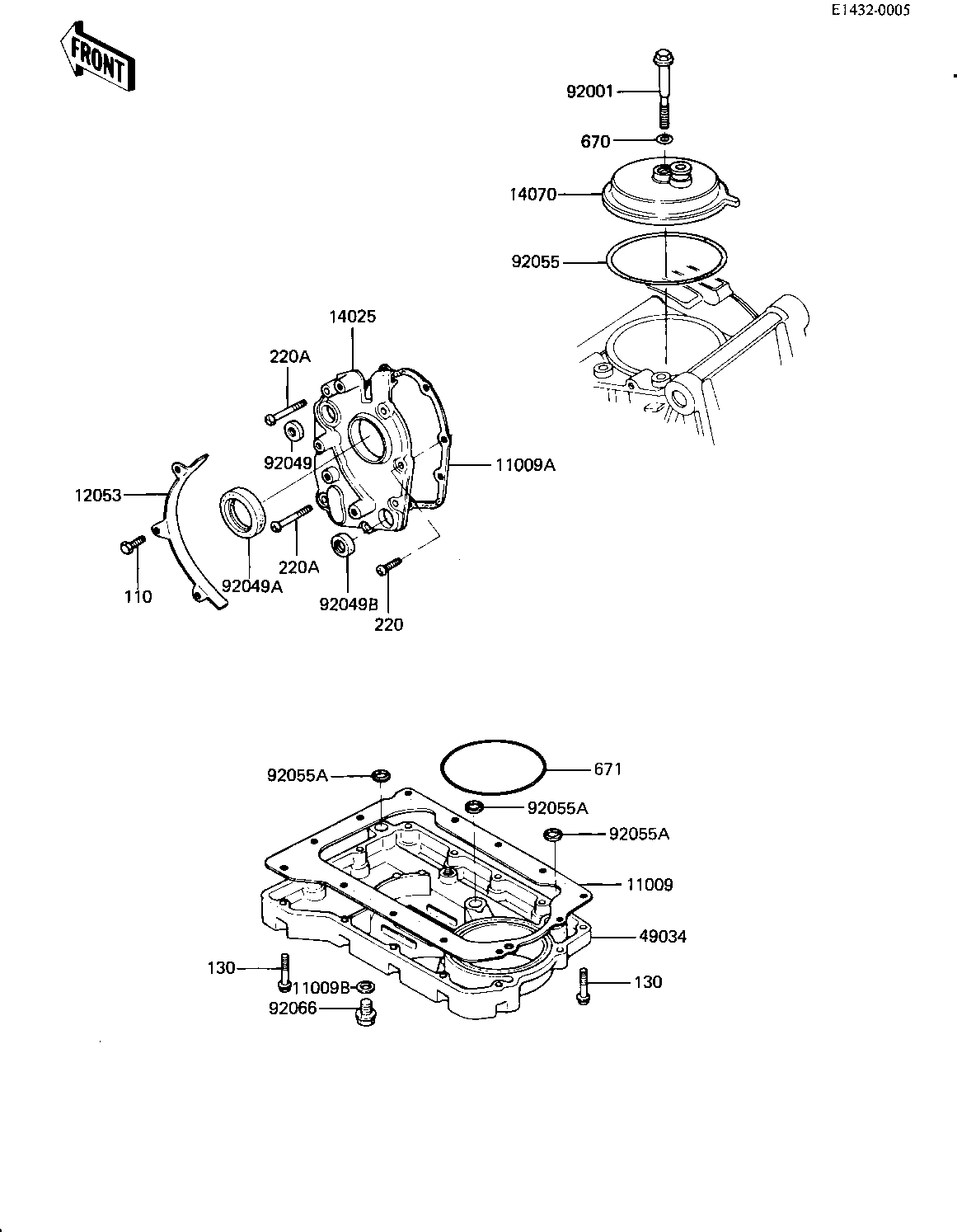

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,OIL PAN | 11009 | 11060-1057 | 1 | ||
GASKET,TRANSMISSION C | 11009A | 11060-1056 | 1 | ||
GASKET,DRIN PLUG | 11009B | 92065-097 | 1 | ||
GUIDE,CHAIN | 12053 | 12053-1006 | 1 | ||
COVER,MISSION | 14025 | 14024-011 | 1 | ||
BODY-BREATHER | 14070 | 14070-1008 | 1 | ||
PAN-OIL | 49034 | 49034-1011 | 1 | ||
BOLT,HEX HEAD,8X72 | 92001 | 92003-107 | 1 | ||
OIL SEAL,SD-8187 | 92049 | 92049-1017 | 1 | ||
OIL SEAL SC325210 | 92049A | 92050-024 | 1 | ||
OIL SEAL,TB13225.5 | 92049B | 92051-005 | 1 | ||
"O" RING,91MM | 92055 | 92055-052 | 1 | ||
"O" RING | 92055A | 92055-077 | 3 | ||
PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 | ||
BOLT-UPSET 6X14 | 110 | 112B0614 | 3 | ||
BOLT,FLANGED,6X25 | 130 | 130G0625 | 13 | ||
SCREW PAN HEAD 6X20 | 220 | 220B0620 | 5 | ||
SCREW PAN HEAD 6X40 | 220A | 220B0640 | 2 | ||
"O" RING,8MM | 670 | 670B1508 | 1 | ||
"0" RING,90MM | 671 | 671B2590 | 1 |
GASKET,OIL PAN | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,TRANSMISSION C | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,DRIN PLUG | |
REF # | 11009B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,CHAIN | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,MISSION | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-BREATHER | |
REF # | 14070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAN-OIL | |
REF # | 49034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,8X72 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL,SD-8187 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL SC325210 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL,TB13225.5 | |
REF # | 92049B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"O" RING,91MM | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"O" RING | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PLUG,OIL DRAIN,12X15 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 110 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X25 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 13 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X20 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X40 | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
"O" RING,8MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,90MM | |
REF # | 671 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
