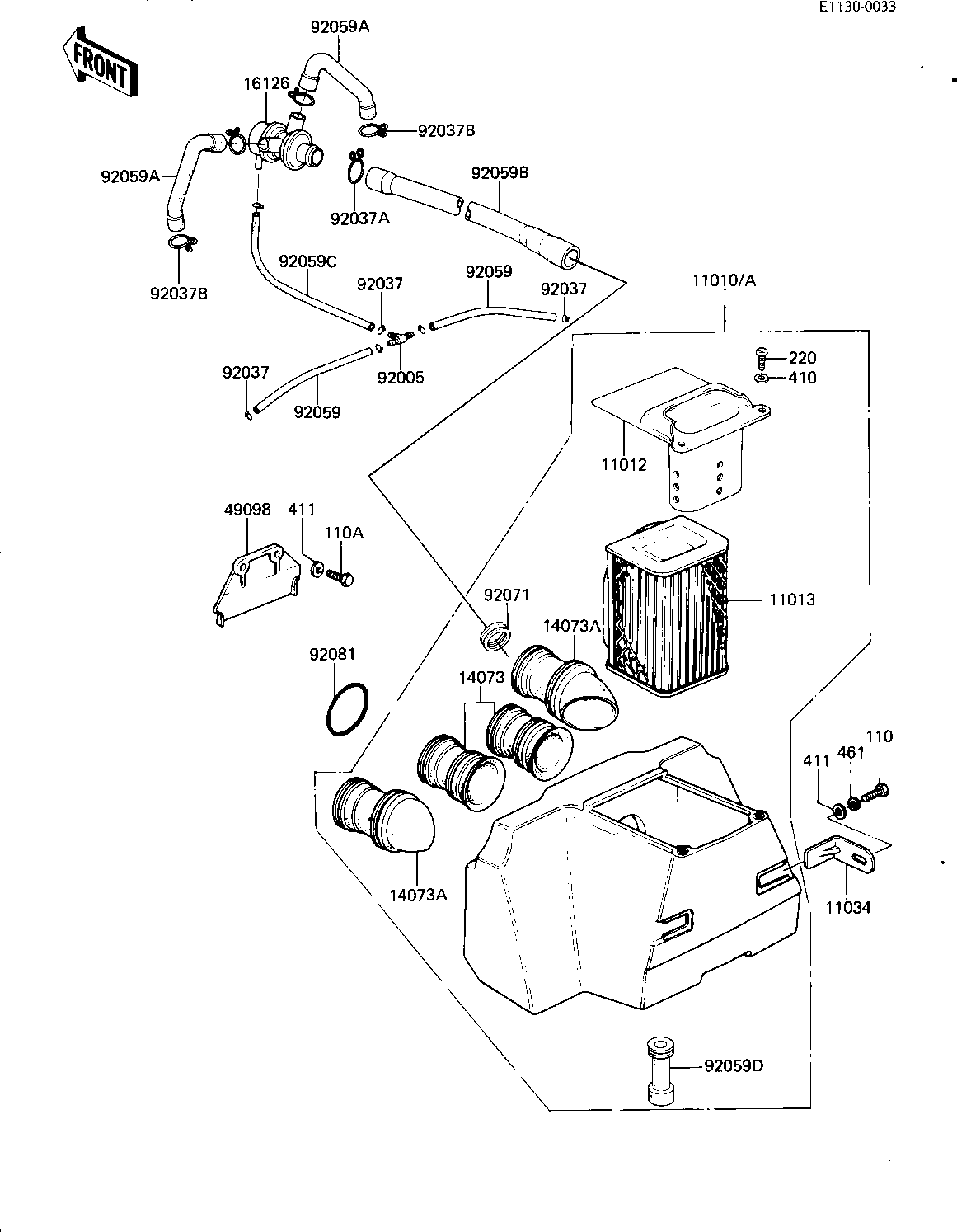

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-1103 | 1 | US | |
| FILTER-ASSY-AIR (Canada) | 11010A | 11010-1104 | 1 | CN | |
| CAP,AIR FILTER | 11012 | 11012-1183 | 1 | ||
| ELEMENT,AIR CLNR | 11013 | 11013-1013 | 1 | ||
| BRACKET,AIR CLEANER | 11034 | 32070-038 | 2 | ||
| INLET DUCT,#2,3 | 14073 | 11015-057 | 2 | ||
| INLET PIPE,#1.4 | 14073A | 11015-063 | 2 | ||
| VALVE ASSY,AIR SWITCH | 16126 | 16126-1017 | 1 | US | |
| BAFFLE PLT,AIR CLEANE | 49098 | 11019-003 | 1 | ||
| FITTING,TUBE | 92005 | 92005-1017 | 1 | US | |
| CLAMP-PIPE | 92037 | 92037-072 | 6 | US | |
| CLAMP | 92037A | 92037-1076 | 1 | US | |
| CLAMP,BREATHER TUBE | 92037B | 92037-213 | 4 | US | |
| TUBE,VACUUM,LONG | 92059 | 92059-1162 | 2 | US | |
| TUBE | 92059A | 92059-1034 | 2 | US | |
| TUBE,19X21X340L | 92059B | 92059-1039 | 1 | US | |
| TUBE,4X9X220L | 92059C | 92059-1040 | 1 | US | |
| TUBE,BREATHER,10X63L | 92059D | 92059-1200 | 1 | ||
| GROMMET,AIR CLEANER | 92071 | 92071-1013 | 1 | US | |
| SPRING,INLET DUCT | 92081 | 92081-1351 | 4 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
| BOLT-UPSET | 110A | 112G0618 | 2 | ||
| SCREW PAN HEAD 6X12 | 220 | 220B0612 | 2 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 4 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 |
| FILTER-ASSY-AIR | |
| REF # | 11010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| FILTER-ASSY-AIR (Canada) | |
| REF # | 11010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| CAP,AIR FILTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,AIR CLEANER | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| INLET DUCT,#2,3 | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| INLET PIPE,#1.4 | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE ASSY,AIR SWITCH | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| BAFFLE PLT,AIR CLEANE | |
| REF # | 49098 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,TUBE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| CLAMP-PIPE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | US |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| CLAMP,BREATHER TUBE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | US |
| TUBE,VACUUM,LONG | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| TUBE | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| TUBE,19X21X340L | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| TUBE,4X9X220L | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| TUBE,BREATHER,10X63L | |
| REF # | 92059D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,AIR CLEANER | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| SPRING,INLET DUCT | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 110A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
