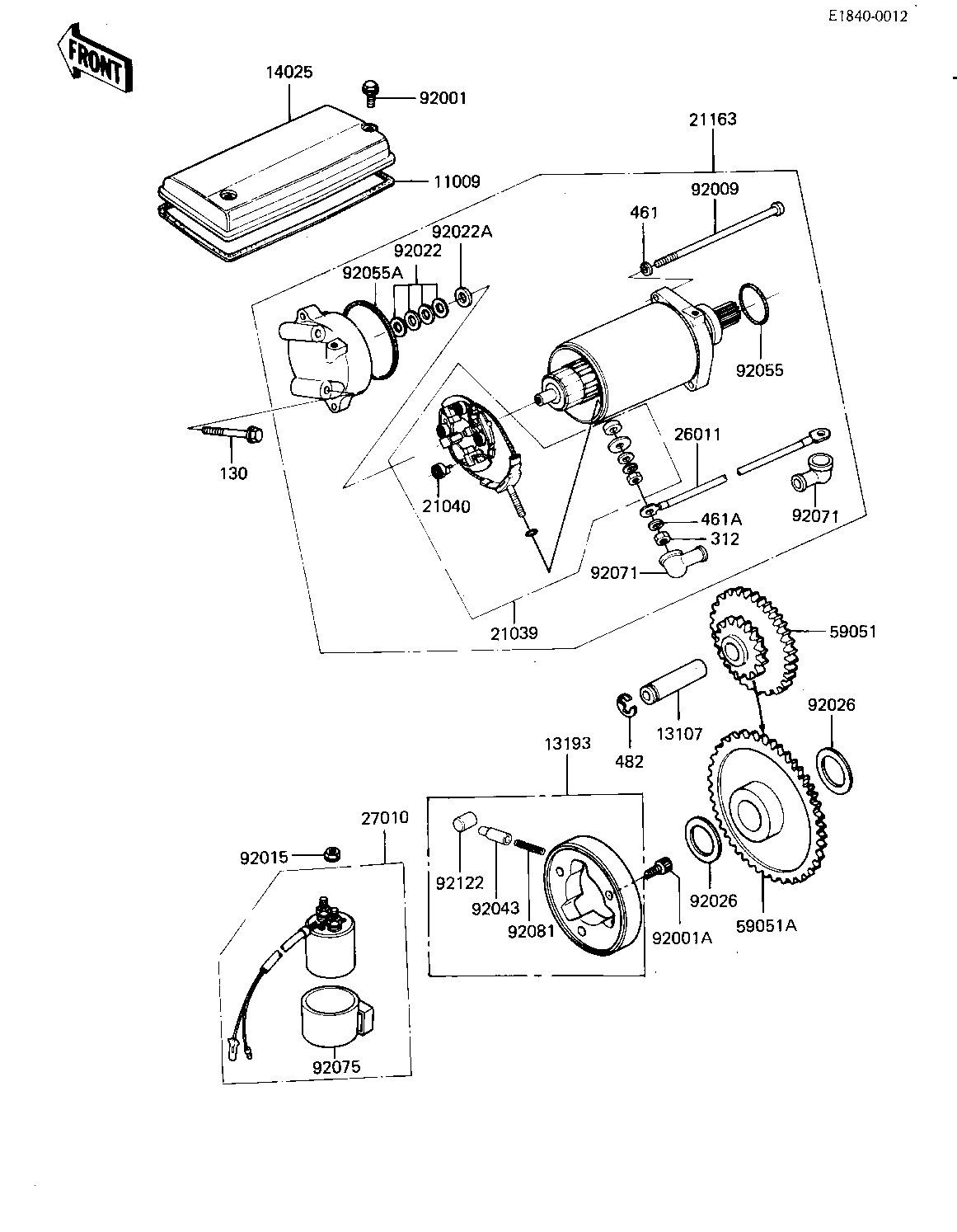

1981 GPz - STARTER MOTOR/STARTER CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,STARTER COVER 11009 11009-1069 1
SHAFT,IDLE GEAR 13107 13107-1006 1
CLUTCH ASSY,ONEWAY 13193 13193-1002 1
COVER,STARTER MOTOR 14025 14025-1379 1
BRUSH SET,CARBON 21039 21039-1005 1
SPRING,CARBON BRUSH 21040 21040-1002 4
STARTER-ELECTRIC 21163 21163-1031 1
WIRE,STARTER MOTOR 26011 26011-1073 1
SWITCH ASSY,MAGNETIC 27010 21164-005 1
GEAR,STARTER IDLE 59051 59051-1011 1
GEAR,ONEWAY CLUTCH 59051A 16085-1030 1
BOLT,6X10 92001 92001-1151 2
BOLT,SOCKET,8X10 92001A 92001-1424 3
SCREW,PAN HEAD,6X110 92009 21015-005 2
NUT-6MM 92015 92015-1078 2
WASHER,THRUST,0.2T 92022 21025-011 4
WASHER,THRUST,0.8T 92022A 92022-1132 1
SPACER,25X36X3.2 92026 92026-1025 2
PIN 92043 92043-132 3
"0" RING,STARTING MTR 92055 21027-004 1
"0" RING,STARTER MOTR 92055A 92055-1086 1
GROMMET,CORD 92071 21017-017 2
DAMPER MAG SWITCH SHK 92075 21064-002 1
SPRING,COIL 92081 92081-159 3
ROLLER 92122 92122-006 3
BOLT,FLANGED,6X55 130 130G0655 2
NUT 6MM 312 312B0600 1
WASHER SPRING 5MM 461 461F0500 2
WASHER SPRING 6MM 461A 461F0600 1
CIRCLIP 12MM 482 482K0200 1
