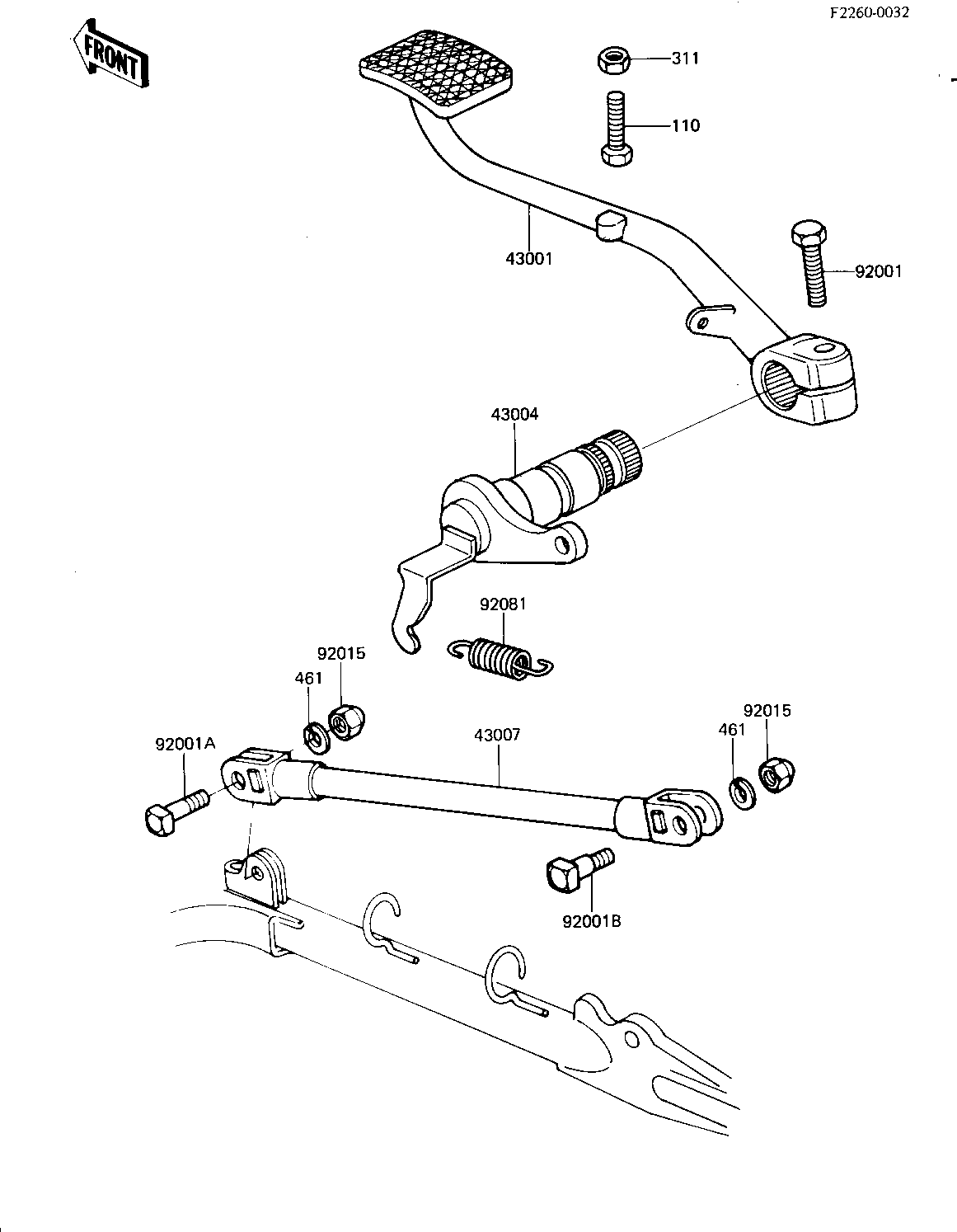

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1065 1
SHAFT-BRAKE,PEDAL 43004 43004-1024 1
TORQUE ROD,REAR BRAKE 43007 43007-1015 1
BOLT-FLANGED,8X25 92001 130G0825 1
BOLT,TORQUE ROD FRONT 92001A 92001-1208 1
BOLT,SQUARE HEAD 92001B 92001-1307 1
NUT,10MM 92015 92015-1429 2
SPRING,BRAKE PEDAL 92081 92081-1147 1
BOLT-UPSET,6X20 110 112G0620 1
NUT 6MM 311 311B0600 1
WASHER SPRING 10MM 461 461F1000 2
