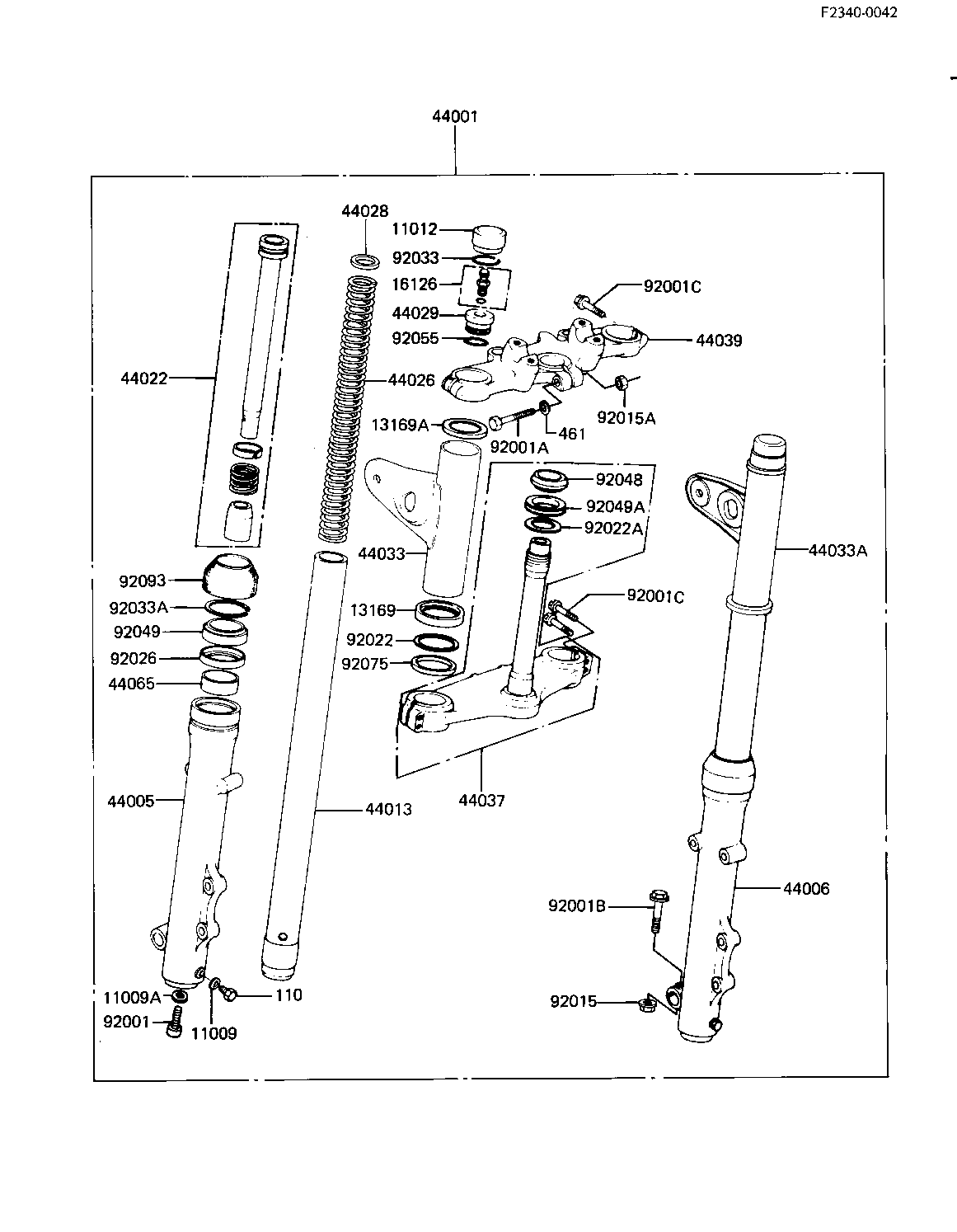

1981 GPz - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DRAIN PLUG 11009 44045-047 2
GASKET,FORK CYL BOLT 11009A 44045-051 2
CAP,FORK TOP 11012 11012-1136 2
GUIDE,FORK COVER,LOW 13169 13169-1134 2
GUIDE,FORK COVER,UPPE 13169A 13169-1135 2
VALVE ASSY,AIR 16126 16126-1025 2
FORK-FRONT 44001 44001-1281 1
TUBE,LH,FORK OUTER 44005 44005-1056 1
TUBE,RH,FORK OUTER 44006 44006-1056 1
PIPE-FORK INNER 44013 44013-1060 2
CYLINDER-FORK 44022 44022-1057 2
SPRING,FORK INNER 44026 44026-1077 2
GUIDE-FORK SPRING 44028 44028-1008 2
SEAT,FORK SPRING 44029 44029-1019 2
COVER-FORK,LH,CR-PLAT 44033 44033-1071 1
COVER FORK,RH FLT BLK 44033A 44033-1072 1
STEM,STEERING 44037 44037-1013 1
HEAD,STEERING STEM 44039 44039-1011 1
BUSHING, FORK 44065 44065-1011 2
BOLT,FORK CYLINDER 92001 44041-078 2
BOLT,HEX HEAD,8X55 92001A 92001-1064 1
BOLT,HEX HEAD,8X45 92001B 92001-1136 1
BOLT,8X40 92001C 92001-1149 6
NUT,8MM 92015 92015-1055 1
NUT,LOCK,8MM 92015A 92015-1124 1
WASHER,FORK COVER 92022 92022-1111 2
WASHER,PLAIN 92022A 92022-231 1
SPACER,FORK 92026 92026-1038 2
CIRCLIP,FORK TOP 92033 92033-1023 2
RING,SNAP 92033A 92033-1055 2
CONE,STEERING STEM 92048 92047-012 1
SEAL-OIL,FORK 92049 92049-1063 2
OIL SEAL,STEERING STM 92049A 92056-003 1
"0" RING 92055 92055-1034 2
DAMPER RUBBER,FORK 92075 92075-1137 2
SEAL,DUST 92093 92093-1047 2
BOLT HEX HEAD 6X8 110 110B0608 2
WASHER SPRING 8MM 461 461F0800 1
