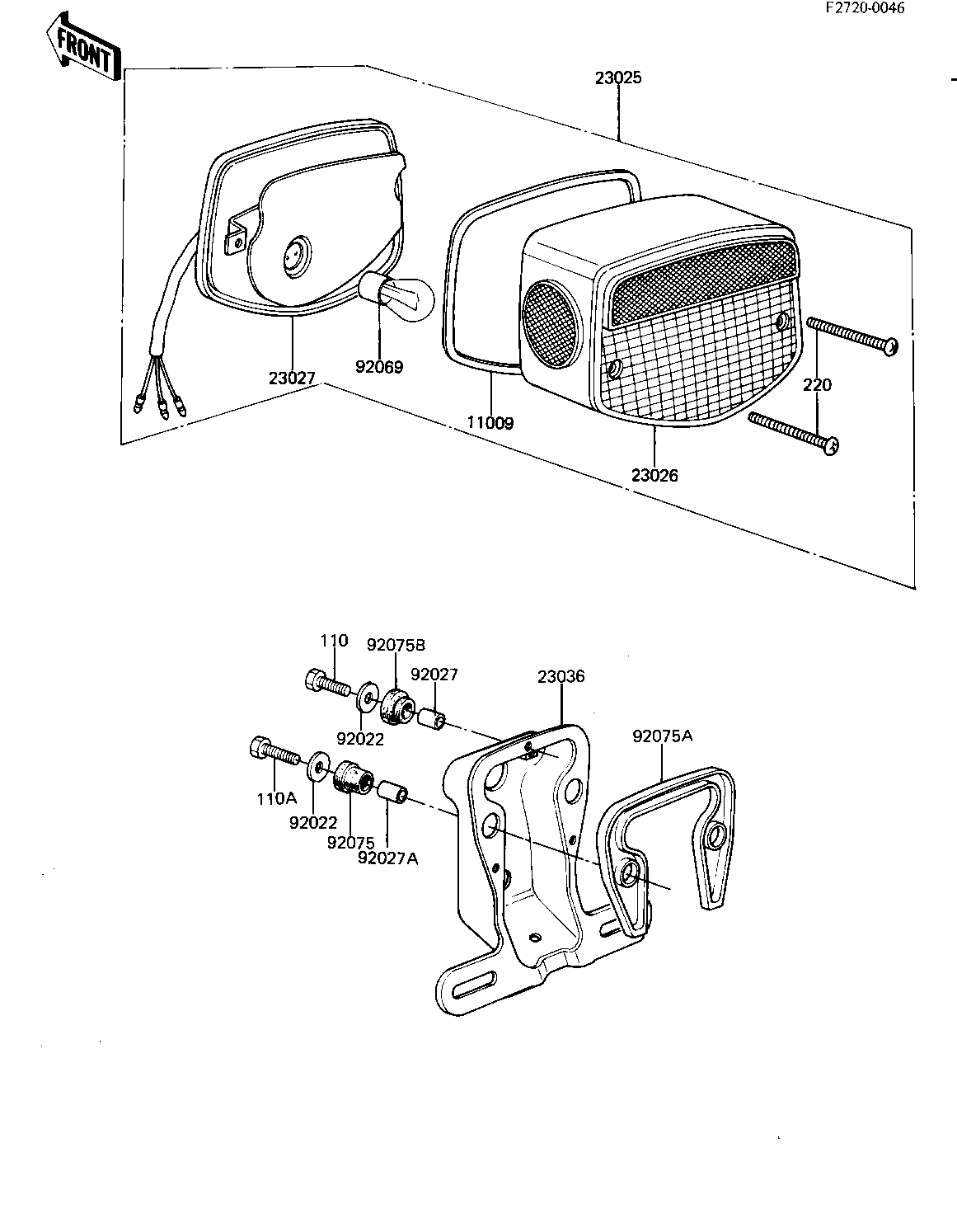

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LENS 11009 23028-021 1
TAIL LAMP UNIT 23025 23025-064 1
LENS,TAIL LAMP 23026 23026-034 1
CASE,TAIL LIGHT 23027 23027-041 1
BRACKET,TAIL LAMP 23036 23036-1011 1
WASHER 6.5X20X1.6T 92022 92022-125 5
COLLAR 6.8X10X10.5 92027 92027-120 3
COLLAR 6.8X10X14.5 92027A 92027-156 2
BULB,12V 32/3CP 92069 92069-059 1
DAMPER RUBBER 92075 92075-1092 2
DAMPER RUBBER,TAIL 92075A 92075-1103 2
DAMPER RUBBER 92075B 92075-112 3
BOLT-UPSET,6X20 110 112G0620 3
BOLT 6X22 110A 112B0622 2
SCREW-PAN-CROS 220 220R0460 2
