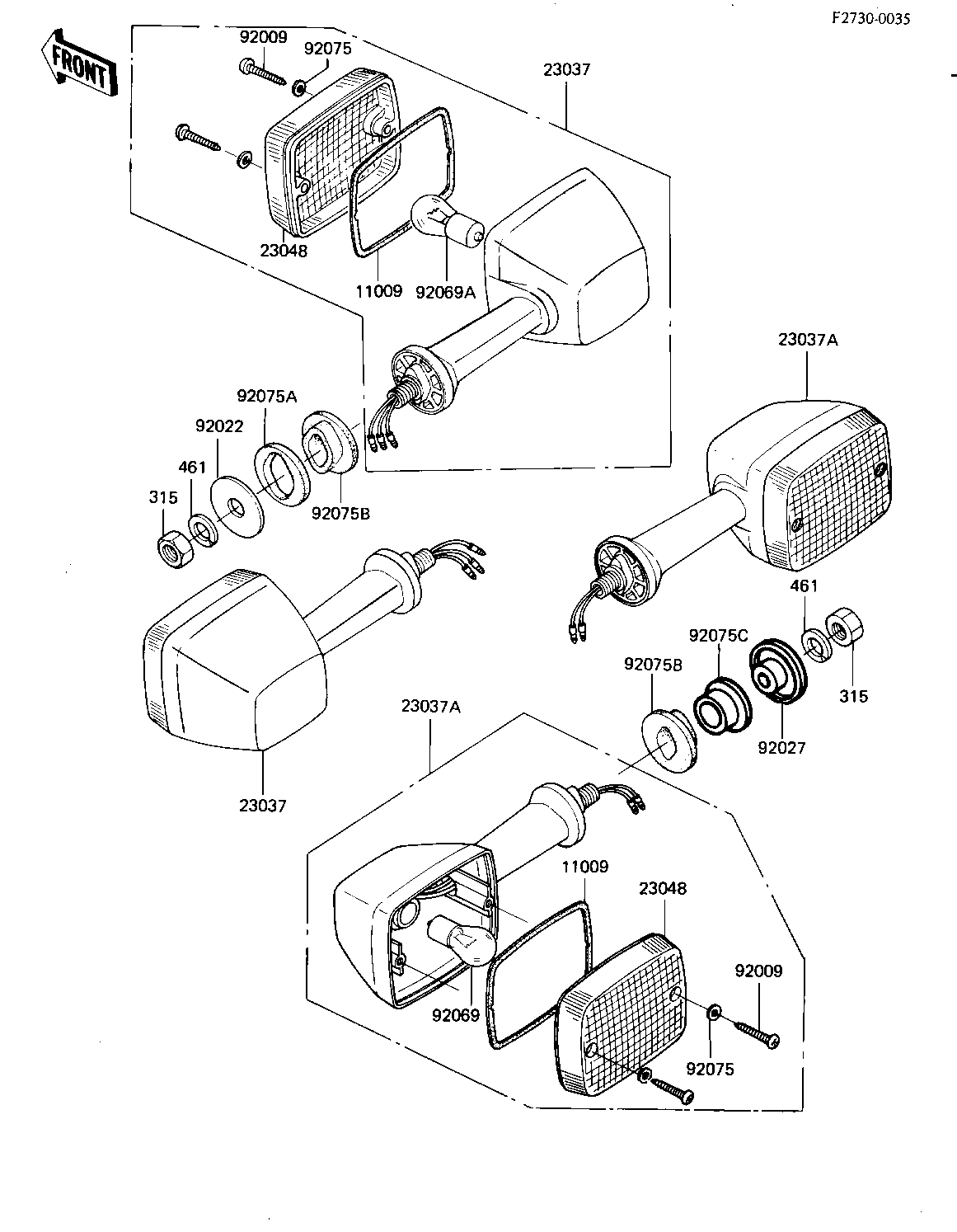

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SIGNAL LAMP 11009 11009-1150 4
LAMP-ASSY-SIGNAL,FR 23037 23037-1131 2
LAMP-ASSY-SIGNAL,RR 23037A 23037-1113 2
LENS-SIGNAL LAMP 23048 23048-1019 4
SCREW,TAPPING,4X25 92009 92009-1069 8
WASHER,10.5X37X1.6 92022 92022-1246 2
COLLAR 92027 92027-147 2
BULB 12V 32CP 92069 92069-055 2
BULB,12V 23/8W 92069A 92069-060 2
WASHER-PLAIN,4MM 92075 23058-002 8
DAMPER,SIGNAL LAMP BR 92075A 92075-1278 2
DAMPER,SIGNAL LAMP BR 92075B 92075-1279 4
DAMPER RUBBER,SIG LM 92075C 92075-158 2
NUT 10MM 315 315B1000 4
WASHER SPRING 10MM 461 461F1000 4
