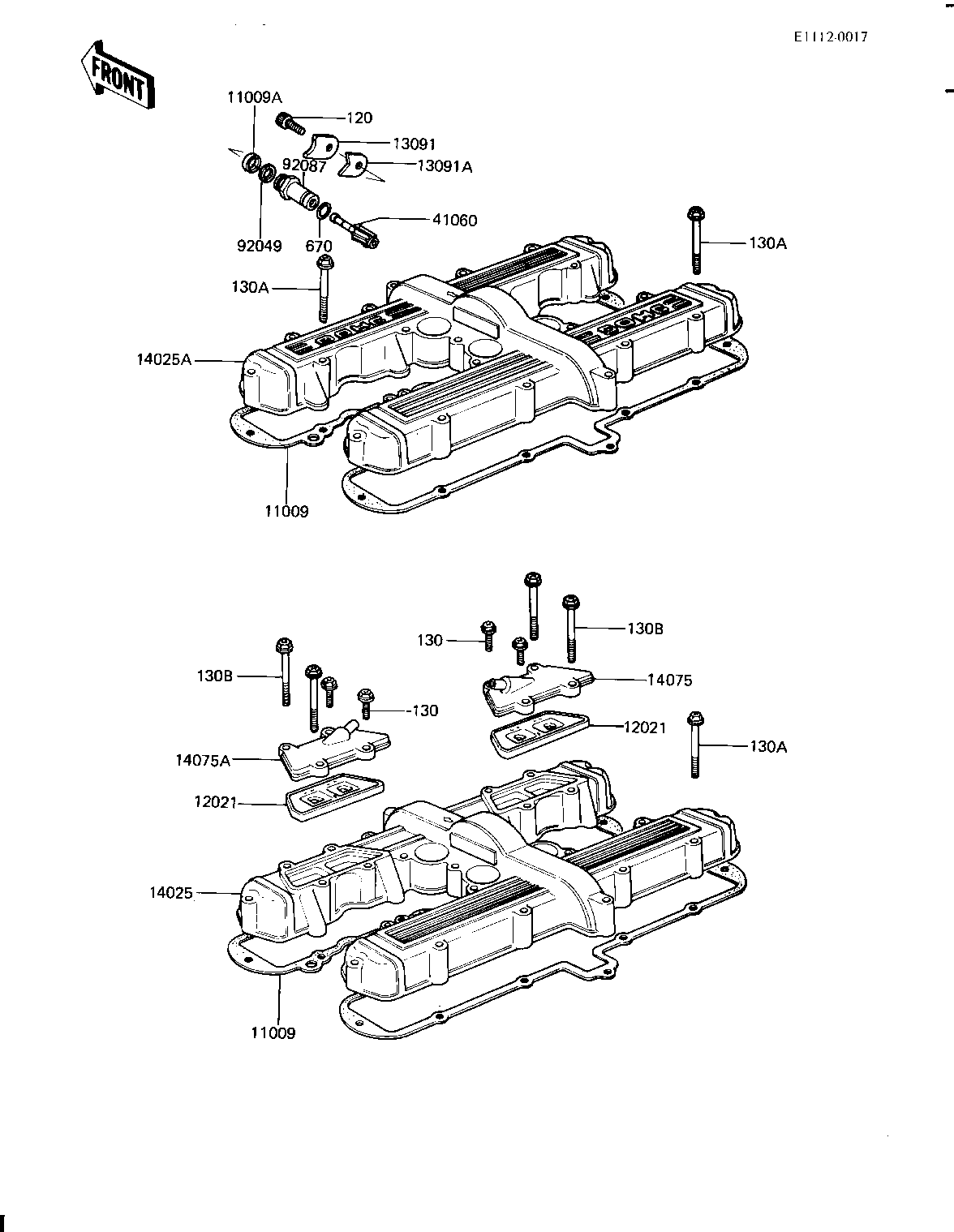

1982 CSR - CYLINDER HEAD COVER ('81-'82 H1/H2)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD 11009 11009-1237 1
GASKET,TACHOMETER GER 11009A 92065-103 1
VALVE ASSY REED 12021 12021-1003 2 US
HOLDER,TACHOMETER2.3T 13091 13091-1008 1
HOLDER,TACHOMETR,3.2T 13091A 13091-1009 1
COVER,CYLINDER HEAD,S 14025 14025-1329 1 US
COVER CYLINDER HEAD (Canada) 14025A 14025-1330 1 CN
CAP-ASSY,REED VALVE,R 14075 14075-5016 1 US
CAP-ASSY,REED VALVE,L 14075A 14075-5017 1 US
GEAR,TACHOMETER,10T 41060 13223-011 1
OIL SEAL 92049 92050-075 1
GUIDE,TACHOMETER GEAR 92087 92087-010 1
BOLT,6X14 120 120P0614 1
BOLT,FLANGED,6X20 130 130G0620 4 US
BOLT,FLANGED,6X45 130A 130G0645 20 US
BOLT,FLANGED,6X45 130A 130G0645 24 US
BOLT,FLANGED,6X65 130B 130G0665 4 US
"0" RING,10MM 670 670D1510 1
