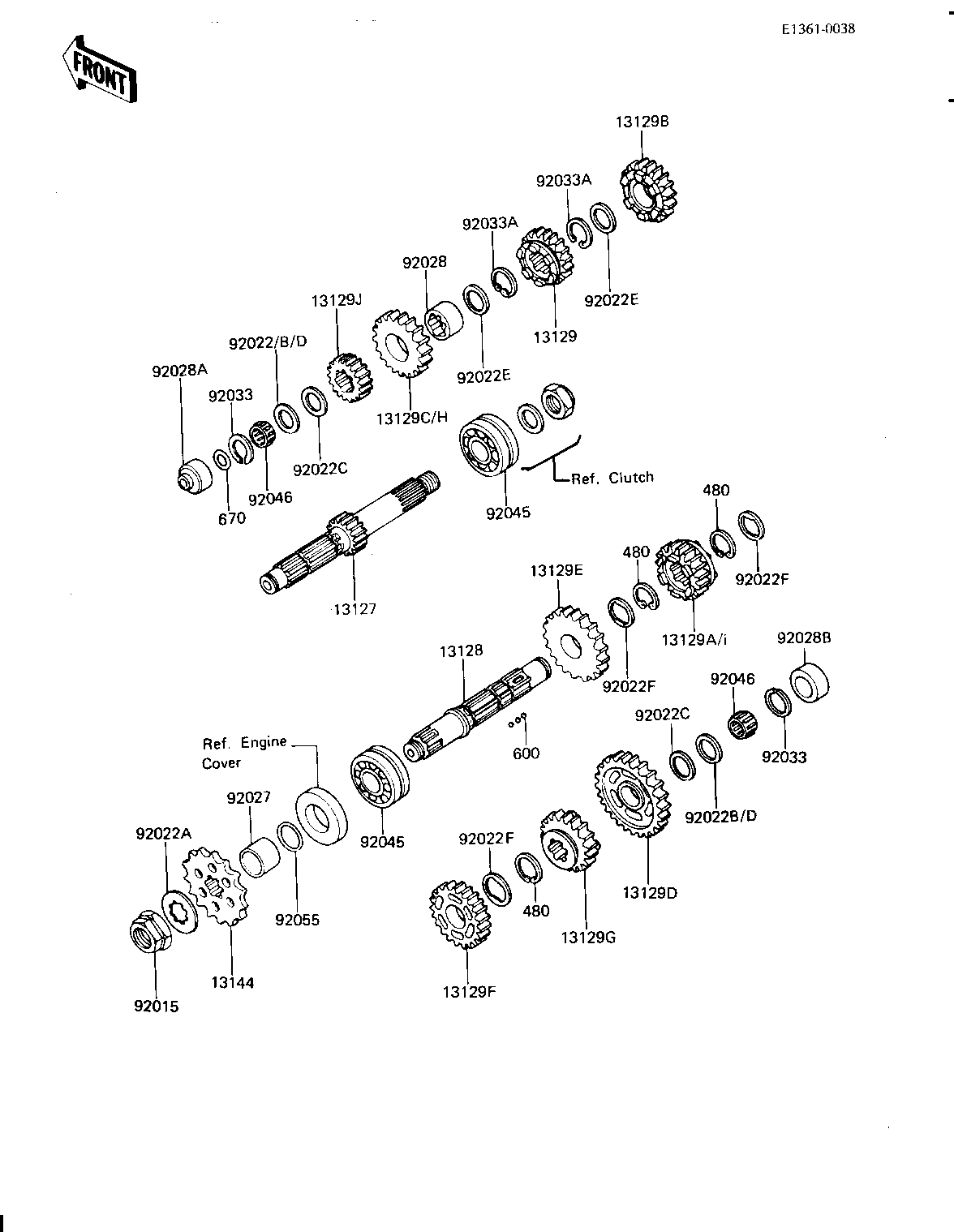

1982 CSR - TRANSMISSION ('81-'82 H1/H2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SHAFT,DRIVE | 13127 | 13127-1018 | 1 | ||
SHAFT,OUTPUT | 13128 | 13128-1012 | 1 | ||
3RD GEAR,DRIVE SHAFT | 13129 | 13129-1032 | 1 | ||
4TH GEAR,DRIVE SHAFT | 13129B | 13129-1044 | 1 | ||
LOW GEAR,OUTPUT SHAFT | 13129D | 13129-1046 | 1 | ||
2ND GEAR,OUTPUT SHAFT | 13129E | 13129-1047 | 1 | ||
3RD GEAR,OUTPUT SHAFT | 13129F | 13129-1048 | 1 | ||
4TH GEAR,OUTPUT SHAFT | 13129G | 13129-1049 | 1 | ||
TOP GEAR,DRIVE SHAFT | 13129H | 13129-1200 | 1 | ||
TOP GEAR,DRIVEN SHAFT | 13129I | 13129-1201 | 1 | ||
2ND GEAR,DRIVE | 13129J | 13130-041 | 1 | ||
ENGINE SPROCKET,13T | 13144 | 13144-1033 | 1 | ||
NUT,20MM | 92015 | 92015-1254 | 1 | ||
WASHER,PLAIN | 92022 | 92022-1026 | AR | ||
WASHER | 92022A | 92200-1065 | 1 | ||
WASHER THRUST | 92022B | 92022-112 | AR | ||
WASHER THRUST | 92022C | 92022-113 | 2 | ||
SHIM-KICK SHAFT | 92022D | 92022-144 | AR | ||
WASHER PLAIN | 92022E | 92022-161 | 2 | ||
WASHER,LOCK | 92022F | 92024-069 | 3 | ||
COLLAR,ENG SPROCKET | 92027 | 92027-288 | 1 | ||
BUSHING,DRV SHFT TOP | 92028 | 92028-1007 | 1 | ||
BUSHING,DRIVE SHAFT | 92028A | 92028-1032 | 1 | ||
BUSHING,OUTPUT SHAFT | 92028B | 92028-180 | 1 | ||
CIRCLIP | 92033 | 92033-015 | 2 | ||
CIRCLIP | 92033A | 92033-026 | 2 | ||
BEARING,BALL | 92045 | 92045-035 | 2 | ||
BEARING,VS20/14A | 92046 | 92046-1030 | 2 | ||
"O" RING | 92055 | 92055-035 | 1 | ||
CIRCLIP,30MM | 480 | 480J3000 | 3 | ||
BALL STEEL 5/32' | 600 | 600A0500 | 3 | ||
"O" RING,8MM | 670 | 670B1508 | 1 |
