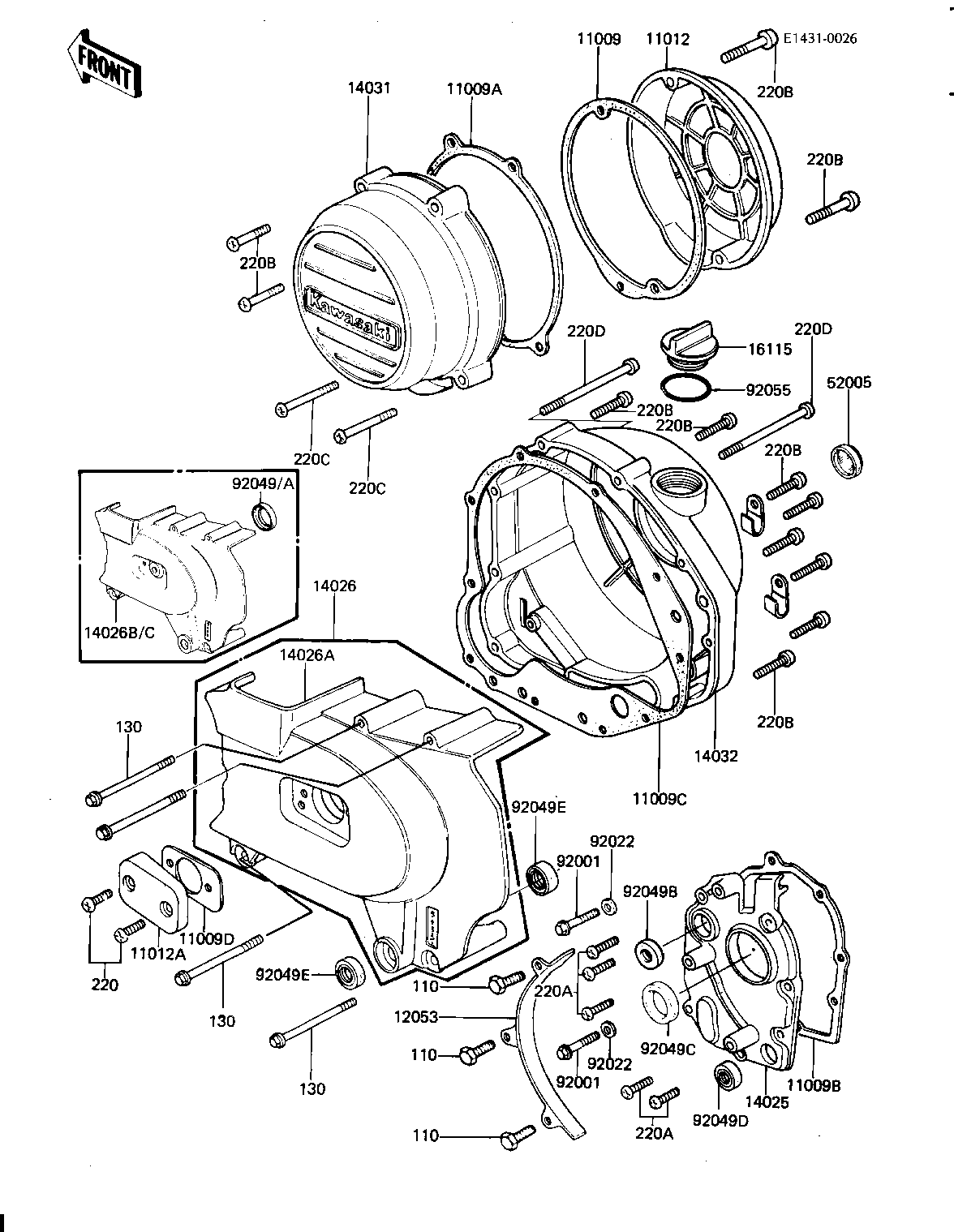

1982 CSR - ENGINE COVERS ('81-'82 H1/H2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,PULSING COIL C | 11009 | 11060-1053 | 1 | ||
GASKET,GENERATOR COVE | 11009A | 11009-1987 | 1 | ||
GASKET,TRANSMISSION C | 11009B | 11060-1056 | 1 | ||
GASKET,R.H.ENG COVER | 11009C | 14046-035 | 1 | ||
GASKET,CLUTCH ADJ CAP | 11009D | 14049-004 | 1 | ||
CAP,CONTACT BREAKER | 11012 | 11012-1098 | 1 | ||
COVER,CLUTCH ADJUSTNG | 11012A | 14028-006-80 | 1 | ||
GUIDE,CHAIN | 12053 | 12053-1006 | 1 | ||
COVER,MISSION | 14025 | 14024-011 | 1 | ||
COVER-CHAIN | 14026B | 14026-1053 | 1 | ||
COVER,GENERATOR | 14031 | 14031-1040 | 1 | ||
COVER,CLUTCH,BUFFING | 14032 | 14032-1037 | 1 | ||
PLUG,OIL FILLER | 16115 | 16115-013 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
BOLT,HEX HEAD,6X35 | 92001 | 92001-164 | 2 | ||
WASHER OIL PUMP BANJO | 92022 | 92022-077 | 2 | ||
OIL SEAL,CLUTCH RELES | 92049 | 92049-1003 | 1 | ||
OIL SEAL,SD-8187 | 92049B | 92049-1017 | 1 | ||
OIL SEAL SC325210 | 92049C | 92050-024 | 1 | ||
OIL SEAL,TB13225.5 | 92049D | 92051-005 | 1 | ||
"0" RING,31MM | 92055 | 92055-049 | 1 | ||
BOLT-UPSET 6X14 | 110 | 112B0614 | 3 | ||
BOLT-FLANGED,6X70 | 130 | 130G0670 | 4 | ||
SCREW PAN HEAD 6X18 | 220 | 220B0618 | 2 | ||
SCREW PAN HEAD 6X20 | 220A | 220B0620 | 5 | ||
SCREW PAN HEAD 6X30 | 220B | 220B0630 | 12 | ||
SCREW PAN HEAD 6X40 | 220C | 220B0640 | 2 | ||
SCREW PAN HEAD 6X80 | 220D | 220B0680 | 2 |
