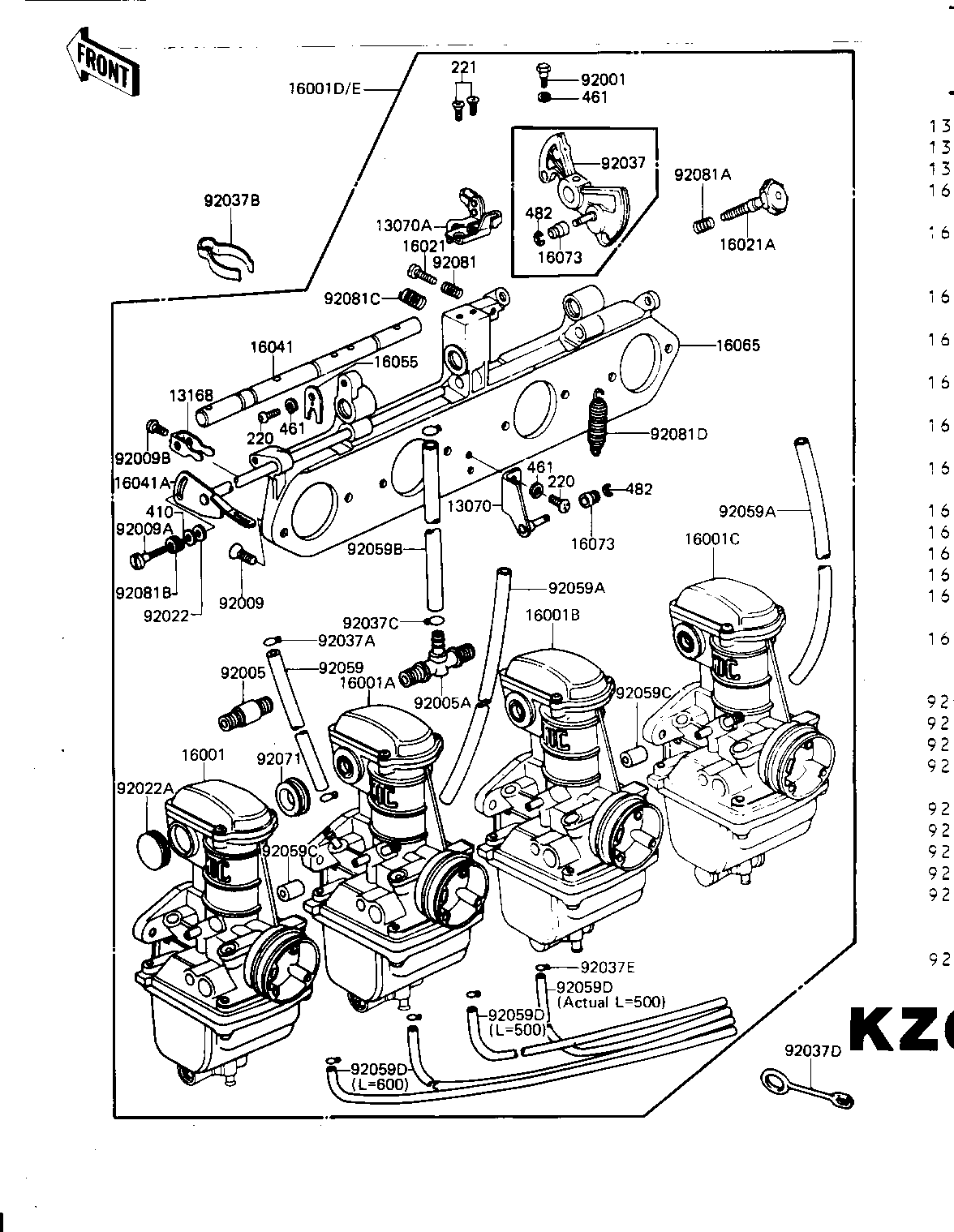

1982 CSR - CARBURETOR ASSY (KZ650-H1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABL 13070 16077-016 1
BRACKET,THROTTLE CABL 13070A 16077-017 1
LEVER,STARTER PLUNGER 13168 13168-1026 4
CARBURETOR,L.H,OUT 16001 16001-1070 1 CN
CARBURETOR,L.H,INSIDE 16001A 16001-1071 1 CN
CARBURETOR,R.H,INSIDE 16001B 16001-1072 1 CN
CARBURETOR,R.H,OUT 16001C 16001-1073 1 CN
CARBURETOR 16001D 16001-1401 1 US
16001-1480 (Canada) 16001E 16001-1417 1 CN
SCREW 16021 16021-032 1
SCREW,THROTTLE STOP 16021A 16021-1010 1
SHAFT,CARB CONNECTION 16041 16041-017 1
SHAFT,STARTER PLUNGER 16041A 16041-021 1
PLATE,SHAFT STOPPER 16055 16055-012 1
HOLDER,CARBURETOR 16065 16065-049 1
RING 16073 16073-016 1 US
BOLT,HEX HEAD,5X14 92001 16067-006 1
FITTING 92005 92005-1009 2
FITTING 92005A 92005-1010 1
SCREW,6X14 92009 16033-029 8
SCREW 92009A 16046-005 1
SCREW,PAN HEAD,5X7 92009B 16046-007 4
WASHER,PLAIN 92022 16039-019 1
CAP,RUBBER 92022A 16039-042 2
PULLEY,THROTTLE CABLE 92037 16068-015 1 CN
CLAMP-PIPE 92037A 92037-072 2
CLAMP,AIR VENT HOSE 92037B 92037-1092 1
CLAMP,HOSE 92037C 92037-1184 2
CLAMP,OVER FLOW PIPE 92037D 92037-134 1
CLAMP,OVERFLOW HOSE 92037E 92037-173 3 US
CLAMP,OVERFLOW HOSE 92037E 92037-173 4 US
HOSE,FUEL TAP DIAPHRA 92059 92059-1023 1
HOSE,AIR VENT,5X8X250 92059A 92059-1045 2
TUBE,7.5X12.5X225 92059B 92059-1123 1
HOSE,6X11.5X16 92059C 92059-141 2
HOSE,FUEL OVERFLOW 92059D 92059-147 3 US
HOSE,FUEL OVERFLOW 92059D 92059-147 4 US
GROMMET,CARBURETOR 92071 92071-104 6
SPRING,THROTTLE ADJST 92081 16022-010 1
SPRING,THROTTLE STOP 92081A 16022-017 1
SPRING,F 92081B 16040-009 1
SPRING,CABLE PULLY 92081C 16040-022 1
SPRING,THROTTLE CABLE 92081D 92081-1394 1
SCREW-PAN-CROS 220 220B0514 3
SCREW CNTSNK HD 5X10 221 221B0510A 2
WASHER PLAIN 5MM 410 410B0500 1
WASHER SPRING 5MM 461 461F0500 4
CIRCLIP 3MM 482 482K3000 1 US
CIRCLIP 3MM 482 482K3000 2 US
