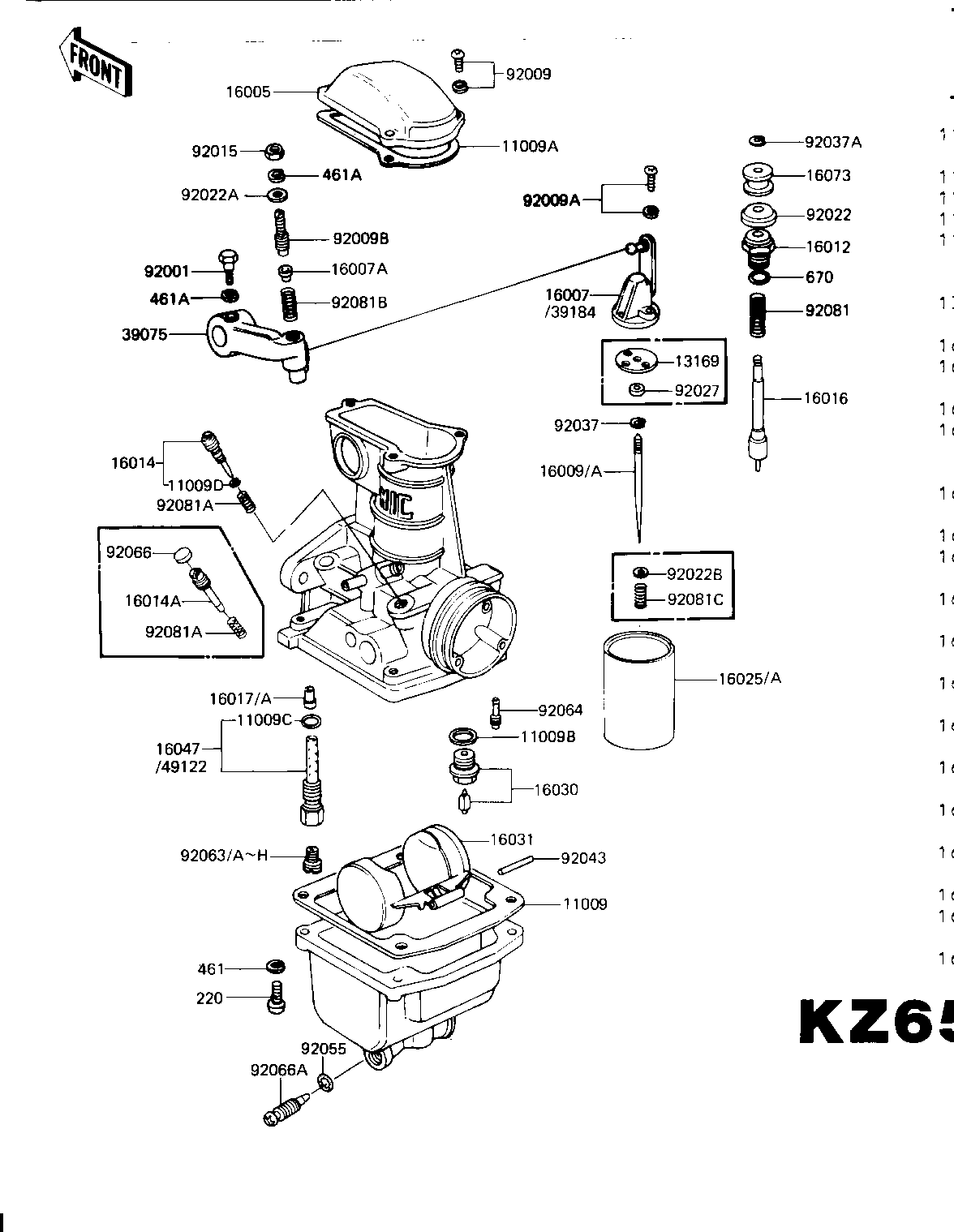

1982 CSR - CARBURETOR PARTS (KZ650-H1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1563 4 CN
GASKET,CHAMBER TOP 11009A 16019-031 4
WASHER FLOAT VLV SEAT 11009B 16029-004 4
"0" RING,MAIN JET COV 11009C 16038-016 4
"O" RING 11009D 16038-022 4 CN
PLATE,JET NEEDLE 13169 13169-1107 4 US
TOP,MIXING CHAMBER 16005 16005-027 4
BRACKET,THROTTLE VALV 16007 16007-028 4 CN
SEAT,SPRING 16007A 16057-002 4
JET NEEDLE,5CN15 16009 16009-1013 4 CN
JET NEEDLE,5CL30 16009A 16009-1048 4 US
CAP,STARTER PLUNGER 16012 16012-015 4
SCREW,AIR ADJUSTING 16014 16014-1006 4 CN
PLUNGER,STARTER 16016 16016-021 4
NEEDLE JET,0-4 16017 16017-1021 4 CN
NEEDLE JET,AO-5 16017A 16017-1034 4 US
VALVE,THROTTLE 16025 16025-1006 4 CN
VALVE,THROTTLE,CA1.75 16025A 16025-1025 4 US
FLOAT VALVE ASSY 16030 16030-1001 4
FLOAT 16031 16031-031 4
PIPE,BLEED 16047 16047-005 4 CN
COLLAR 16073 16073-014 4
LEVER,THROTTLE 39075 39075-1001 4
BRACKET,THROTTLE VALV 39184 39184-1001 4 US
PIPE,BLEED 49122 49122-1006 4 US
BOLT,HEX HEAD,5X14 92001 16067-006 4
SCREW-PAN-WS-CROS 92009 223B0414 12
SCREW,PAN HEAD,3X14 92009A 16033-031 8
SCREW,SLOTTED 92009B 16046-012 4
NUT,5MM 92015 16003-013 4
CAP,STARTER PLUNGER 92022 16039-015 4
WASHER,PLAIN 92022A 16039-016 4
WASHER,THROTTLE VALVE 92022B 92022-1024 4 US
RING,JET NEEDLE 92027 92027-1103 4 US
CIRCLIP 92037 16008-010 4
CIRCLIP 92037A 16076-003 4
FLOAT PIN 92043 16032-003 4
"0" RING 92055 92055-044 4
MAIN JET,#A100 92063 92063-1033 4 CN
MAIN JET,#A102.5 92063A 92063-1028 4 CN
MAIN JET,#A105R 92063B 92063-1042 4 CN
JET-MAIN NO 107.5R 92063C 92063-073 4 CN
MAIN JET NO 87.5R 92063D 92063-094 4 US
MAIN JET,#A90R 92063E 92063-1029 4 US
MAIN JET,#A95 92063F 92063-1031 4 US
MAIN JET,#A97.5R 92063G 92063-1035 4 (RACING USE ONLY)
MAIN JET,#A92.5R 92063H 92063-1085 4 US
PILOT JET,#A15 92064 92064-1018 4
PLUG,PILOT SCREW 92066 92066-1051 4 US
SCREW,DRAIN 92066A 92066-1064 4
SPRING,STARTER PLUG 92081 16013-008 4
SPRING-THR STOP SCREW 92081A 16022-007 4
SPRING 92081B 16040-026 4
SPRING,JET NEEDLE 92081C 92081-1072 4 US
SCREW PAN HEAD 4X16 220 220B0416 16
WASHER SPRING 4MM 461 461F0400 16
WASHER SPRING 5MM 461A 461F0500 8
"O" RING,9MM 670 670B1509 4
