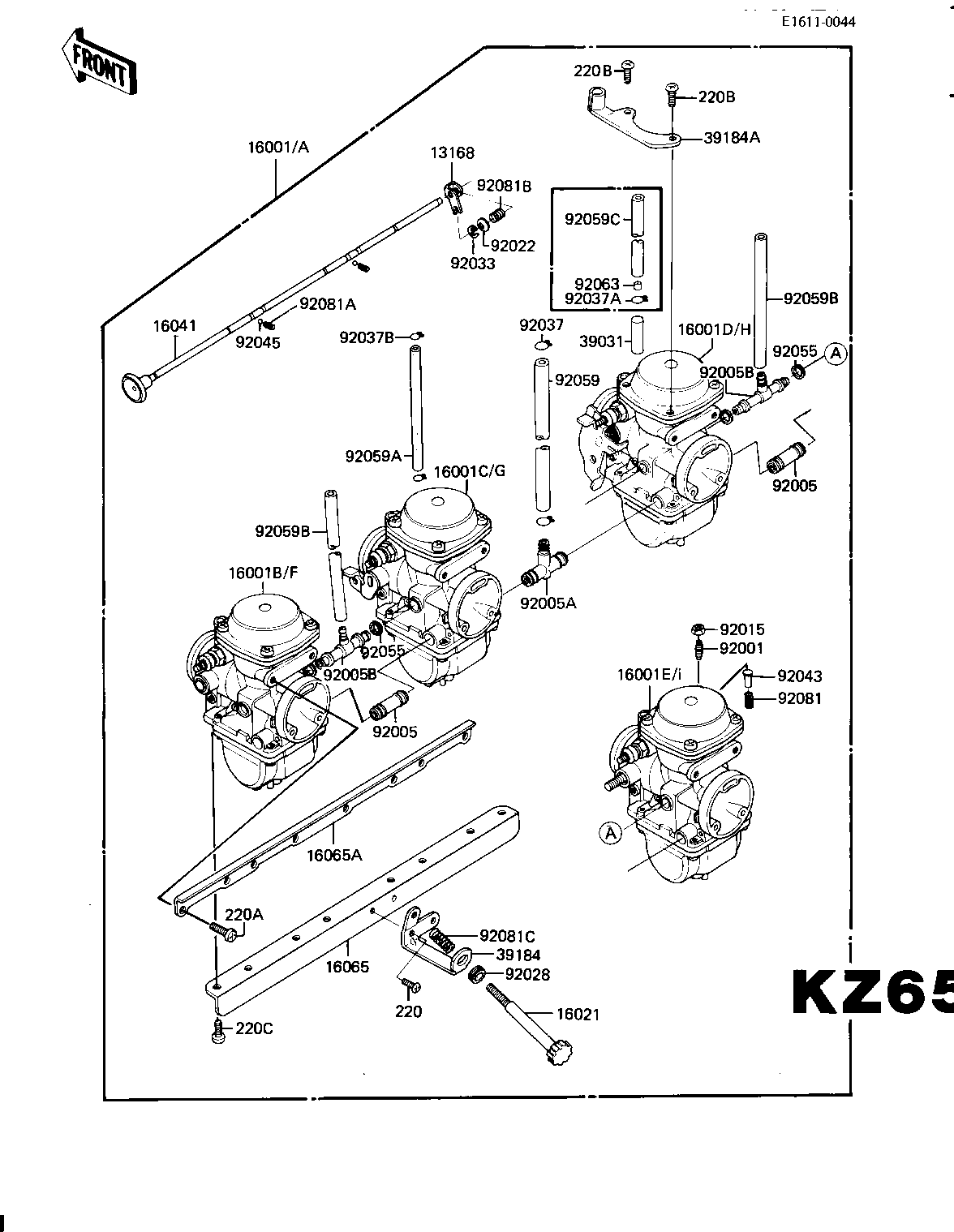

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER,CHOCK | 13168 | 13168-1091 | 4 | ||
CARBURETOR | 16001 | 16001-1479 | 1 | US | |
CARBURETOR (Canada) | 16001A | 16001-1480 | 1 | CN | |
CARBURETOR,LH,OUTSIDE | 16001B | 16001-1481 | 1 | US | |
CARBURETOR,LH,INSIDE | 16001C | 16001-1482 | 1 | US | |
CARBURETOR,RH,INSIDE | 16001D | 16001-1483 | 1 | US | |
CARBURETOR,RH,OUTSIDE | 16001E | 16001-1484 | 1 | US | |
CARBURETOR,LH,OUTSIDE (Canada) | 16001F | 16001-1485 | 1 | CN | |
CARBURETOR,LH,INSIDE (Canada) | 16001G | 16001-1486 | 1 | CN | |
CARBURETOR,RH,INSIDE (Canada) | 16001H | 16001-1487 | 1 | CN | |
CARBURETOR,RH,OUTSIDE (Canada) | 16001I | 16001-1488 | 1 | CN | |
SCREW-THROTTLE STOP | 16021 | 16021-1035 | 1 | ||
SHAFT-CARBURETOR,CHOC | 16041 | 16041-1024 | 1 | ||
HOLDER-CARBURETOR,LWR | 16065 | 16065-1043 | 1 | ||
HOLDER-CARBURETOR,UPP | 16065A | 16065-1044 | 1 | ||
CAP-END | 39031 | 39031-1009 | 1 | US | |
CAP-END | 39031 | 39031-1009 | 2 | US | |
BRACKET-ASSY,IDLING A | 39184 | 39184-1007 | 1 | ||
BRACKET-ASSY,THROTTLE | 39184A | 39184-1009 | 1 | ||
BOLT,ADJUSTING | 92001 | 92001-1447 | 3 | ||
FITTING,FUEL | 92005 | 92005-1035 | 2 | ||
FITTING,FUEL | 92005A | 92005-1036 | 1 | ||
FITTING,AIR VENT | 92005B | 92005-1045 | 2 | ||
NUT,THROTTLE VLV ADST | 92015 | 92015-1119 | 3 | ||
WASHER,SPRING | 92022 | 92022-1255 | 4 | ||
BUSHING | 92028 | 92028-1071 | 1 | ||
RING-SNAP,E | 92033 | 92033-1066 | 4 | ||
CLAMP,HOSE | 92037 | 92037-1184 | 2 | ||
CLAMP,TUBE (Canada) | 92037A | 92037-1235 | 1 | CN | |
CLAMP,BREATHER HOSE | 92037B | 92037-174 | 2 | ||
PIN,THROTTLE VALVE | 92043 | 92043-1079 | 3 | ||
BALL,STEEL,1/8" | 92045 | 600A0400 | 2 | ||
"0" RING | 92055 | 92055-510 | 4 | ||
TUBE,7.5X12.5X225 | 92059 | 92059-1123 | 1 | ||
TUBE,5X9X150 | 92059A | 92059-1188 | 1 | ||
TUBE,6.5X9.5X300 | 92059B | 92059-1203 | 2 | ||
TUBE,4.5X8X200 (Canada) | 92059C | 92059-1204 | 1 | CN | |
JET-MAIN (Canada) | 92063 | 92063-1097 | 1 | CN | |
SPRING,THROTTLE VALVE | 92081 | 92081-1259 | 3 | ||
SPRING,FAST IDLE SHFT | 92081A | 92081-1260 | 2 | ||
SPRING,CHOCK SHAFT | 92081B | 92081-1364 | 4 | ||
SPRING,IDLING ADJUST | 92081C | 92081-1377 | 1 | ||
SCREW PAN HEAD 5X8 | 220 | 220B0508 | 1 | ||
SCREW PAN HEAD 5X10 | 220A | 220B0510 | 8 | ||
SCREW PAN HEAD 5X12 | 220B | 220B0512 | 2 | ||
SCREW PAN HEAD 6X14 | 220C | 220B0614 | 8 |
