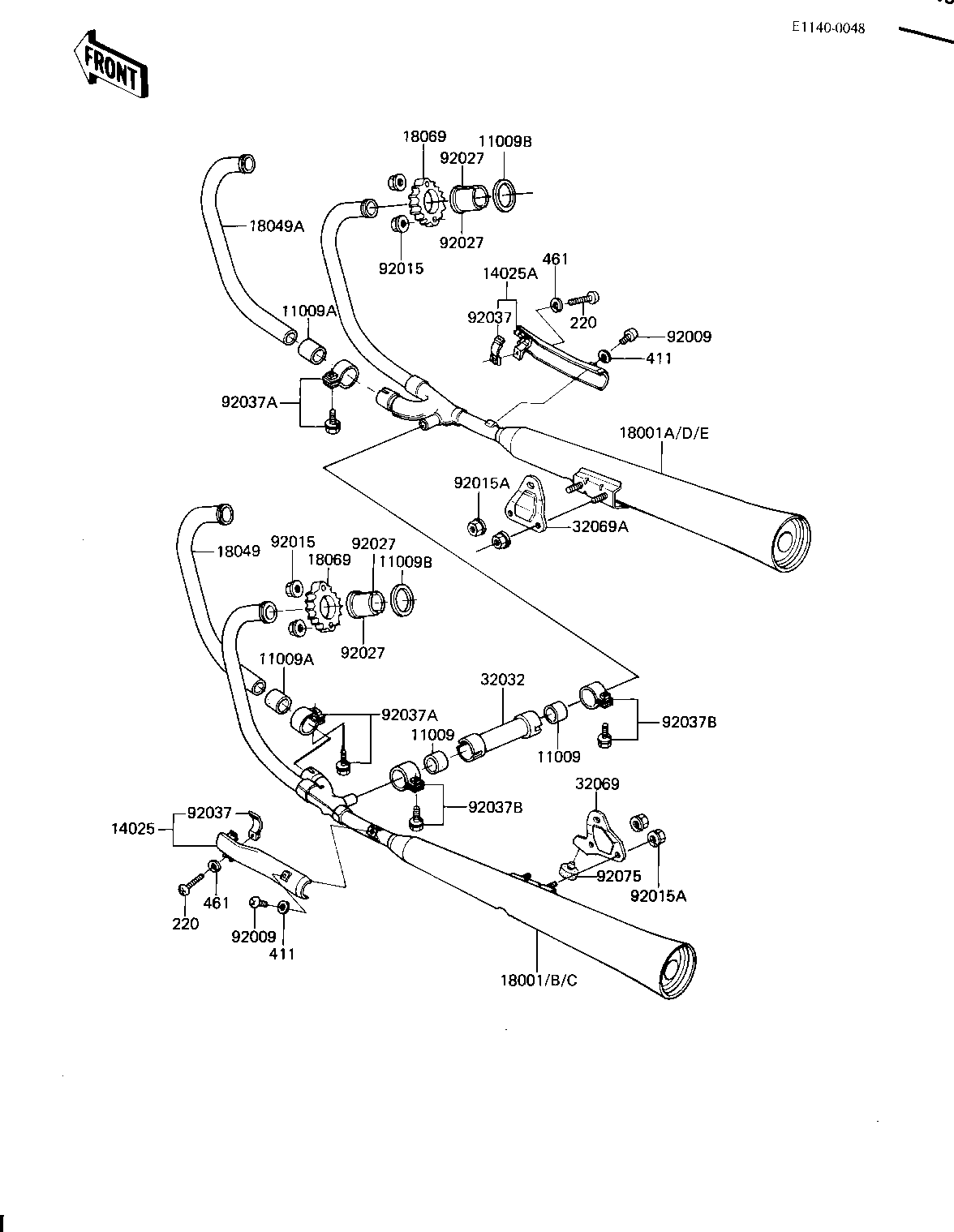

1982 CSR - MUFFLERS ('81-'82 H1/H2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER CONNEC 11009 11060-1051 2
GASKET,EXHAUST PIPE C 11009A 11009-1667 2
GASKET,EXHAUST PIPE H 11009B 11009-1866 4
COVER,MUFFLER,LH 14025 14025-1518 1
COVER,MUFFLER,RH 14025A 14025-1519 1
MUFFLER,LH 18001B 18001-1256 1
MUFFLER,RH 18001D 18001-1257 1
PIPE-EXHAUST,#2 18049 18049-1162 1
PIPE-EXHAUST,#3 18049A 18049-1163 1
HOLDER,EXHAUST PIPE 18069 18069-1006 4
PIPE,MUFFLER CONNECTI 32032 32032-1669 1
BRACKET-MUFFLER,LH 32069 32069-1072 1
BRACKET-MUFFLER,RH 32069A 32069-1073 1
SCREW,PAN HEAD,6X8 92009 92011-039 2
NUT-6MM 92015 92015-1078 8
NUT,LOCK,8MM 92015A 92017-013 4
COLLAR,EXHAUST PIPE 92027 92027-1142 8
CLAMP,MUFFLER COVER 92037 92037-1205 2
CLAMP,42MM 92037A 92037-1349 2
CLAMP,MUFFLER,37MM 92037B 92037-1243 2
DAMPER RUBB MAIN STAD 92075 92075-015 1
SCREW PAN HEAD 6X20 220 220B0620 2
WASHER-PLAIN,6MM 411 411D0600 2
WASHER SPRING 6MM 461 461F0600 2
