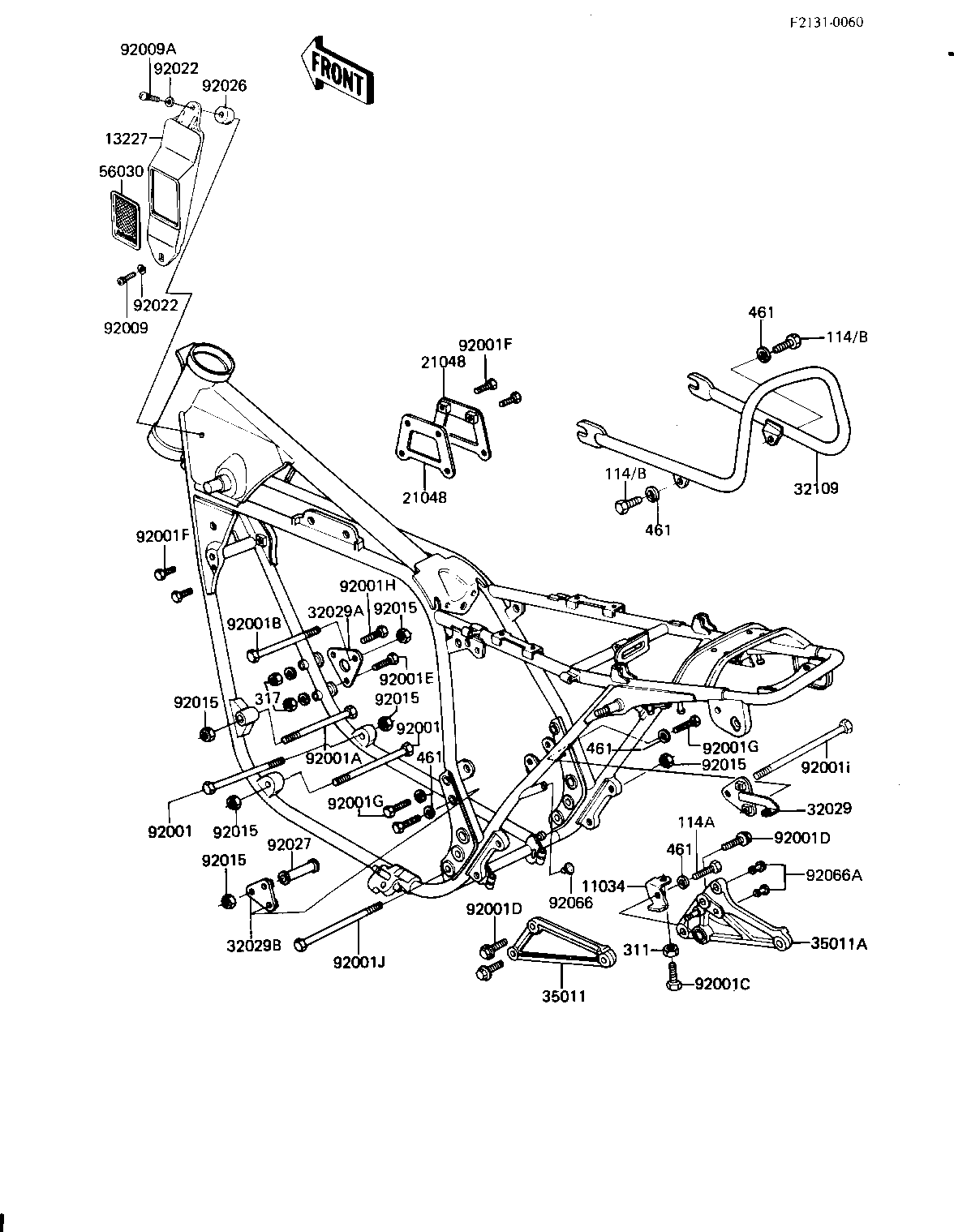

1982 CSR - FRAME FITTINGS ('81-'82 H1/H2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BRAKE PEDAL 11034 11034-1824 1
HOUSING,LABEL 13227 13227-1001 2
PLATE,IGNITION COIL 21048 21048-1001 2
PLATE,ENG.MOUNT,R.H. 32029 32029-1129 1
PLATE,FRONT ENG.MOUNT 32029A 32030-063 1
PLATE,RR ENG MONT,L.H 32029B 32030-064 1
GRIP,FRAME 32109 32109-1016 1
STAY,MUFFLER,LH 35011 35011-1080 1
STAY,MUFFLER,RH 35011A 35011-1081 1
LABEL 56030 56030-1006 2
BOLT,HEX HEAD,10X84 92001 92001-1048 2
BOLT,HEX HEAD,10X72 92001A 92001-1049 1
BOLT,HEX HEAD,10X46 92001B 92001-1050 1
BOLT,HEX HEAD,6X25 92001C 92001-1090 1
BOLT,8X28 92001D 92001-1095 3
BOLT,FLANGED,8X60 92001E 92001-1581 1
BOLT,HEX HEAD,6MM 92001F 92001-137 4
BOLT 92001G 92001-1578 4
BOLT-8X63 92001H 92001-1397 1
BOLT,ENGINE MOUNTING 92001I 92091-023 1
BOLT,HEX HEAD,10X219 92001J 92091-032 1
SCREW,5X16,BLACK 92009 92009-1099 2
SCREW,PAN HEAD,5X30 92009A 92009-1100 2
NUT,10MM 92015 92015-1429 6
WASHER,5.2X16X16X1.2T 92022 25009-004 4
SCREW,5.2X23X13 92026 92026-1077 2
COLLAR,L=54MM. 92027 92027-275 1
PLUG,9.5X8 92066 92066-1077 2
PLUG,RUBBER 92066A 92066-1080 2
BOLT-SMALL-UPSET,8X22 114 115B0822 2
BOLT-SMALL,8X18 114B 114N0818 1
NUT 6MM 311 311B0600 1
NUT,8M/M 317 317B0800 2
WASHER SPRING 8MM 461 461F0800 9
