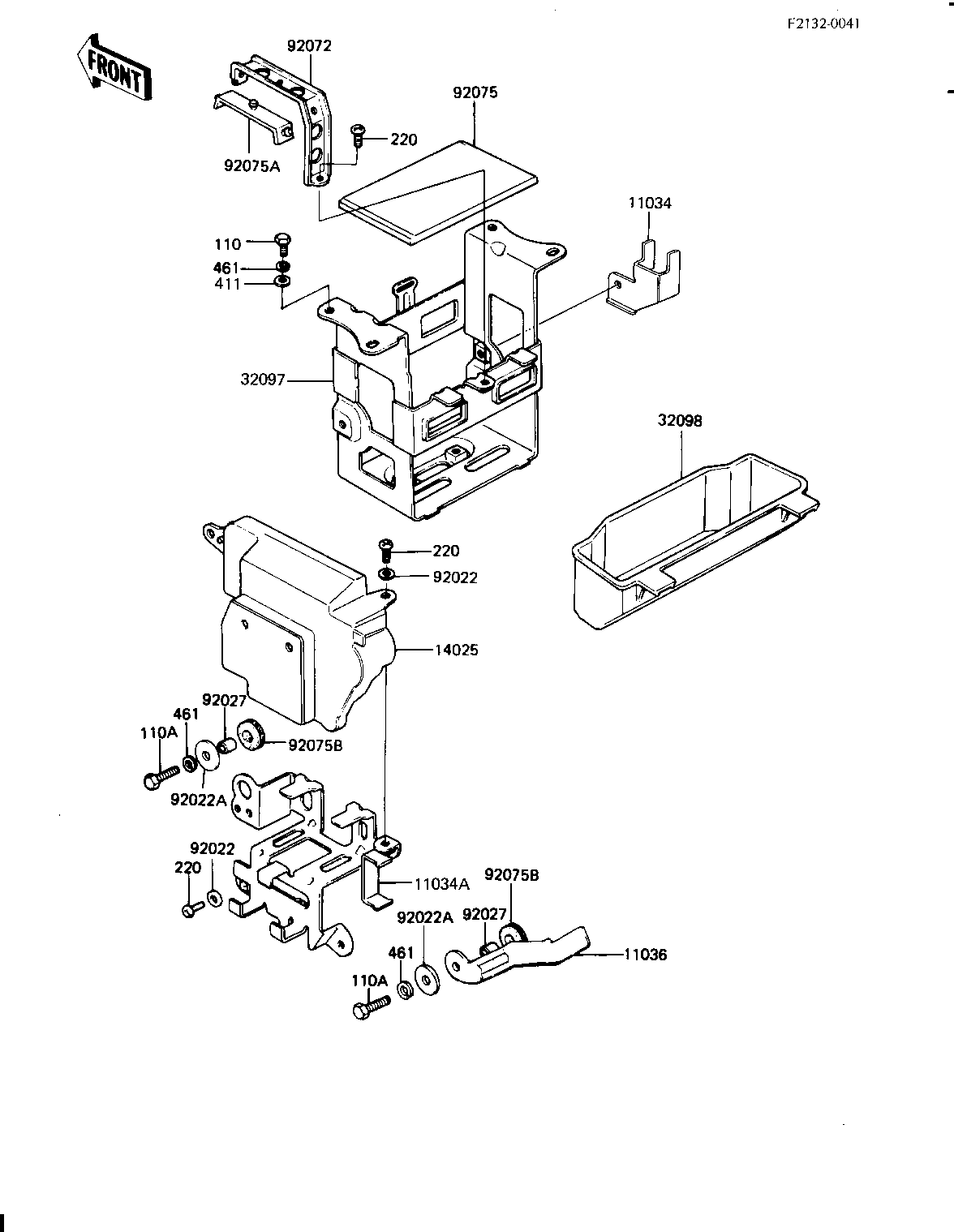

1982 CSR - BATTERY CASE/TOOL CASE ('81-'82 H1/H2)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SWITCH 11034 11034-1158 1
BRACKET,ELECTRO BASE 11034A 11034-1669 1
BRACKET-A,FUSE 11036 11036-1043 1
COVER,ELECTRO BASE 14025 14025-1191 1
CASE,BATTERY 32097 32097-1026 1
CASE,TOOL 32098 32098-1011 1
WASHER PLAIN 92022 92022-024 2
WASHER,PLAIN,7MM 92022A 92022-228 2
COLLAR-CLAMP 92027 92027-291 2
BAND,BATTERY 92072 92072-1019 1
DAMPER,BATTERY BASE 92075 92075-1076 1
DAMPER,BATTERY BAND 92075A 92075-1113 1
DAMPER 92075B 92075-317 2
BOLT-UPSET,6X12 110 112G0612 4
BOLT-UPSET 110A 112G0625 2
SCREW PAN HEAD 6X12 220 220B0612 3
WASHER PLAIN 6MM 411 411B0600 4
WASHER SPRING 6MM 461 461F0600 6
