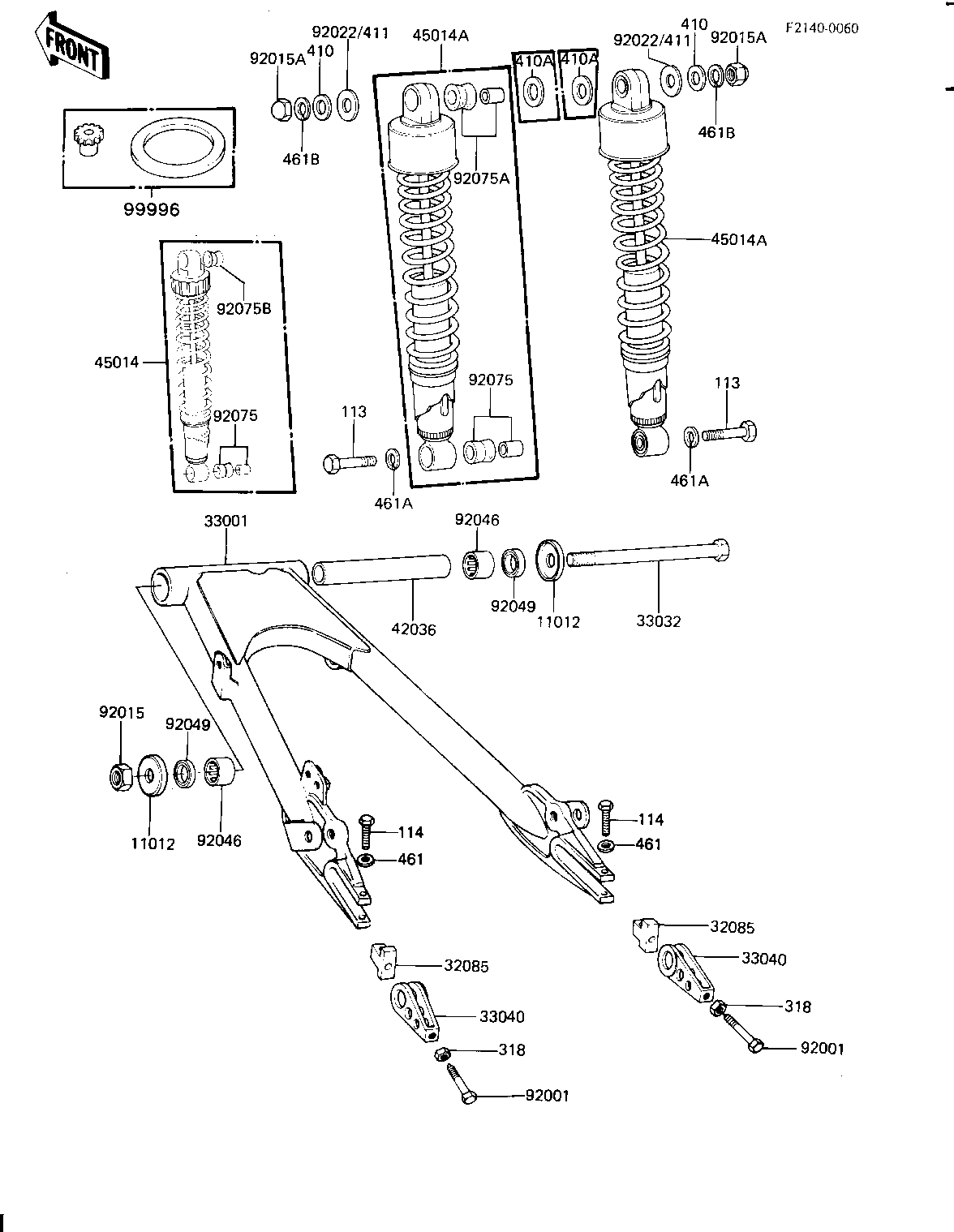

1982 CSR - SWING ARM/SHOCK ABSORBERS ('81-'82 H1/H2

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 33035-009 2
STOPPER,CHAIN ADJUST 32085 33044-002 2
ARM-COMP-SWING 33001 33001-1094 1
SHAFT,SWING ARM 33032 33032-050 1
ADJUSTER,CHAIN 33040 33040-056 2
SLEEVE,SWING ARM 42036 42036-1012 1
SHOCK ABSBR RR 45014A 45014-1154 2
BOLT,8X50 92001 92001-1399 2
NUT-SELF LOCKING 92015 92019-012 1
NUT 12MM 92015A 92020-014 2
WASHER,12.4X28X2.3 92022 92022-1239 2
BEARING-NEEDLE,HK2216 92046 92046-1115 2
OIL SEAL,MHA22284 92049 92049-1059 2
BUSHING,SHOCK ABSORBE 92075 45017-019 2
BUSHING,SHOCK ABSORBE 92075A 92075-1141 2
SHOCK ABSORBER KIT 99996 99996-1025 2
BOLT HEX HEAD 10X35 113 113N1035 2
BOLT,SMALL UPSET 114 115G0835 2
NUT 8MM 318 318B0800 2
WASHER PLAIN 12MM 410 410B1200 2
WASHER PLAIN 14MM 410A 410B1400 2
WASHER SPRING 8MM 461 461F0800 2
WASHER SPRING 10MM 461A 461F1000 2
WASHER SPRING 12MM 461B 461F1200 2
