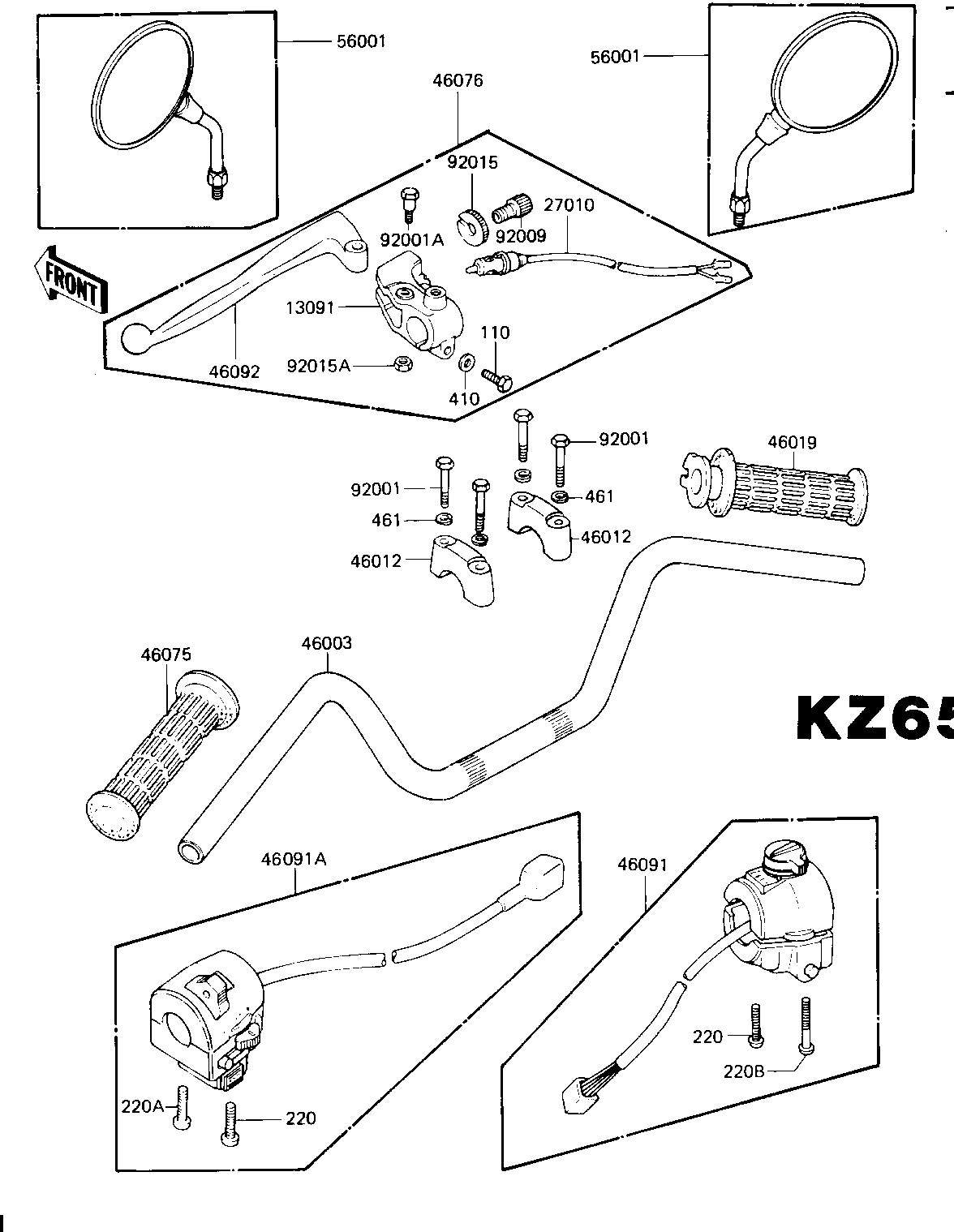

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CLUTCH LEVER 13091 46094-019 1
SWITCH,CLUTCH 27010 27043-002 1
HANDLEBAR 46003 46003-1047 1
HOLDER-HANDLEBAR 46012 46012-008 2
GRIP ASSY,THROTTLE 46019 46019-038 1
RUBBER,L.H GRIP 46075 46075-028 1
LEVER ASSY,CLUTCH 46076 46076-054 1
HOUSING-ASSY-CONTROL 46091 46091-1121 1
HOUSING-ASSY-CONTROL 46091A 46091-1162 1
LEVER,CLUTCH 46092 46092-023 1
MIRROR-ASSY 56001 56001-1340 2
BOLT 8X38 92001 92001-1405 4
BOLT,HEX HEAD 92001A 92007-047 1
SCREW CABLE ADJUST 92009 46055-003 1
NUT,CABLE ADUST NUT 92015 46056-007 1
NUT 92015A 92019-008 1
BOLT HEX HEAD 6X25 110 110N0625 1
SCREW PAN HEAD 5X30 220 220B0530 2
SCREW-PAN-CROS 220A 220B0535 1
SCREW-PAN-CROS 220B 220B0540 1
WASHER PLAIN 6MM 410 410B0600 1
WASHER SPRING 8MM 461 461F0800 4
