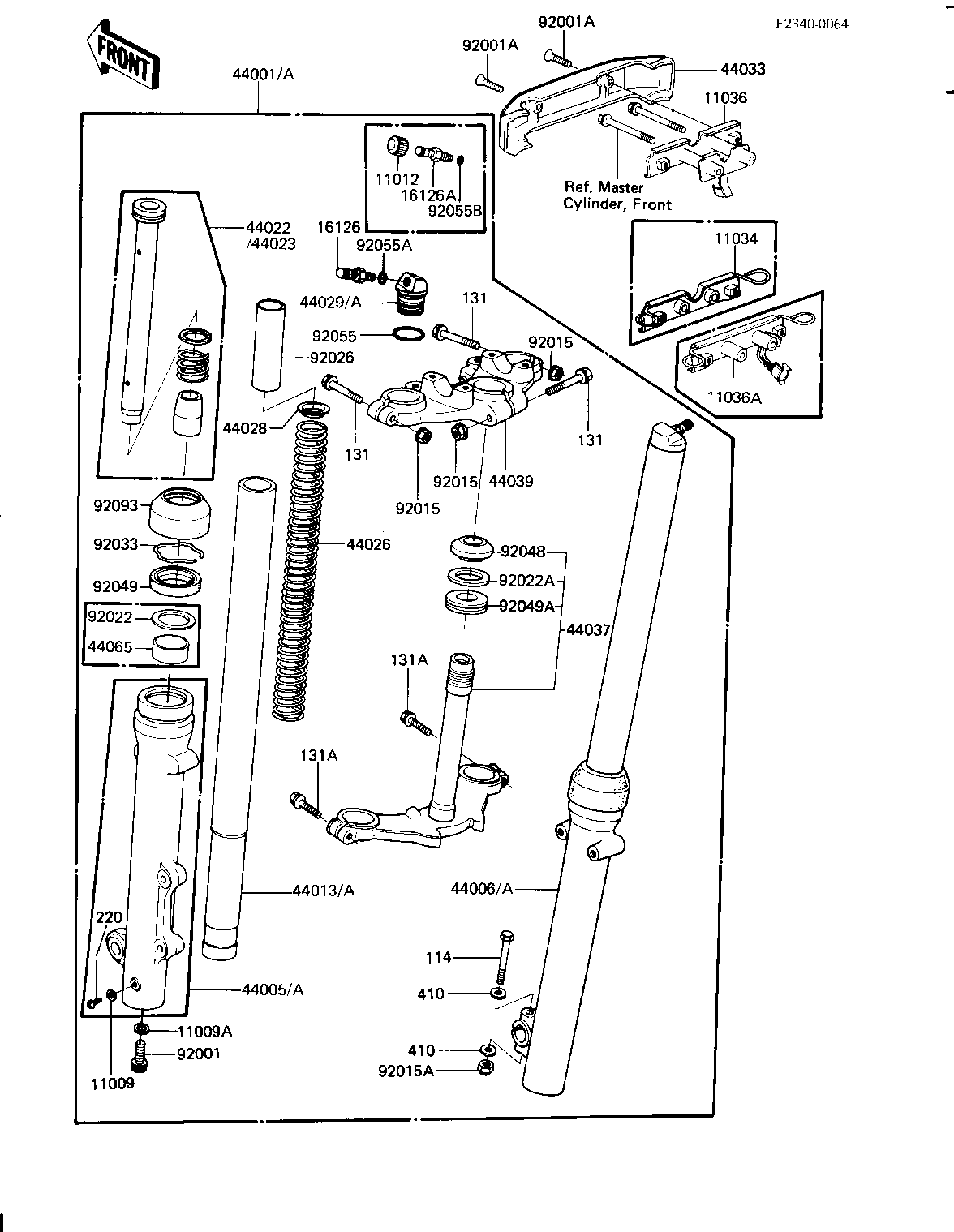

1982 CSR - FRONT FORK ('81-'82 H1/H2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
CAP,AIR VALVE 11012 11012-1241 2
BRACKET-A 11036A 11036-1253 1
VALVE AIR 16126A 16126-1052 2
FORK-FRONT 44001A 44001-1329 1
TUBE,LH,FORK OUTER 44005A 44005-1078 1
TUBE,RH,FORK OUTER 44006A 44006-1078 1
PIPE-FORK INNER 44013A 44013-1085 2
CYLINDER-FORK 44022 44022-1066 2
SPRING-FRONT FORK 44026 44026-1083 2
GUIDE,FORK SPRING 44028 44028-033 2
SEAT-FORK SPRING 44029A 44029-1029 2
COVER,FORK 44033 44033-1054 1
STEM,STEERING 44037 44037-1050 1
HEAD,STEERING STEM 44039 44039-1032 1
BUSHING-FRONT FORK 44065 44065-1016 2
BOLT-FORK CYLINDER 92001 44041-040 2
SCREW-CSK-RD-CROS 92001A 222C0518 2
NUT-8MM 92015 92015-1022 3
NUT,LOCK,8MM 92015A 92015-1124 1
WASHER 92022 92022-1275 2
WASHER,PLAIN 92022A 92022-231 1
SPACER,FORK SPRING 92026 92026-1012 2
RING-SNAP,FORK OIL 92033 92033-1100 2
CONE,STEERING STEM 92048 92047-012 1
SEAL-OIL,FRONT FORK 92049 92049-1101 2
OIL SEAL,STEERING STM 92049A 92056-003 1
"O" RING,FORK TOP 92055 92055-1012 2
"0" RING,AIR VALVE 92055B 92055-1094 2
DUST SHIELD,FORK 92093 92093-1037 2
BOLT,HEX HEAD,8X55 114 114G0855 1
BOLT,FLANGED,8X55 131 130G0855 1
BOLT,FLANGED,10X40 131A 131G1040 2
SCREW PAN HEAD 4X8 220 220B0408 2
WASHER PLAIN 8MM 410 410B0800 2
