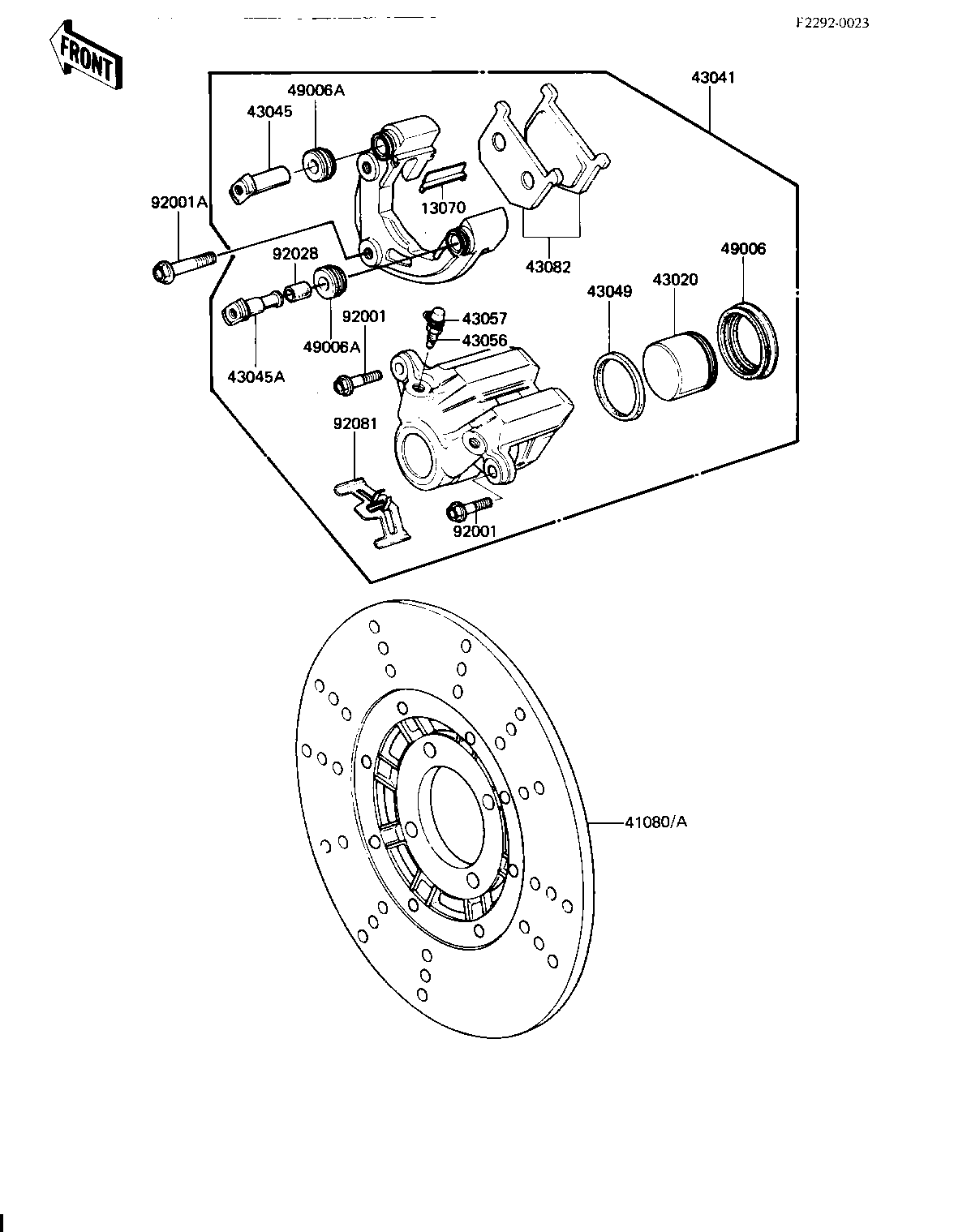

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,PAD 13070 13070-1026 2
DISK 41080A 41080-1042 1
PISTON-COMP-BRAKE 43020 43020-1096 1
CALIPER-ASSY,FR 43041 43041-1113 1
SHAFT,CALIPER 43045 43045-1007 1
SHAFT,CALIPER 43045A 43045-1008 1
RING,PISTON SEAL 43049 43049-002 1
BREEDER 43056 43056-003 1
CAP,BREEDER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1025 1
DUST SEAL,PISTON 49006 49006-1043 1
DUST SEAL 49006A 49006-1044 2
BOLT,FLANGED,8X25,BLA 92001 92001-1510 2
BOLT,FLANGED,10X47 92001A 92001-1354 2
BUSHING,SHAFT CALIPER 92028 92028-1090 1
SPRING,PAD 92081 92081-1229 1
