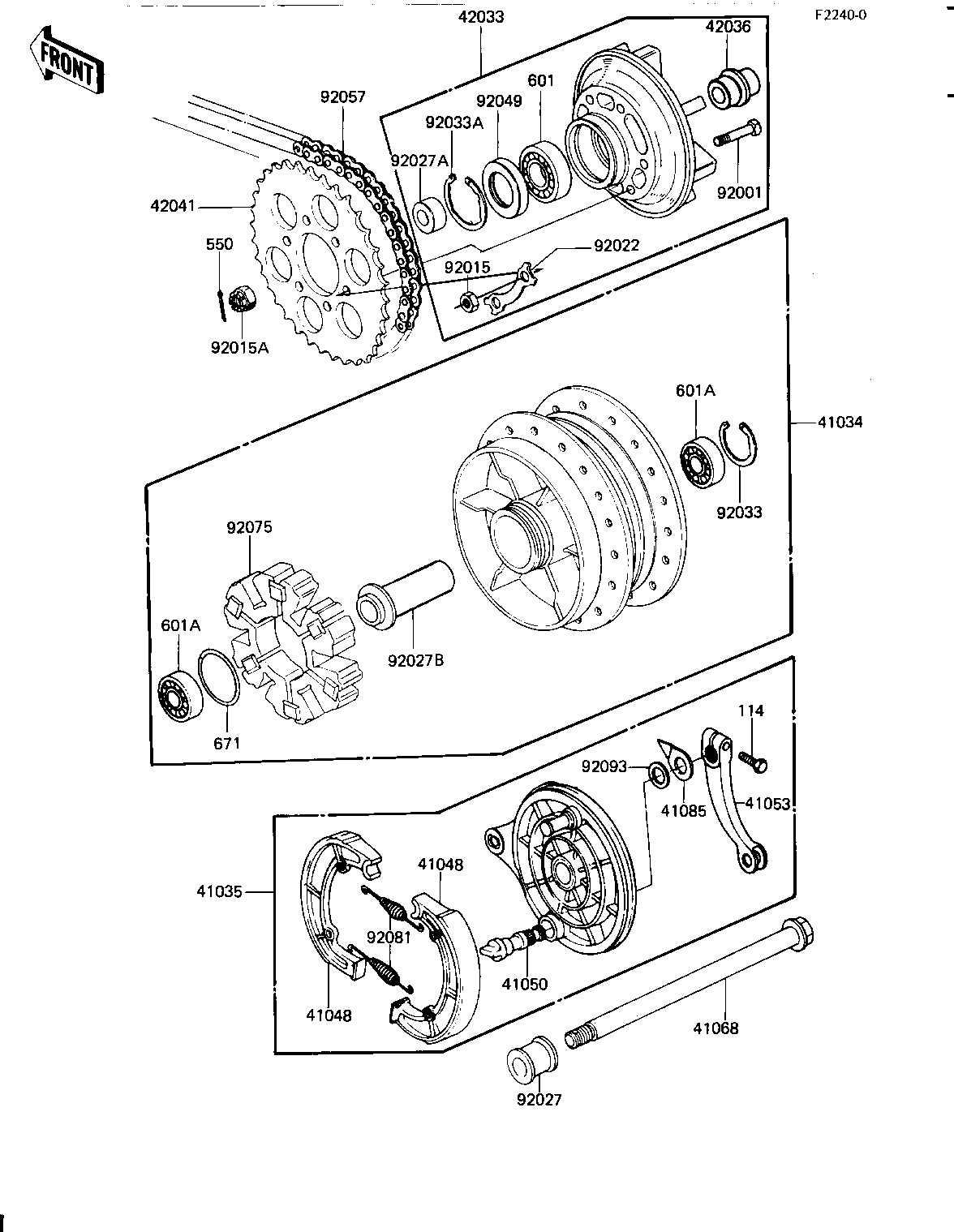

1982 CSR - REAR HUB/BRAKE/CHAIN ('81-'82 H1/H2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,RR BRK | 41034 | 41034-1029 | 1 | ||
| PANEL-ASY,RR BRK | 41035 | 41035-1056 | 1 | ||
| SHOE,BRAKE | 41048 | 42019-012 | 2 | ||
| CAM SHAFT,BRAKE | 41050 | 41050-017 | 1 | ||
| LEVER REAR BRAKE CAM | 41053 | 42029-039 | 1 | ||
| AXLE,RR | 41068 | 41068-1086 | 1 | ||
| INDICATOR,BRAKE SHOE | 41085 | 41085-004 | 1 | ||
| COUPLING ASSY,RR HUB | 42033 | 42033-1021 | 1 | ||
| SLEEVE,RR HUB L=33M/M | 42036 | 42036-1036 | 1 | ||
| REAR SPROCKET,33T | 42041 | 42041-1010 | 1 | ||
| BOLT | 92001 | 92001-161 | 6 | ||
| NUT 10MM | 92015 | 42045-005 | 6 | ||
| NUT CASTLE,16MM | 92015A | 92015-055 | 1 | ||
| WASHER,LOCK | 92022 | 92022-1212 | 3 | ||
| COLLAR,AXLE,L=28M/M | 92027 | 92027-1226 | 1 | ||
| COLLAR,RR AXLE L.H | 92027A | 92027-1262 | 1 | ||
| COLLAR,RR WHEEL BRG | 92027B | 92027-1267 | 1 | ||
| CIRCLIP,47M/M | 92033 | 92033-1042 | 1 | ||
| CIRCLIP,62M/M | 92033A | 92033-1044 | 1 | ||
| OIL SEAL | 92049 | 92050-027 | 1 | ||
| CHAIN,630X84 S-T | 92057 | 92057-1041 | 1 | ||
| SHOCK DAMPER,REAR HUB | 92075 | 42014-033 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 41049-012 | 2 | ||
| DUST SHIELD-BRAKE CAM | 92093 | 41051-003 | 1 | ||
| BOLT HEX HEAD 8X28 | 114 | 114G0828 | 1 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
| BALL BEARING,#6206 | 601 | 601B6206 | 1 | ||
| BRG,BALL,#6303ZZC3 | 601A | 601B6303ZZ | 1 | ||
| "0" RING,65MM | 671 | 671B2565 | 1 |
| DRUM-ASSY,RR BRK | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-ASY,RR BRK | |
| REF # | 41035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE,BRAKE | |
| REF # | 41048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAM SHAFT,BRAKE | |
| REF # | 41050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER REAR BRAKE CAM | |
| REF # | 41053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INDICATOR,BRAKE SHOE | |
| REF # | 41085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING ASSY,RR HUB | |
| REF # | 42033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,RR HUB L=33M/M | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REAR SPROCKET,33T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT CASTLE,16MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR,AXLE,L=28M/M | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR AXLE L.H | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR WHEEL BRG | |
| REF # | 92027B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,47M/M | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,62M/M | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,630X84 S-T | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOCK DAMPER,REAR HUB | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE SHOE | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DUST SHIELD-BRAKE CAM | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 8X28 | |
| REF # | 114 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4.0X35 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL BEARING,#6206 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRG,BALL,#6303ZZC3 | |
| REF # | 601A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,65MM | |
| REF # | 671 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
