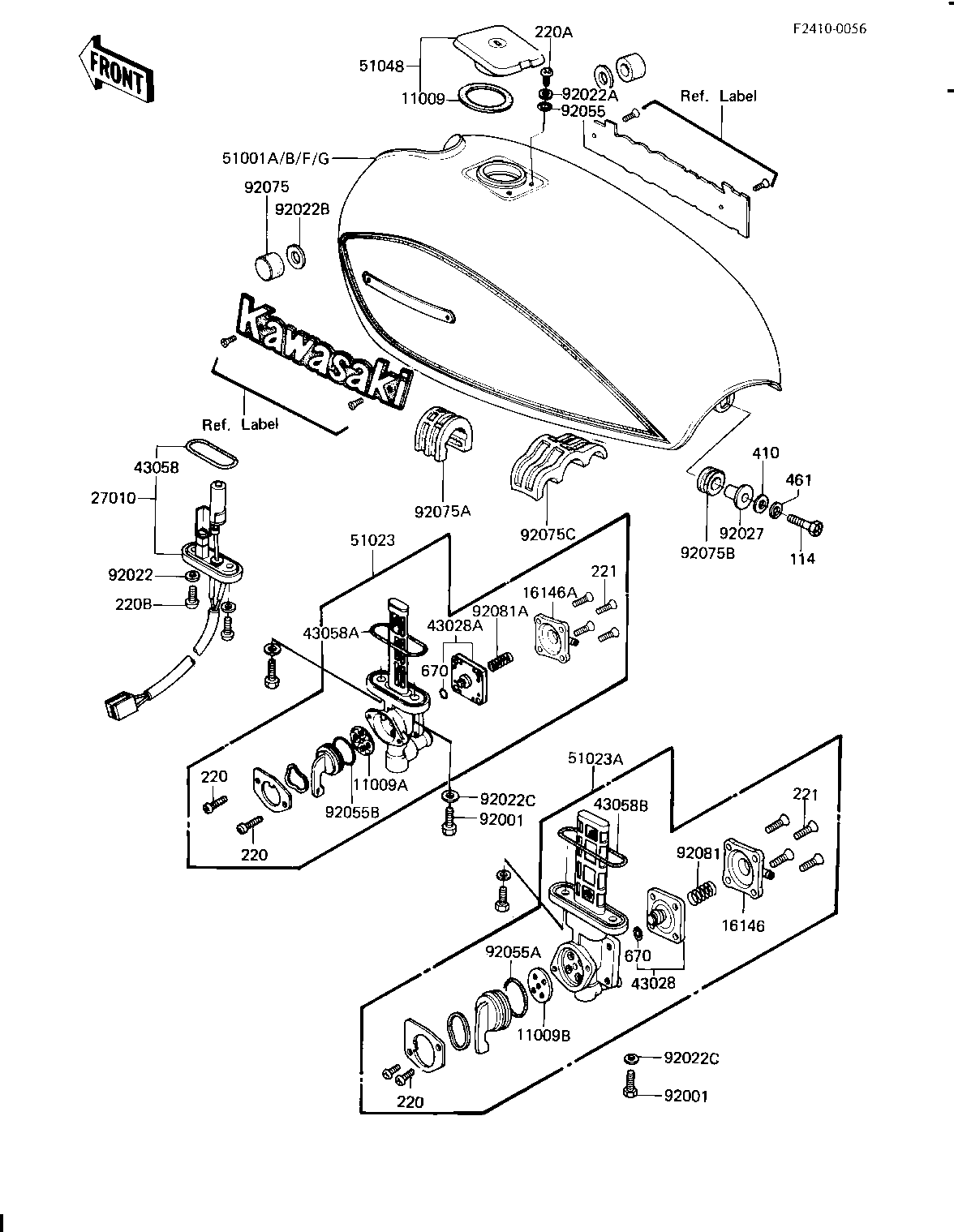

1982 CSR - FUEL TANK ('81-'82 H1/H2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK CAP 11009 11009-1051 1
GASKET,TAP VALVE 11009B 11009-1194 1
COVER ASSY,TAP 16146 16146-1005 1
SWITCH,FUEL LEVEL 27010 27010-1055 1
DIAPHRAGM ASSY,TAP 43028 43028-1015 1
"O" RING,FUEL SWITCH 43058 43058-1004 1
"0" RING 43058B 51039-010 1
TANK-FUEL,EBONY 51001G 51001-5137-8G 1 US
TAP-ASSY,FUEL 51023A 51023-1039 1
CAP ASSY TANK 51048 51048-1018 1
BOLT,6X20,FUEL TAP 92001 92001-1091 2
WASHER,5.2X10X1.5 92022 92022-1023 2
WASHER,PLAIN 92022A 92022-1038 2
WASHER,PLAIN,10M/M 92022B 92022-137 2
WASHER-PLAIN 92022C 92022-183 2
COLLAR,ENGINE HEAD 92027 92027-1116 1
"0" RING 92055 92055-1023 2
"0" RING,TAP LEVER 92055A 92055-1027 1
DAMPER RUBBER 92075 92075-044 2
DAMPER,FUEL TANK 92075A 92075-1065 1
DAMPER RUBBER,MUFFLER 92075B 92075-1086 1
DAMPER,FUEL TANK 92075C 92075-1245 1
SPRING,TAP 92081 92081-1171 1
BOLT-SMALL-UPSET,8X30 114 115G0830 1
SCREW PAN HEAD 3X8 220 220B0308 2
SCREW PAN HEAD 5X10 220A 220B0510 2
SCREW-PAN-CROS 220B 220B0514 2
SCREW-CSK-CROS,4X14 221 221B0414 4
WASHER PLAIN 8MM 410 410B0800 1
WASHER SPRING 8MM 461 461F0800 1
"O" RING,4MM 670 670B1504 1
