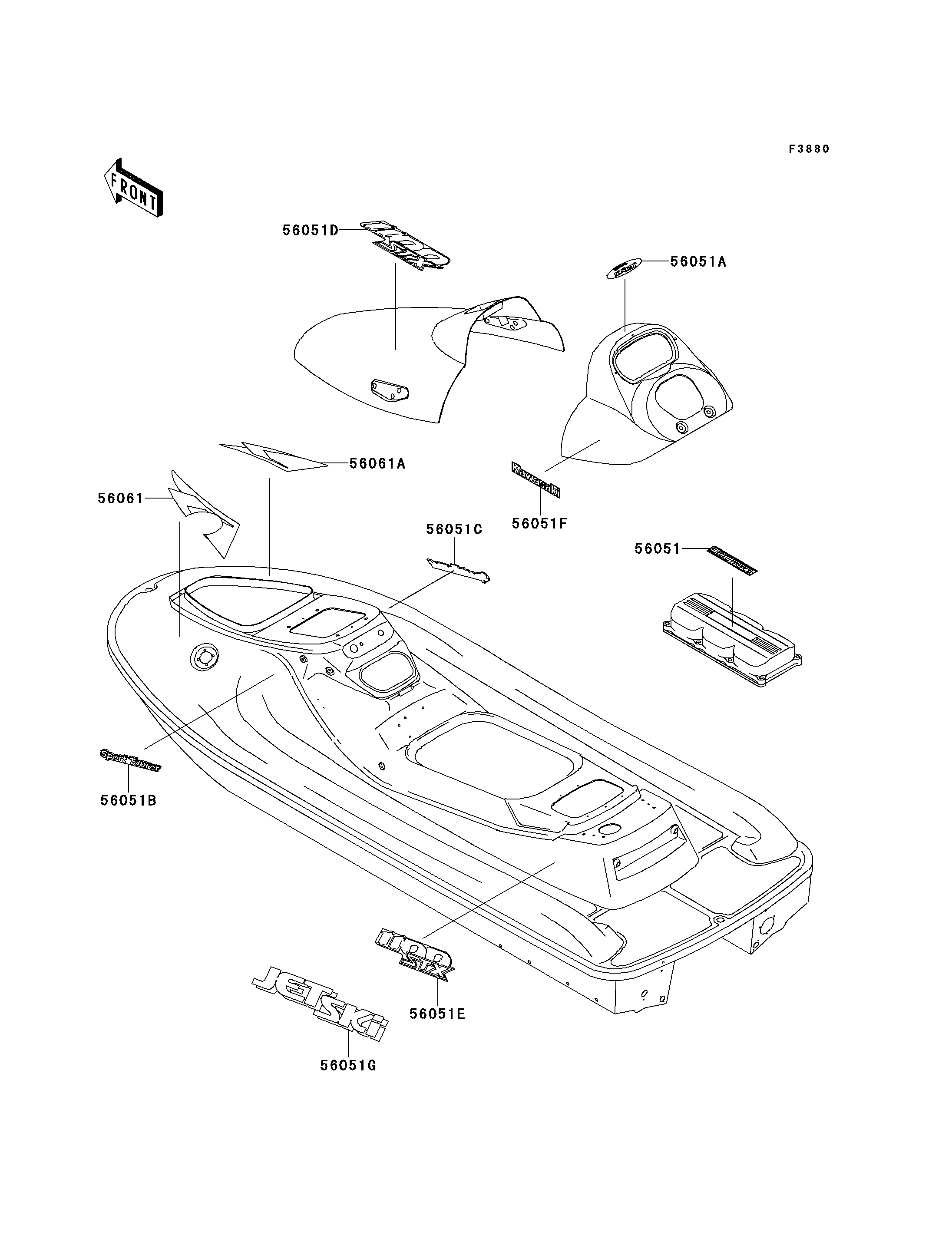

56051
56051A
56051B
56051C
56051D
56051E
56051F
56051G
56061
56061A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,1100 TRIPLE 56051 56051-3747 1
MARK,HANDLE COVER,JET SKI 56051A 56051-3751 1
MARK,DECK,LH,SPORT TOURER 56051B 56051-3765 1
MARK,DECK,RH,SPORT TOURER 56051C 56051-3766 1
MARK,HATCH COVER,1100 STX 56051D 56051-3767 1
MARK,DECK,1100 STX 56051E 56051-3768 2
MARK,HANDLE COVER,KAWASAKI 56051F 56051-3769 1
MARK,HULL,JET SKI 56051G 56051-3775 2
PATTERN,DECK,FR,LH 56061 56061-3814 1
PATTERN,DECK,FR,RH 56061A 56061-3815 1
