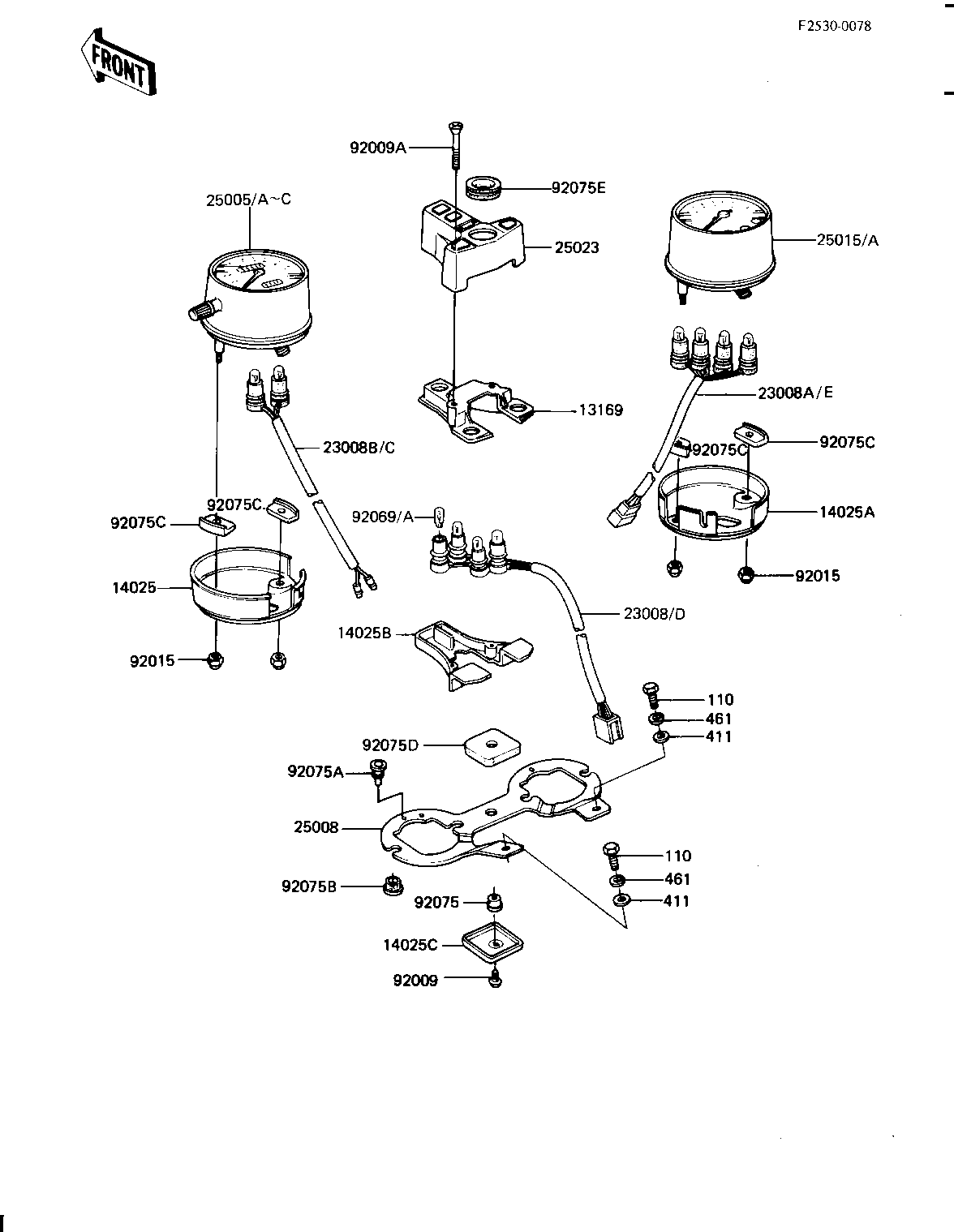

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PLATE,SOCKET | 13169 | 13169-1268 | 1 | ||
COVER,SPEEDOMETER | 14025 | 14025-1224 | 1 | ||
COVER,TACHOMETER | 14025A | 14025-1225 | 1 | ||
COVER,PILOT BOX LOWER | 14025B | 14025-1226 | 1 | ||
COVER,METER BRACKET | 14025C | 14025-1227 | 1 | ||
SOCKET-ASSY,SPEEDOMET | 23008C | 23008-1105 | 1 | ||
SOCKET-ASSY,PILOT BOX | 23008D | 23008-1107 | 1 | ||
SOCKET-ASSY,TACHOMETE | 23008E | 23008-1117 | 1 | ||
SPEEDOMETER,MPH | 25005 | 25005-1094 | 1 | US | |
SPEEDOMETER,MPH | 25005B | 25005-1132 | 1 | US | |
SPEEDOMETER KPH (Canada) | 25005C | 25005-1145 | 1 | CN | |
BRACKET,METER | 25008 | 25008-1030 | 1 | ||
TACHOMETER | 25015A | 25015-1107 | 1 | ||
COVER,PILOT BOX UPPER | 25023 | 25023-1021 | 1 | ||
SCREW,TAPPING,4X10 | 92009 | 92009-1040 | 1 | ||
SCREW,CUNTERSNK,4X35 | 92009A | 92009-1093 | 2 | ||
NUT-CAP,5MM | 92015 | 322N0500 | 4 | ||
BULB,12V3.4W | 92069A | 92069-1007 | 10 | ||
DAMPER RUBBER,MET FIT | 92075 | 25019-023 | 1 | ||
DAMPER,METER | 92075A | 92075-1149 | 2 | ||
DAMPER,METER FITTING | 92075B | 92075-1150 | 4 | ||
DAMPER,METER | 92075C | 92075-1192 | 4 | ||
DAMPER RUBBER | 92075D | 92075-1255 | 1 | ||
DAMPER RUBBER | 92075E | 92075-1256 | 1 | ||
BOLT-UPSET 6X14 | 110 | 112B0614 | 2 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 2 |
PLATE,SOCKET | |
REF # | 13169 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,SPEEDOMETER | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,TACHOMETER | |
REF # | 14025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,PILOT BOX LOWER | |
REF # | 14025B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,METER BRACKET | |
REF # | 14025C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,SPEEDOMET | |
REF # | 23008C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,PILOT BOX | |
REF # | 23008D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,TACHOMETE | |
REF # | 23008E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPEEDOMETER,MPH | |
REF # | 25005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | US |
SPEEDOMETER,MPH | |
REF # | 25005B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | US |
SPEEDOMETER KPH (Canada) | |
REF # | 25005C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CN |
BRACKET,METER | |
REF # | 25008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TACHOMETER | |
REF # | 25015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,PILOT BOX UPPER | |
REF # | 25023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X10 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,CUNTERSNK,4X35 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-CAP,5MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BULB,12V3.4W | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,MET FIT | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,METER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,METER FITTING | |
REF # | 92075B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER,METER | |
REF # | 92075C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 92075D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 92075E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 110 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
