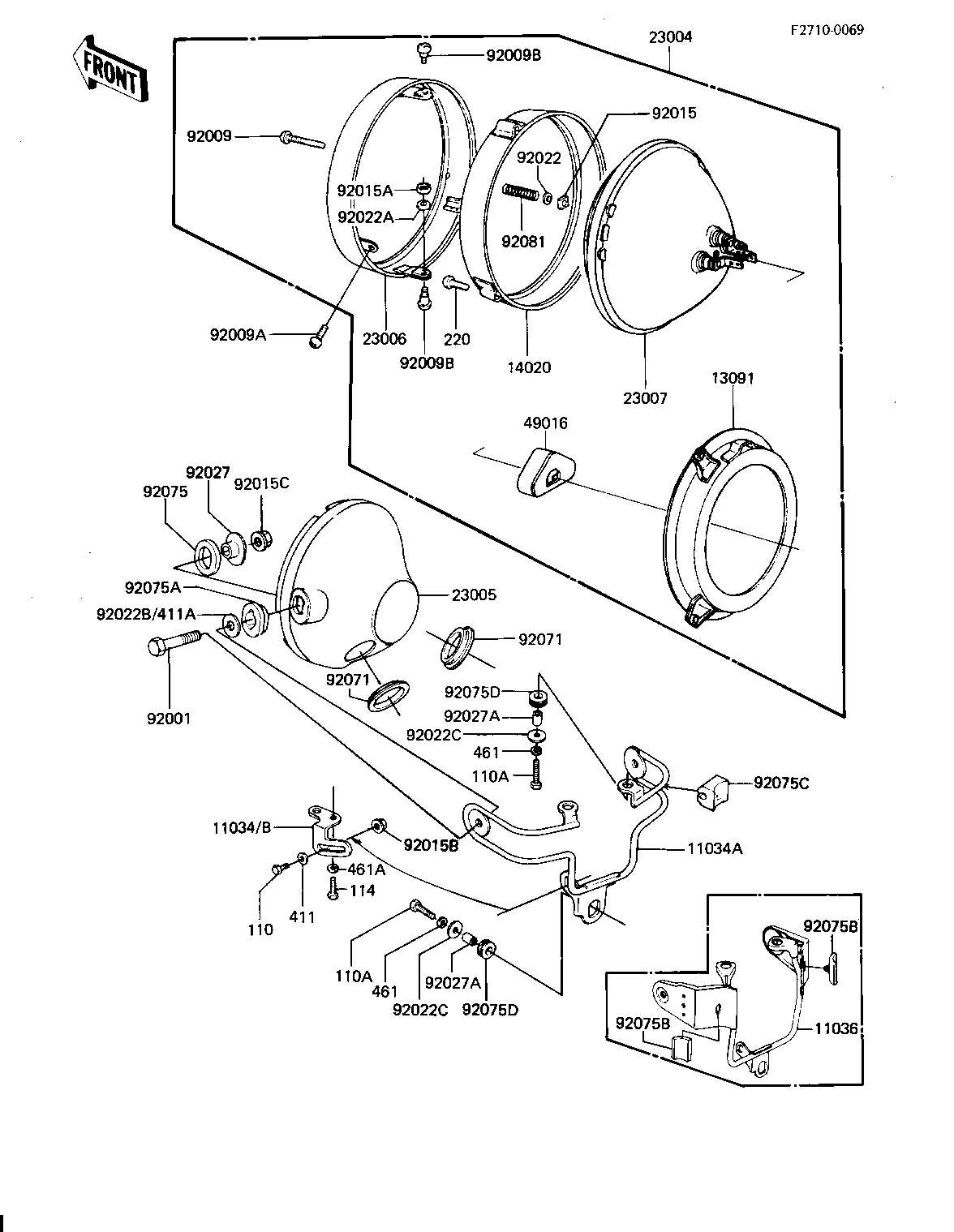

1982 CSR - HEADLIGHT ('81-'82 H1/H2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET, 11034B 11034-1792 1
BRACKET-A,HEAD LAMP 11036 11036-1173 1
RING,HEAD LAMP MOUNT 13091 23074-001 1
RING,HEAD LAMP MOUNT 14020 23072-001 1
LAMP-HEAD 23004 23004-1052 1
BODY-COMP-HEAD LAMP 23005 23005-1016 1
RIM,HEAD LAMP 23006 23006-038 1
SEALED BEAM UNIT 23007 23007-1006 1
DUST COVER,HEAD LAMP 49016 49016-1009 1
BOLT,10MM 92001 92007-024 2
SCREW FORCUS ADJUST 92009 23019-021 1
SCREW,PAN HEAD,5X14 92009A 23019-022 2
SCREW-PAN HEAD,5X12 92009B 23019-023 2
NUT,4MM 92015 23020-018 2
NUT,HEAD LAMP RIM FIT 92015A 23020-023 2
NUT-6MM 92015B 92015-1078 1
NUT,FLANGED,10MM 92015C 92015-1428 2
WASHER 92022 23021-004 1
WASHER-PLAIN,5MM 92022A 23021-012 2
WASHER 6.5X20X1.6T 92022C 92022-125 3
COLLAR,HEAD LIGHT 92027 23052-011 2
COLLAR,REAR FENDER 92027A 92027-162 3
GROMMET 92071 92071-1008 2
DAMPER RUBBER 92075 23066-021 2
DAMPER RUBBER 92075A 23066-022 2
DAMPER RUBBER 92075B 92075-1243 2
DAMPER RUBBER,RR FENR 92075D 92075-209 3
SPRING FOCUS ADJUST 92081 23014-005 1
BOLT-UPSET 6X14 110 112B0614 1
BOLT-UPSET 110A 112G0625 3
BOLT-SMALL-UPSET,8X16 114 115G0816 1
SCREW PAN HEAD 3X12 220 220B0312 2
WASHER PLAIN 6MM 411 411B0600 1
WASHER-PLAIN,10MM 411A 411D1000 2
WASHER SPRING 6MM 461 461F0600 3
WASHER SPRING 6MM 461A 461F0600 1
