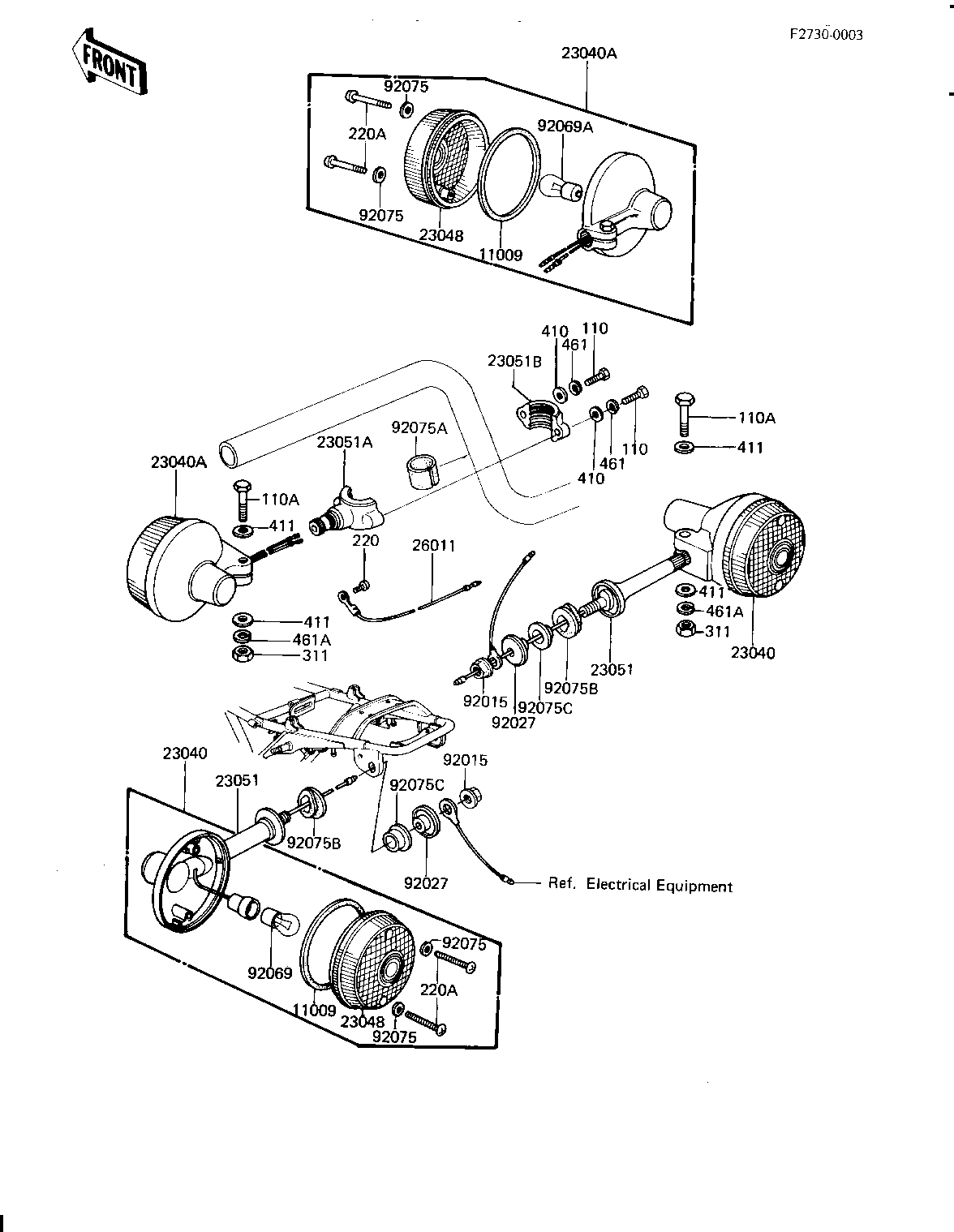

1982 CSR - TURN SIGNALS ('81-'82 H1/H2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-SIG LAMP LENS 11009 23050-003 4
LAMP,TURN SIGNAL 23040 23040-054 2
LAMP,FRNT,TURN SIGNAL 23040A 23040-1004 2
LENS,TURN SIGNAL LAMP 23048 23048-1001 4
BRACKET,TURN SIGNAL.L 23051 23051-053 2
BRACKET,FRNT TURN SIG 23051A 23051-1004 2
BRACKET,SIGNAL LAMP 23051B 23051-1013 2
WIRE-TURN SIGNAL LEAD 26011 26011-061 2
NUT,FLANGED,10MM 92015 92015-1428 2
COLLAR 92027 92027-147 2
BULB 12V 32CP 92069 92069-055 2
BULB,12V 23/8W 92069A 92069-060 2
WASHER-PLAIN,4MM 92075 23058-002 8
DAMPER RUBBER 92075A 23066-003 2
DAMPER RUBBER 92075B 92075-128 2
DAMPER RUBBER,SIG LM 92075C 92075-158 2
BOLT 110 110N0516 4
BOLT-UPSET 110A 112G0630 4
SCREW PAN HEAD 3X5 220 220B0305A 2
SCREW-PAN HEAD,4X20 220A 220E0420A 8
NUT 6MM 311 311B0600 4
WASHER-PLAIN,5MM 410 410D0500 4
WASHER PLAIN 6MM 411 411B0600 8
WASHER SPRING 5MM 461 461F0500 4
WASHER SPRING 6MM 461A 461F0600 4
