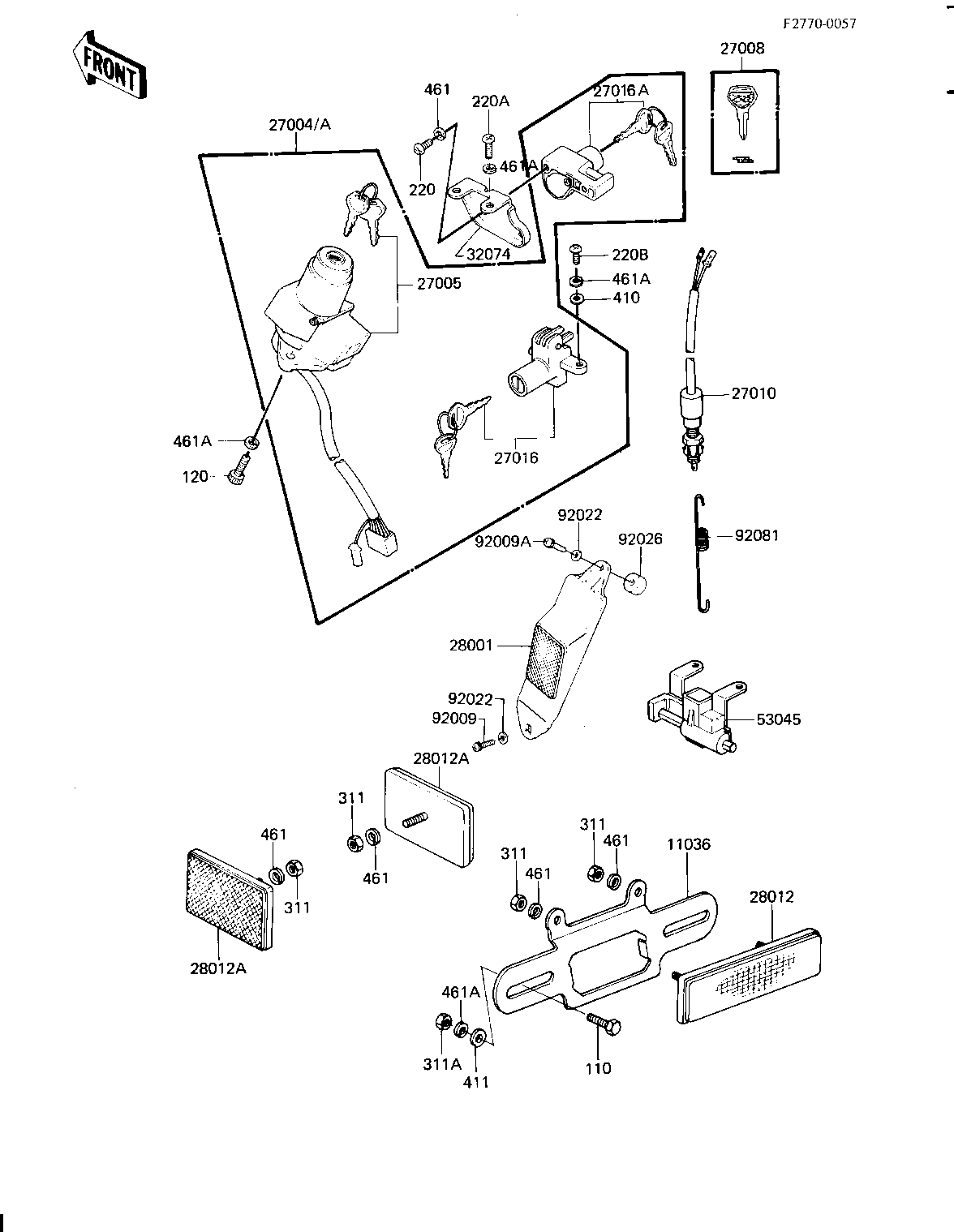

1982 CSR - IGNITION SWITCH/LOCKS/REFLECTORS ('81-'8
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,REFLECTOR,RR | 11036 | 11036-1150 | 1 | ||
SWITCH-ASSY | 27004A | 27004-5150 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-5024 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-1103 | 1 | ||
SWITCH,BRAKE LAMP | 27010 | 27010-1019 | 1 | ||
LOCK-ASSY,SEAT | 27016 | 27016-5010 | 1 | ||
LOCK ASSY,HELMET | 27016A | 27016-5038 | 1 | ||
REFLECTOR,REAR REFLEX | 28012 | 28012-1005 | 1 | ||
REFLECTOR-REFLEX | 28012A | 28012-1009 | 2 | ||
BRACKET-LOCK,HELMET | 32074 | 32074-1022 | 1 | ||
HOOK ASSY,HELMET | 53045 | 53045-1001 | 1 | ||
SPRING,BRAKE LIGHT SW | 92081 | 27011-015 | 1 | ||
BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
BOLT-SOCKET,6X16,BLAC | 120 | 120S0616 | 2 | ||
SCREW PAN HEAD 5X8 | 220 | 220B0508 | 2 | ||
SCREW PAN HEAD 6X12 | 220A | 220B0612 | 2 | ||
SCREW PAN HEAD 6X14 | 220B | 220B0614 | 1 | ||
NUT,5MM | 311 | 311B0500 | 4 | ||
NUT 6MM | 311A | 311B0600 | 2 | ||
WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
WASHER SPRING 5MM | 461 | 461F0500 | 6 | ||
WASHER SPRING 6MM | 461A | 461F0600 | 7 |
